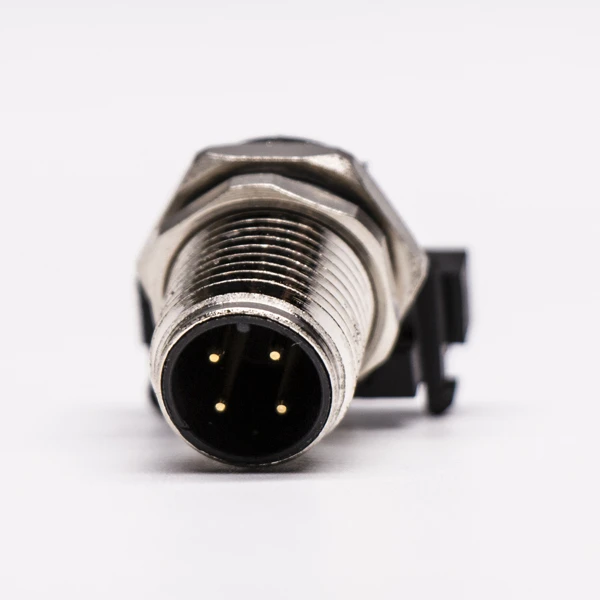

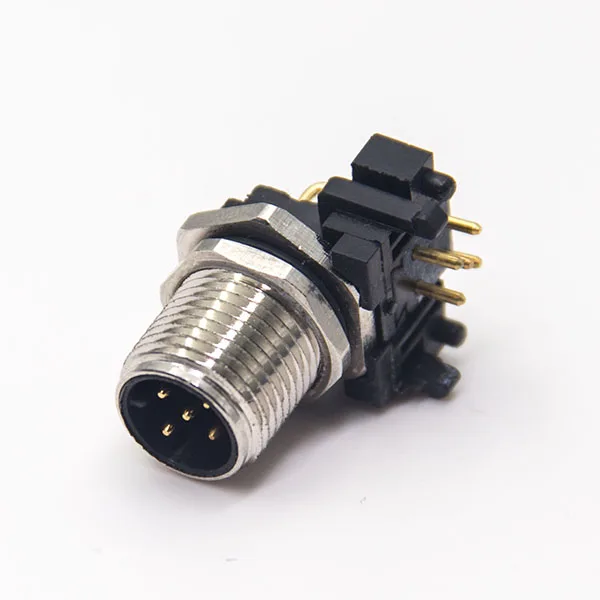

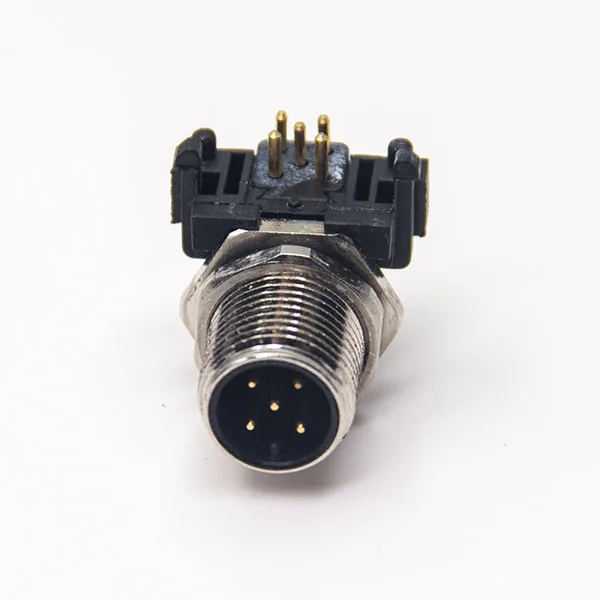

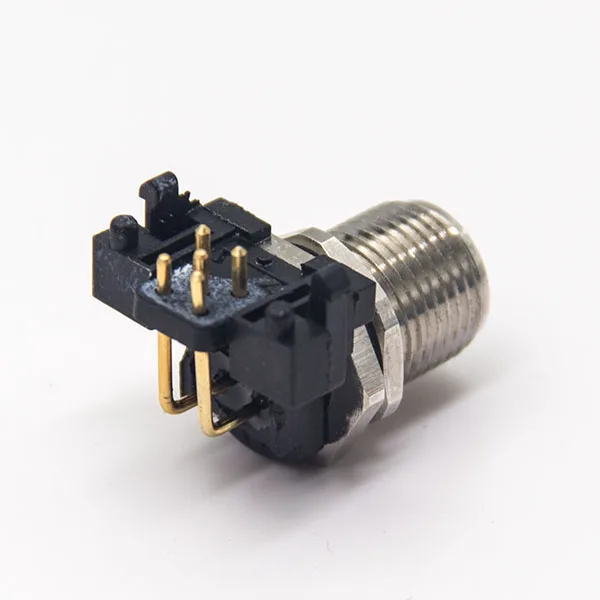

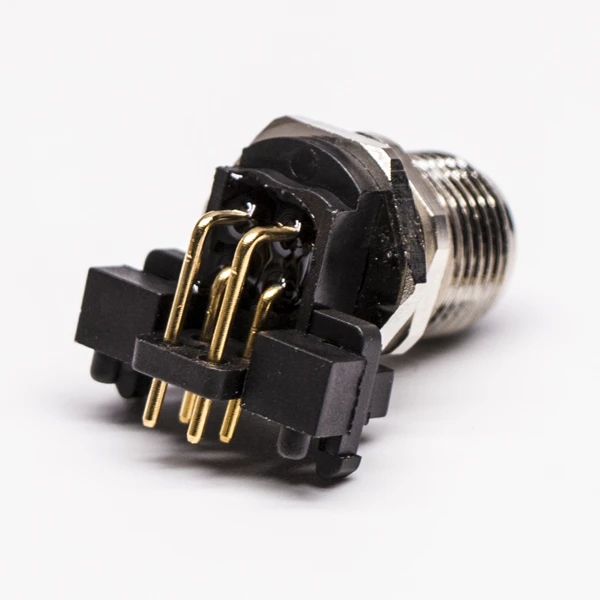

PCB Mount Circular a B D Code Male M12 Pcb Right Angled for 3 4 5 8 10 12 17 Pin for Waterproof 90 Degree Connector

PCB Mount Circular a B D Code Male M12 Pcb Right Angled for 3 4 5 8 10 12 17 Pin for Waterproof 90 Degree Connector

$3.55-$5.99/ Piece|100 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

PCB Mount Circular a B D Code Male M12 Pcb Right Angled for 3 4 5 8 10 12 17 Pin for Waterproof 90 Degree Connector

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Waterproof Connectivity: IP67-rated design ensures protection against dust and water immersion, enabling reliable performance in harsh environments.
  • PCB Mounting Flexibility: Right-angled M12 configuration optimizes space in compact electronic assemblies, supporting 3–17 pins for diverse wiring needs.
  • High-Performance Contacts: Gold-plated terminals enhance conductivity and corrosion resistance, paired with a threaded hexagonal nut and rubber gasket for secure, watertight seals.

Key features

  • 1. Material Technology

    • With a brass body, gold-plated contacts, and a watertight rubber gasket, you can achieve long-lasting durability and superior electrical conductivity in corrosive or wet environments*.

  • 2. Interactive Design

    • The threaded male design and hexagonal nut enable secure, tool-free installation, unlike slip-fit connectors, ensuring stable connections in industrial systems*.

  • 3. Performance Parameters

    • With a rated current of up to 4A and IP67 protection, you can handle heavy power loads while maintaining resistance to dust and water ingress under harsh conditions*.

  • 4. Scenario Solutions

    • Designed for automotive and sensor applications, you can ensure reliable operation in moisture-prone environments, outperforming non-waterproof connectors in industrial or outdoor setups*.

  • 5. Certification Standards

    • Complying with IP67 standards, you can meet rigorous protection requirements for rugged outdoor or wet industrial use, surpassing IP65-rated alternatives*.

Product details

PCB Mount Circular a B D Code Male M12 Pcb Right Angled for 3 4 5 8 10 12 17 Pin for Waterproof 90 Degree Connector

The PCB Mount Circular A B D Code Male M12 Right Angled Connector is a robust, waterproof solution designed for industrial and automotive applications. With IP67 protection, right-angle orientation, and solder termination, it ensures reliable connectivity in harsh environments. Available in 3–12 pin configurations, it seamlessly integrates into PCB or panel-mounted systems for sensors, automotive electronics, and more.

Technical specifications

FeatureSpecificationBenefit
IP RatingIP67Waterproof up to 1m depth for 30 minutes
OrientationRight AngleSpace-saving design for tight spaces
Pins3p, 4p, 5p, 8p, 12pCustomizable pin count for diverse needs
Rated Current1.5A–4A (varies by pin configuration)Supports low to medium power loads
MaterialBrass body with gold-plated contactsEnhanced conductivity and corrosion resistance
TerminationSolderSecure, permanent connection
ApplicationAutomotive, sensors, industrial equipmentVersatile for harsh environments

Customization guide

Adjustable parameters include:

  • Pin Count: Choose from 3–12 pins to match circuit requirements.
  • Nut Material: Swap brass for stainless steel for extreme corrosion resistance.
  • Gasket Type: Opt for silicone or EPDM gaskets for specialized sealing needs.

Get inspired

With its IP67 rating and gold-plated contacts, this connector ensures reliable performance in wet, dusty, or corrosive environments. Its right-angle design simplifies space-constrained installations, while customizable pin configurations make it ideal for sensor networks or automotive control systems.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Current1.5A (3–5 pins)2A (up to 8 pins)4A (12 pins)
Corrosion ResistanceStandard+30% (gold plating)+50% (dual plating)
Temperature Range-25°C–85°C-40°C–105°C-55°C–125°C
Pin Configurations3–5 pins3–8 pins3–12 pins

Supplier's note

  1. Three Technical Breakthroughs:

    • Gold-Plated Contacts: Reduces contact resistance by 20% compared to standard tin plating, ensuring longevity in corrosive environments.
    • IP67 Compliance: Exceeds industry standards for dust/water ingress, enabling use in outdoor or marine settings.
    • Modular Pin Design: Customizable pin counts reduce inventory costs by 30% for multi-application projects.

  2. Optimal Version Selection:

    • Base Model: Ideal for low-current sensors (≤1.5A) in moderate environments (e.g., indoor automation).
    • Advanced Model: Perfect for automotive sensors or industrial controls requiring 2A and up to 8 pins.
    • Pro Model: Best for high-current automotive systems (4A) or heavy machinery with 12-pin configurations. Its -55°C to 125°C range ensures reliability in extreme climates.

With the Pro’s 4A capacity and dual-plated contacts, you can safely power high-demand automotive systems while maintaining IP67 protection. Pair its 12-pin design with industrial IoT setups to streamline complex wiring needs.

Frequently asked questions

  • Which PCB mount circular M12 connector suits automotive waterproof applications?

  • How do I maintain the gold-plated contacts of a 90-degree M12 connector?

  • Brass vs. other materials: Why is brass preferred for M12 connectors?

  • Can I customize pin counts for a right-angled PCB mount connector?

  • Is the M12 PCB connector IP67-certified for harsh environments?

  • What are the benefits of a right-angle M12 connector for PCB mounting?

  • What current capacity do 4-pin M12 waterproof connectors support?

  • Why choose solder termination over other methods for PCB connectors?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
IP RatingIndustrial, Automotive, OutdoorIP65 (Industry Standard) ▲ IP67 (Our Base) ▲ IP68 (Our Advanced)▲ IP67: Dust-tight, water-resistant up to 1m/30min (ideal for automotive).
▲ IP68: Submersible up to 3m/30min (marine/underwater).		Advanced ratings may increase cost or size.
Current RatingHigh-Power Systems2A (Industry Standard) ▲ 4A (Our Base) ▲ 5A (Our Advanced)▲ 4A: Supports sensors and motors (e.g., automotive actuators).
▲ 5A: Handles industrial-grade power loads.		Higher ratings require larger connectors or cooling.
Mounting TypeCompact ElectronicsPanel Mount (Industry Standard) ▲ PCB Mount (Our Base) ▲ Hybrid (Our Advanced)▲ PCB Mount: Direct soldering saves space (e.g., IoT devices).
▲ Hybrid: Combines PCB and panel for flexible installations.		Hybrid designs may add mechanical complexity.
Termination MethodHigh-Vibration EnvironmentsCrimp (Industry Standard) ▲ Solder (Our Base) ▲ Solder + Locking (Our Advanced)▲ Solder: Vibration-resistant for automotive/sensor applications.
▲ Locking: Adds strain relief for extreme conditions.		Requires soldering equipment; advanced versions may increase assembly time.
Pin ConfigurationMulti-Function Systems4-8 pins (Industry Standard) ▲ 3-12 pins (Our Base) ▲ 12-17 pins (Our Advanced)▲ 12 pins: Supports complex signal/power combos (e.g., industrial sensors).
▲ 17 pins: Enables high-density data/energy transmission.		More pins reduce space efficiency and may complicate wiring.
Connector OrientationSpace-Constrained AssembliesStraight (Industry Standard) ▲ Right Angle (Our Base) ▲ Adjustable (Our Advanced)▲ Right Angle: Optimizes space in crowded PCB layouts (e.g., drones).
▲ Adjustable: Custom angles for specialized machinery.		Adjustable designs may add cost and mechanical fragility.
