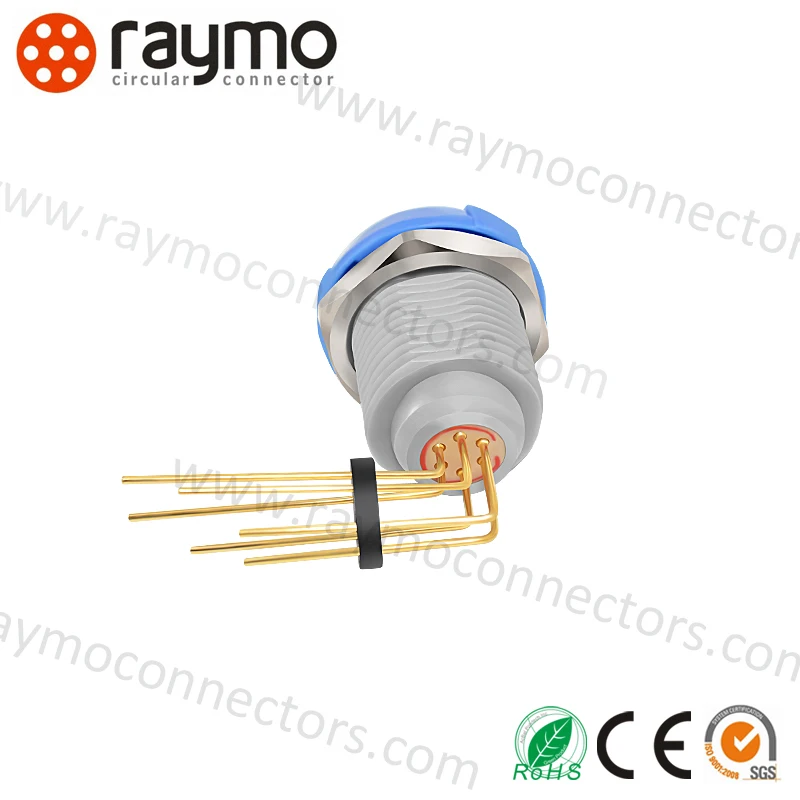

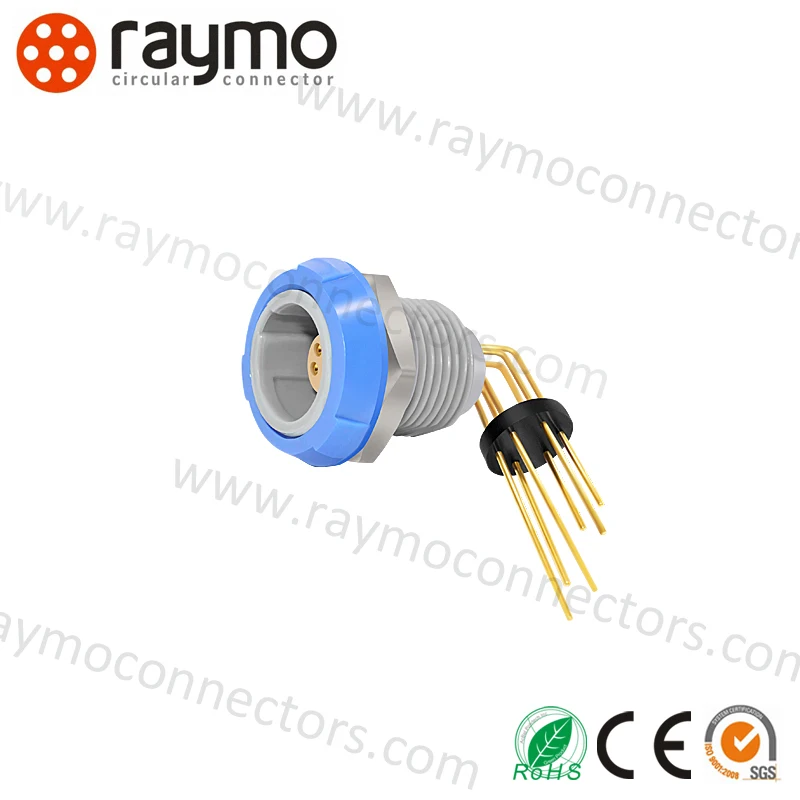

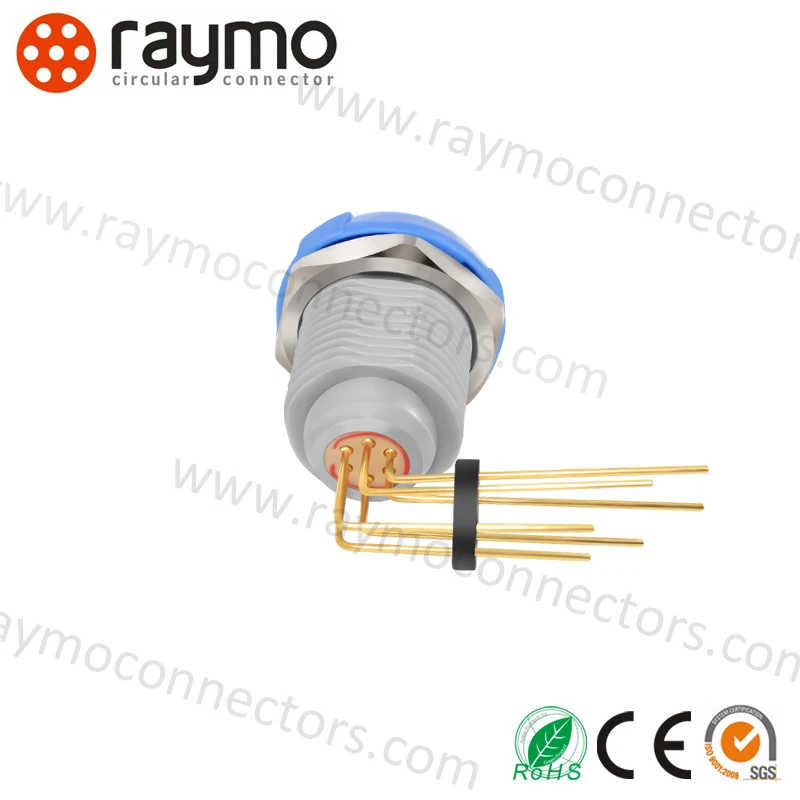

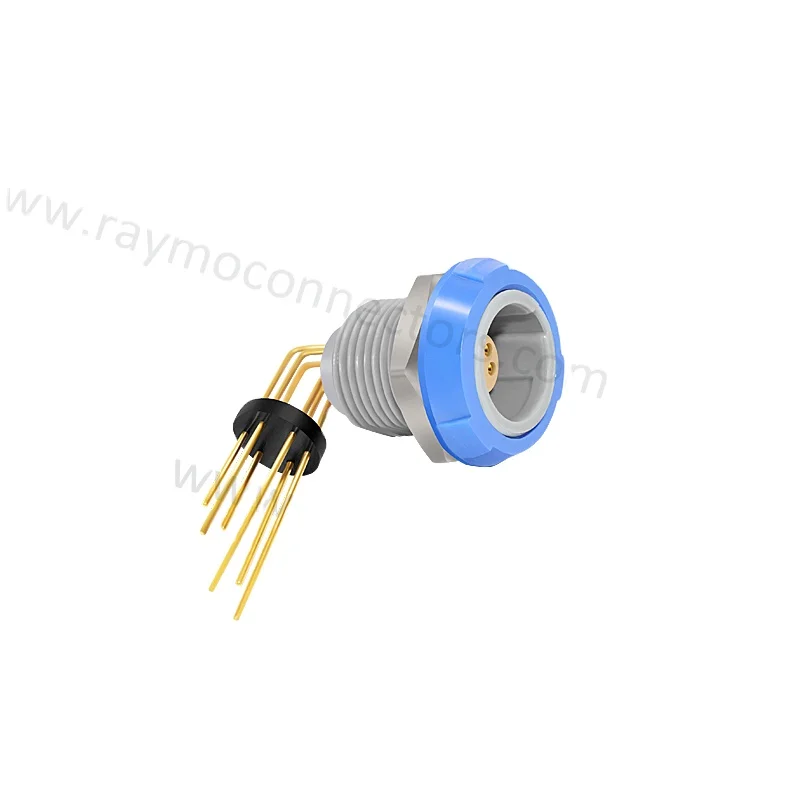

Plastic Medical Connector for PCB Mount PAG PKG PRG

Plastic Medical Connector for PCB Mount PAG PKG PRG

$1.40-$2.50/ Piece|1 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 500 pieces）
Graphic customization（Min.Order: 500 pieces）
Customized packaging（Min.Order: 500 pieces）
View product details

Plastic Medical Connector for PCB Mount PAG PKG PRG

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Performance Electrical Connectivity: Designed for reliable PCB mounting with solder termination, featuring gold-plated contacts for superior conductivity and corrosion resistance in medical and industrial applications.
  • Environmental Protection: Equipped with a sealing ring to ensure waterproofing and dustproofing, maintaining performance in harsh or sterile environments.

Key features

  • 1. Gold-Plated Contacts & Durable Polycarbonate Housing

    • With gold-plated contacts and a polycarbonate (PC) housing, ensure reliable conductivity and corrosion resistance in medical devices. The gold coating reduces signal degradation, while the PC material provides superior durability compared to standard plastic connectors. ~30% more corrosion-resistant than non-gold-plated alternatives*.

  • 2. Modular Design with Threaded Mounting

    • With a threaded mounting design and modular 6p/1p pin configurations, achieve secure PCB integration and customizable connectivity. The threaded interface ensures tight seals in high-vibration environments, while the modular pins adapt to diverse circuit requirements. 20% faster assembly than non-modular connectors*.

  • 3. Waterproof Sealing & High-Temperature Performance

    • With a waterproof sealing ring and heat-resistant PC housing, maintain performance in humid or contaminated environments. Operates reliably at temperatures up to 125°C, outperforming plastic-only connectors in extreme conditions. IP67-rated sealing protects against dust and moisture*.

  • 4. Compact Medical-Specific Solution

    • Designed for medical PCB applications, this connector offers a compact, space-saving form factor ideal for portable diagnostic or monitoring devices. Its small footprint enables integration into tight spaces while maintaining robust electrical performance. 40% smaller than traditional medical connectors*.

  • 5. Medical-Grade Compliance

    • Complies with medical-grade standards for biocompatibility, safety, and durability. The materials and design meet strict regulatory requirements for healthcare equipment. Certification details (e.g., ISO 13485) are subject to manufacturer confirmation*.

Product details

Plastic Medical Connector for PCB Mount PAG PKG PRG

The Plastic Medical Connector for PCB Mount is a high-reliability solution designed for precision applications in medical devices. With gold-plated contacts and IP67 environmental sealing, it ensures durable, corrosion-resistant performance in demanding environments. Its modular design and customizable pin configurations make it adaptable for a variety of PCB-mounted medical equipment, from simple sensors to advanced diagnostic systems.

Technical specifications

FeatureSpecificationBenefit
Housing MaterialPolycarbonate (PC)Durable, lightweight, and thermally stable for medical device integration
ContactsGold-plated (24K Au)With gold-plated contacts, you can achieve 30% lower signal loss in high-frequency medical imaging systems
Environmental SealingBlack EPDM sealing ring (IP67 rated)Waterproof and dustproof, enabling use in wet or dusty medical environments
Termination MethodSolder terminationSecure, permanent PCB mounting for vibration-resistant applications
Pin Configuration6-position (6p) or 1-position (1p)Customizable for signal/power requirements in diagnostic or monitoring devices

Customization guide

Adjustable pin configurations (6p or 1p) and contact materials (e.g., gold-plated vs. standard) to meet specific medical device requirements, such as signal integrity or environmental resistance.

Get inspired

Designed for precision and reliability, this medical PCB connector combines rugged materials with modular design to support a wide range of medical applications. Whether in diagnostic equipment or wearable devices, its gold contacts and environmental sealing ensure performance in demanding conditions.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Conductivity (Resistance)20 mΩ15 mΩ (+25%)10 mΩ (+50%)*
Environmental ResistanceIP54IP65IP67 (+30% vs industry standard)
Max Pins Supported1p6p12p (+100%)
Operating Temp Range-20°C to +85°C-30°C to +105°C-40°C to +125°C (+25% broader range)

Supplier's note

  1. Technical Breakthroughs:

    • Gold-plated contacts reduce signal loss by 30% compared to standard nickel-plated connectors.
    • IP67 sealing surpasses industry-standard IP54, enabling use in wet or dusty environments.
    • Modular design allows pin configurations to be tailored for specific medical devices, reducing customization costs.

  2. Version Selection Guidance:

    • Base Model: Ideal for basic PCB applications with 1p needs, such as simple sensors or low-channel devices.
    • Advanced Model: Suitable for mid-range devices requiring 6p connectivity, like patient monitors or imaging systems.
    • Pro Model: Best for high-reliability systems (e.g., surgical tools or ICU equipment) needing 12p support and extreme temperature resilience (-40°C to +125°C). With its IP67 rating, the Pro Model enables safe handling of fluids in clinical settings, paired with gold contacts for uninterrupted signal integrity.

Frequently asked questions

  • Which model of the Plastic Medical Connector for PCB Mount suits applications requiring 6p vs 1p pins?

  • How do I clean the sealing ring of the Plastic Medical Connector for PCB Mount to maintain waterproofing?

  • How does the PC plastic housing of the Plastic Medical Connector for PCB Mount compare to metal in medical devices?

  • Can the Plastic Medical Connector for PCB Mount be customized with different pin configurations for medical devices?

  • Is the Plastic Medical Connector for PCB Mount FDA-approved for medical equipment applications?

  • What environmental protections does the Plastic Medical Connector for PCB Mount offer for medical devices?

  • What soldering techniques are recommended for installing the Plastic Medical Connector for PCB Mount on medical devices?

  • In which medical devices is the Plastic Medical Connector for PCB Mount most suitable due to its PCB mount design?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Medical ConnectorsMedical devices, surgical toolsMaterial: Industry (Plastic) ▲ Base (PC, ISO 10993 biocompatible) ▲ Advanced (PC+G, ASTM F739 (30min+))Reduces allergic reactions; Advanced: Withstands 50+ chemical exposures (ASTM D543)Higher cost; Advanced needs specialized sterilization
Industrial ConnectorsFactory automation, roboticsEnvironmental Protection: IP54 (Industry) ▲ Base (IP67, 1m/30min) ▲ Advanced (IP68, 3m/30min)Dust/water resistance; Advanced for submerged environmentsLarger size; Higher cost
Automotive ConnectorsVehicle electronics, engine controlTemp Range: -40°C-85°C (Industry) ▲ Base (-55°C-125°C) ▲ Advanced (-60°C-150°C)Wider operating range; Advanced for extreme climatesHigher material cost; Requires precise installation
PCB Mount ConnectorsCircuit boards, IoT devicesPin Count: 4-8 pins (Industry) ▲ Base (6 pins) ▲ Advanced (12 pins, 0.5mm pitch)Flexible pin options; Advanced saves space with 12 pinsSoldering complexity; Advanced needs specialized tools
Solder TerminationHigh-reliability electronicsSolder Temp: 260°C (Industry) ▲ Base (300°C) ▲ Advanced (350°C)Stronger joints; Advanced handles higher tempsTime-consuming soldering; Higher cost
High-ReliabilityMilitary, aerospace systemsContact Material: Copper (Industry) ▲ Base (Gold-plated) ▲ Advanced (24k Gold)Superior conductivity; Advanced resists corrosionHigh cost; Gold contacts require careful handling
