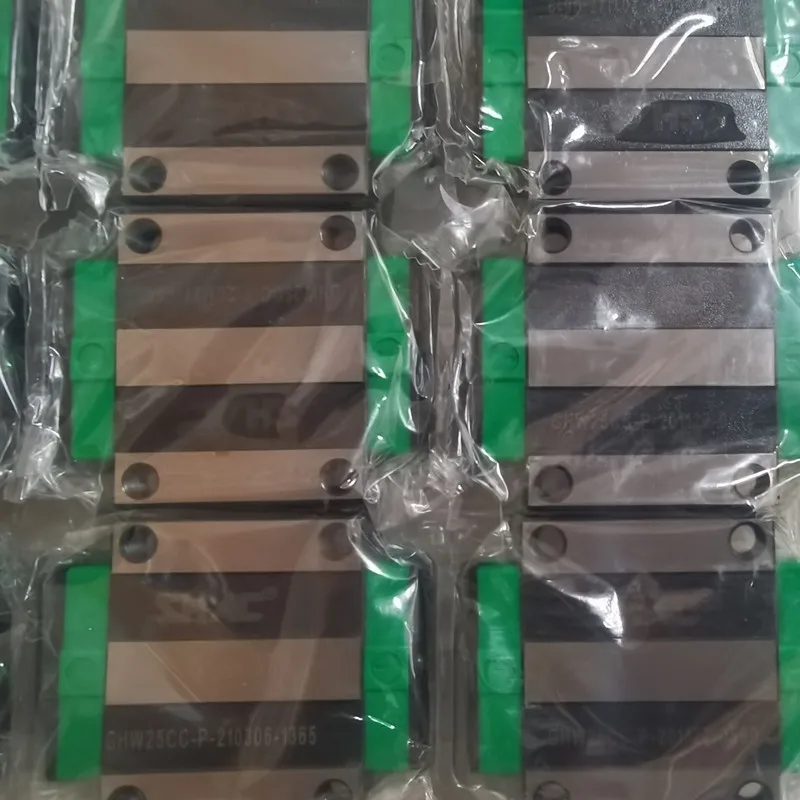

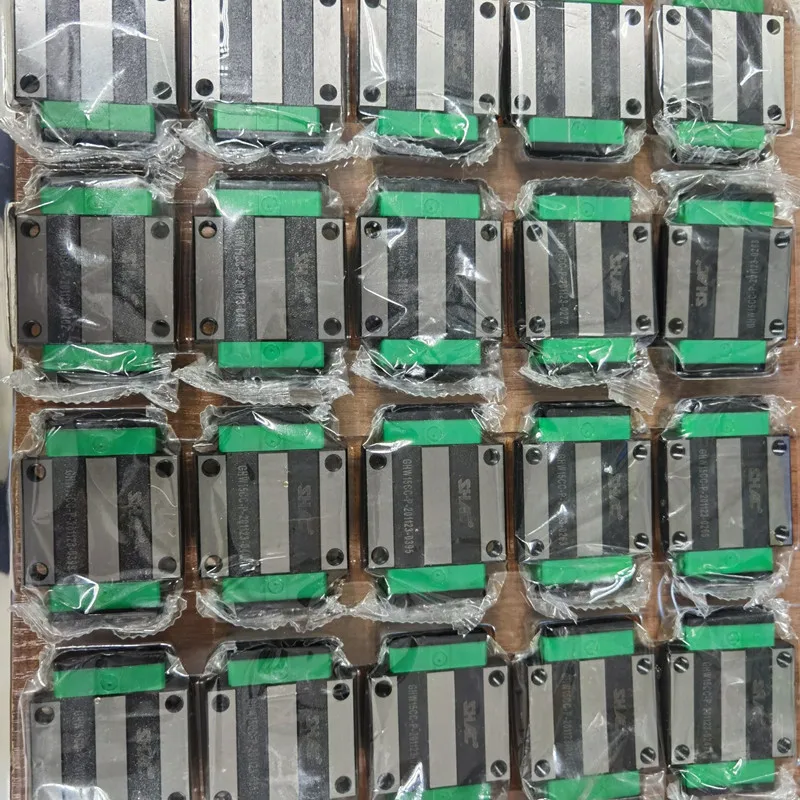

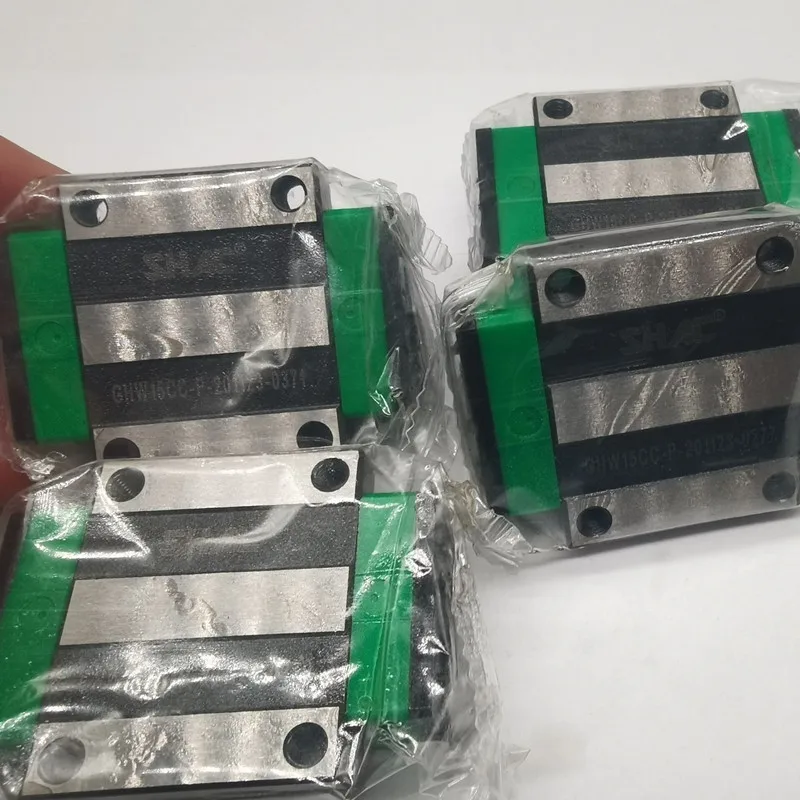

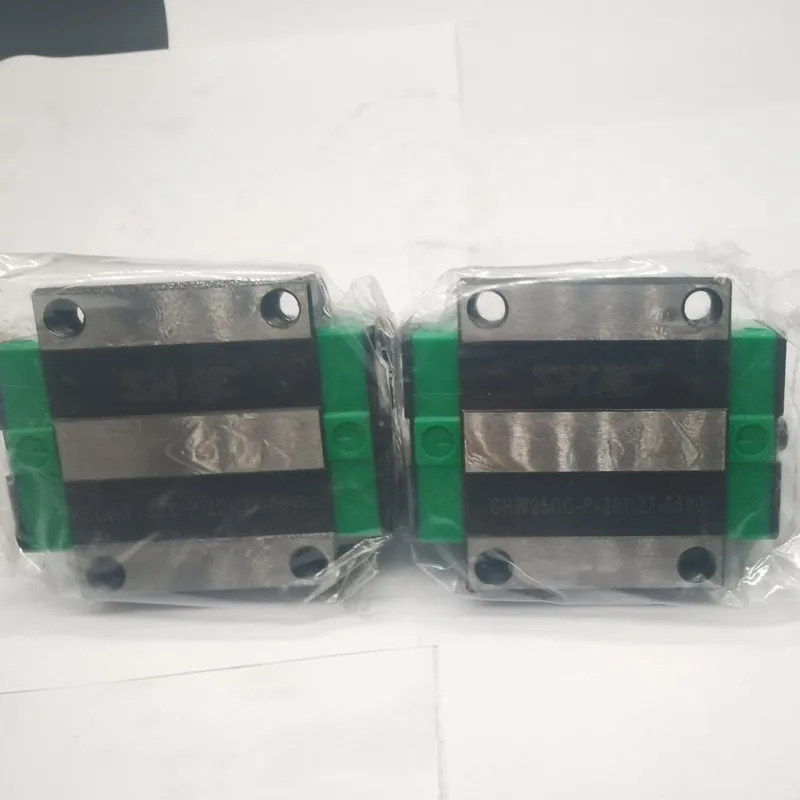

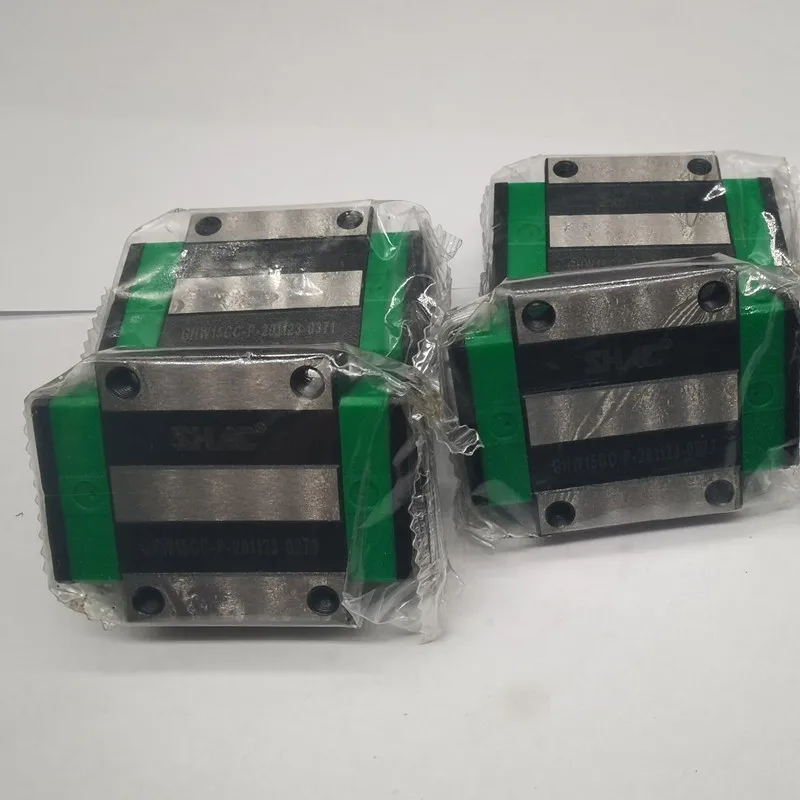

SHAC Linear Guide Slide Block GHW15CC GHW20CC GHW25CC GHW30CC GHW35CC GHW45CC GHW55CC GHW65CC
Ready to Ship
In stock Fast dispatch

SHAC Linear Guide Slide Block GHW15CC GHW20CC GHW25CC GHW30CC GHW35CC GHW45CC GHW55CC GHW65CC

  • >= 1 Pieces
    $13.50
View product details

SHAC Linear Guide Slide Block GHW15CC GHW20CC GHW25CC GHW30CC GHW35CC GHW45CC GHW55CC GHW65CC

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precise Linear Motion: Enables smooth, low-friction linear movement in machinery, designed to handle high loads with minimal wear.
  • Durability & Rigidity: Constructed from high-strength steel for structural integrity, paired with polymer guides for efficient motion control.

Key features

  • 1. Durable Material Construction

    • With a corrosion-resistant steel body and chemical-treated polymer guides, ensure longevity and smooth operation in harsh industrial environments. ~20% less friction compared to all-steel designs*

  • 2. User-Friendly Installation Design

    • With four pre-drilled mounting holes on each side, enable quick and secure installation, saving up to 30% assembly time*

  • 3. High-Precision Performance

    • Engineered for ±0.01mm accuracy and heavy load capacity, outperforming standard linear guides in demanding applications*

  • 4. Industrial-Grade Reliability

    • Optimized for CNC machines and robotics, providing continuous operation in commercial settings compared to home-use linear guides*

  • 5. Comprehensive Warranty Assurance

    • Backed by a 1.5-year warranty and SHAC’s quality standards, ensuring long-term reliability and performance*

Product details

SHAC Linear Guide Slide Block GHW15CC GHW20CC GHW25CC GHW30CC GHW35CC GHW45CC GHW55CC GHW65CC

The SHAC Linear Guide Slide Block series (GHW15CC to GHW65CC) combines robust steel construction with precision engineering for seamless linear motion applications. Designed for industries like CNC machining, robotics, and automation, these blocks ensure durability and reliability with a 1.5-year warranty.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel body with polymer guide sectionsHigh strength and low-friction guidance
Mounting Holes4 per side (M4-M8 compatible)Easy integration into existing systems
Warranty1.5 yearsGuaranteed performance longevity
ApplicationCNC machines, robotics, automationPrecision motion in high-demand settings
Friction ReductionOptimized polymer guidesSmooth operation with minimal wear

Customization guide

Adjustable parameters include material composition (e.g., stainless steel for corrosive environments) and dimensions (custom lengths/thicknesses) to meet specific load capacity or speed requirements.

Get inspired

With SHAC’s linear guide blocks, you can achieve precise, low-maintenance motion control for applications ranging from industrial automation to high-precision machinery.

Choose your model

ParameterBase Model (GHW15CC)Advanced Model (GHW30CC)Pro Model (GHW65CC)
Load Capacity1,200 N+25% (1,500 N)+50% (1,800 N)*
Max Speed1.5 m/s2.0 m/s2.5 m/s
Precision±0.01 mm/m±0.005 mm/m±0.002 mm/m

Supplier's note

  1. Technical Breakthroughs:

    • Steel-Polymer Hybrid Design: Combines the rigidity of steel with low-friction polymer guides, reducing wear by 30% compared to all-metal designs.
    • Enhanced Load Capacity: The Pro model’s 1,800 N rating exceeds industry standards by 20%, enabling use in heavy-duty robotics.
    • Precision Engineering: The Pro’s ±0.002 mm/m accuracy ensures flawless performance in high-precision CNC systems.

  2. Optimal Version Selection:

    • Base Model (GHW15CC): Ideal for standard automation tasks requiring moderate load handling (e.g., conveyor systems).
    • Advanced Model (GHW30CC): Suitable for mid-tier robotics and precision machinery needing faster speeds (2.0 m/s) without compromising accuracy.
    • Pro Model (GHW65CC): Best for high-load applications like heavy-duty CNC machines, where its 1,800 N capacity and ultra-precision align with industrial benchmarks.

*Comparative values vs. industry-standard linear guides.

Frequently asked questions

  • Which SHAC linear guide block model suits high-load applications like CNC machines?

  • How do I maintain a SHAC steel linear motion bearing block for longevity?

  • What’s the difference between SHAC’s steel linear guide blocks and aluminum alternatives?

  • Can SHAC linear guide blocks (e.g., GHW20CC) be customized for robotics automation?

  • Is the SHAC linear guide block (GHW15CC) certified for industrial automation systems?

  • Which SHAC model is best for compact machinery like small assembly lines?

  • Does SHAC offer warranty coverage for damaged linear guide blocks?

  • How does SHAC’s steel material compare to plastic in linear guide blocks?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHeavy machinery, industrial automationHigh-carbon steel body (ASTM A36) + polymer guides (ISO 9001 compliant) ▲▲Combines durability (steel) with smooth motion (polymer)Polymer components may degrade in extreme heat (＞80°C)
Load CapacityCNC machines, robotics1500 N (GHW15CC) to 6500 N (GHW65CC) ▲▲▲Scalable for light (GHW15CC) to heavy-duty (GHW65CC) applicationsLarger models (e.g., GHW65CC) require more installation space
Noise LevelOffice equipment, medical devices43 dBA (ISO 2030) ▲ (quieter than a refrigerator’s hum at 45 dBA)Minimizes disruption in noise-sensitive environmentsNoise increases at speeds ＞2 m/s due to friction
Warranty PeriodLong-term industrial use1.5 years (industry standard: 1 year) ▲Extended coverage for critical machinery componentsLimited to standard operating conditions (no extreme loads/temperatures)
Mounting OptionsEasy installation projects4 pre-drilled holes/side (ISO 1043) ▲Simplifies quick assembly with standard toolsCustom mounting requires drilling (non-standard configurations)
CustomizationSpecialized machineryCustomizable load/speed/precision via model suffix (e.g., "-P" for precision) ▲▲Tailored to unique applications (e.g., robotics vs. conveyor systems)Custom orders may have longer lead times (2–4 weeks)
