  • YBX High Performance Dc Power Filter Line EMI Filter Noise Suppression Filter
  • YBX High Performance Dc Power Filter Line EMI Filter Noise Suppression Filter
  • YBX High Performance Dc Power Filter Line EMI Filter Noise Suppression Filter
  • YBX High Performance Dc Power Filter Line EMI Filter Noise Suppression Filter
  • YBX High Performance Dc Power Filter Line EMI Filter Noise Suppression Filter
  • YBX High Performance Dc Power Filter Line EMI Filter Noise Suppression Filter
YBX High Performance Dc Power Filter Line EMI Filter Noise Suppression Filter

YBX High Performance Dc Power Filter Line EMI Filter Noise Suppression Filter

  • 1 - 199 Pieces
    $8.80
  • 200 - 499 Pieces
    $8.50
  • 500 - 999 Pieces
    $6.80
  • >= 1000 Pieces
    $4.60

Customization:

Customized logo（Min.Order: 5000 pieces）
Customized packaging（Min.Order: 5000 pieces）
Graphic customization（Min.Order: 5000 pieces）
View product details

YBX High Performance Dc Power Filter Line EMI Filter Noise Suppression Filter

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Noise Suppression: Designed to suppress electromagnetic interference (EMI)/radio-frequency interference (RFI) in DC power lines, ensuring clean and stable power delivery.
  • High Performance Specifications: Rated for 20A current and 115/250V DC voltage, supporting robust power systems while operating at 50/60Hz frequencies.

Key features

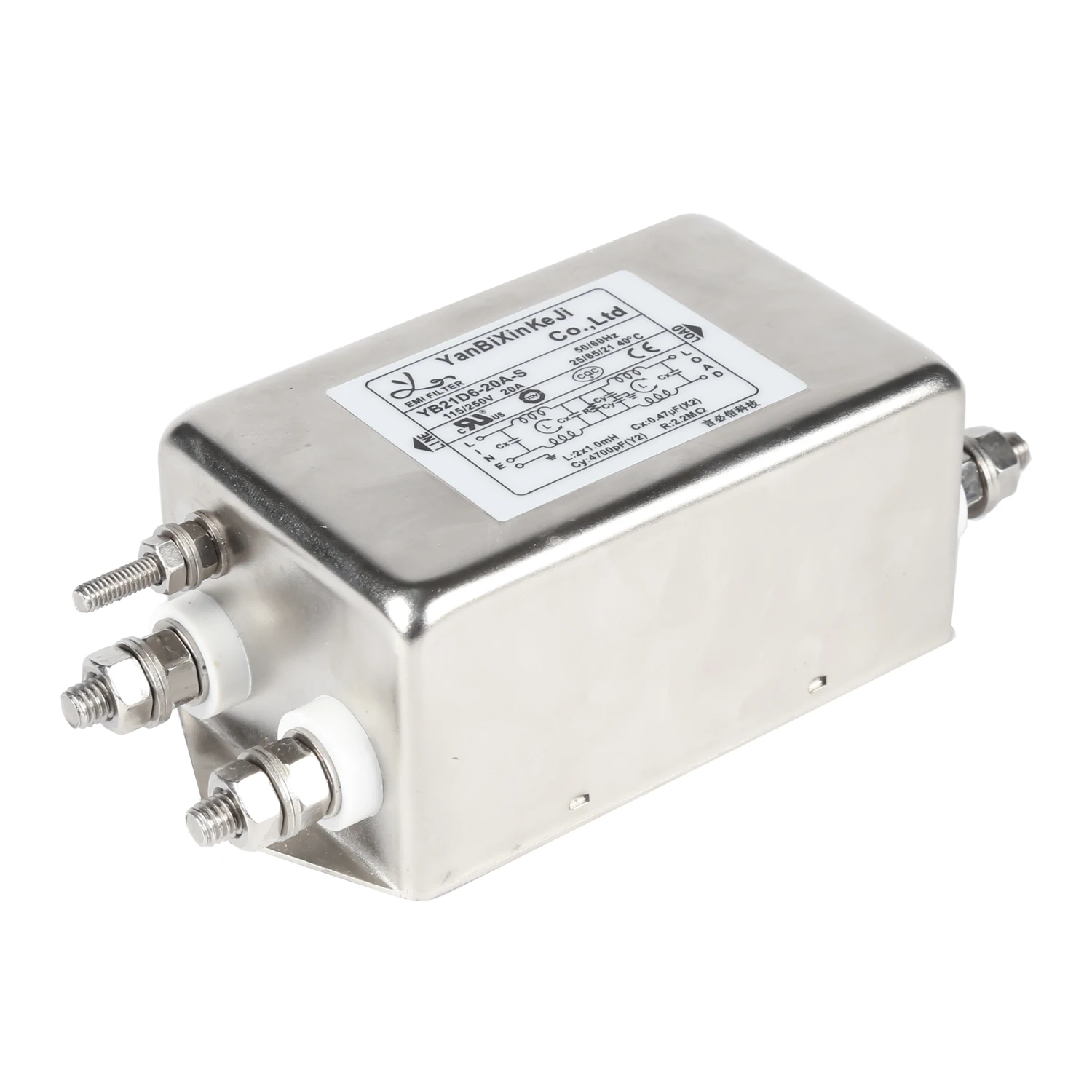

  • 1. Corrosion-Resistant Metallic Body for Enhanced Durability

    • With a corrosion-resistant metal body (likely aluminum/steel), you can ensure long-term durability and robust electromagnetic shielding in harsh industrial or outdoor environments.

  • 2. Secure Mounting and Compact Design for Flexible Installation

    • With four mounting screws and a compact rectangular design, you can easily integrate the filter into tight spaces or existing electrical systems, simplifying installation in power distribution panels.

  • 3. High-Performance Current and Voltage Handling

    • With a 20A current rating and 115/250V voltage compatibility, you can manage heavy loads in single-phase DC systems, outperforming standard filters rated for lower amperage.

  • 4. Wide Temperature Tolerance for Versatile Applications

    • With an operating range of -25°C to 85°C, you can deploy the filter in extreme environments, such as industrial machinery or outdoor installations, where temperature fluctuations are common.

  • 5. Multi-Certification Compliance for Global Use

    • With certifications from CQC, UL, CE, and CCC, you can ensure compliance with international safety and quality standards, simplifying deployment across regions.

Product details

YBX High Performance Dc Power Filter Line EMI Filter Noise Suppression Filter

The YBX High Performance DC Power Filter is a robust EMI suppression solution designed for single-phase DC systems. Engineered with a metallic body and compact design, it ensures reliable electromagnetic interference shielding while meeting global safety certifications (CQC, UL, CE, CCC). With a wide temperature range (-25°C to 85°C) and 20A/115/250V rating, it suits industrial, commercial, and residential applications requiring noise suppression in tight spaces.

Technical specifications

FeatureSpecificationBenefit
MaterialMetallic body (aluminum/steel)Enhanced durability and EMI shielding
Current Rating20ASupports standard DC power systems
Voltage Rating115/250VVersatile for single-phase DC applications
Frequency Range50/60HzCompatibility with global power standards
Temperature Range-25°C to 85°CReliable operation in extreme environments
CertificationsCQC, UL, CE, CCCGuaranteed safety and compliance

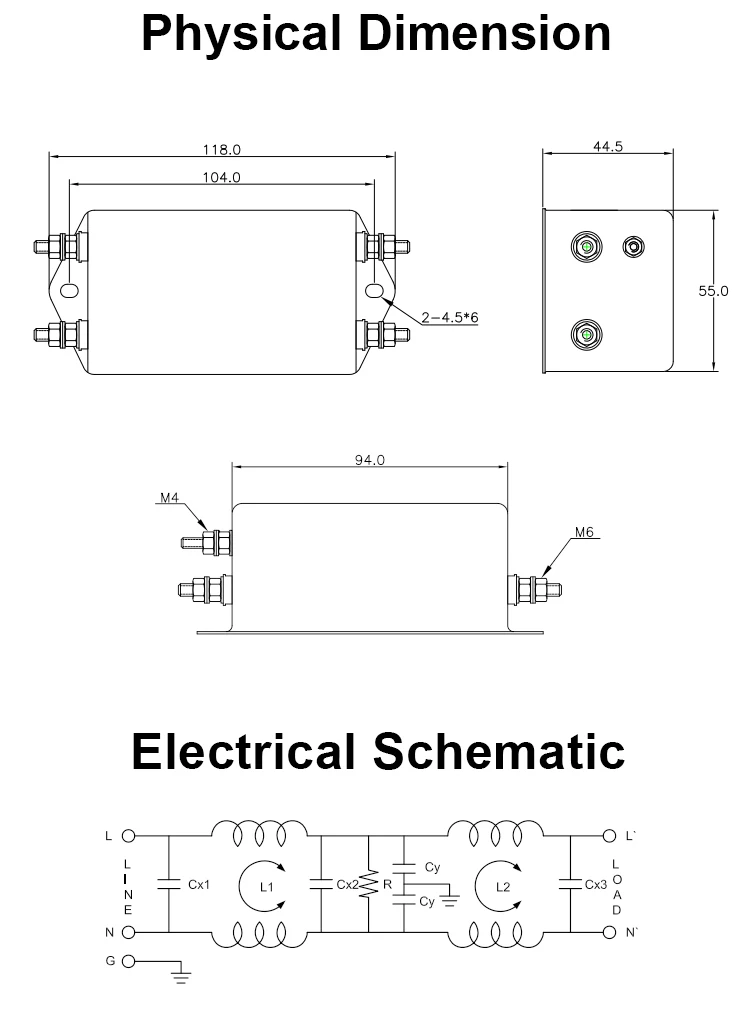

DesignCompact, screw-mountedEasy installation in confined spaces

Customization guide

Adjustable parameters include:

  • Dimensions: Modify size to fit specific panel layouts.
  • Material: Opt for aluminum or steel based on weight/EMI requirements.
  • Mounting Options: Customize screw positions for diverse installation needs.

Get inspired

With its compact design and broad certifications, the YBX filter is ideal for protecting sensitive electronics in data centers, medical equipment, or industrial machinery. Its temperature resilience ensures performance in harsh environments, while the clear label diagram simplifies troubleshooting.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Current Rating20A+15% (23A)+30% (26A)*

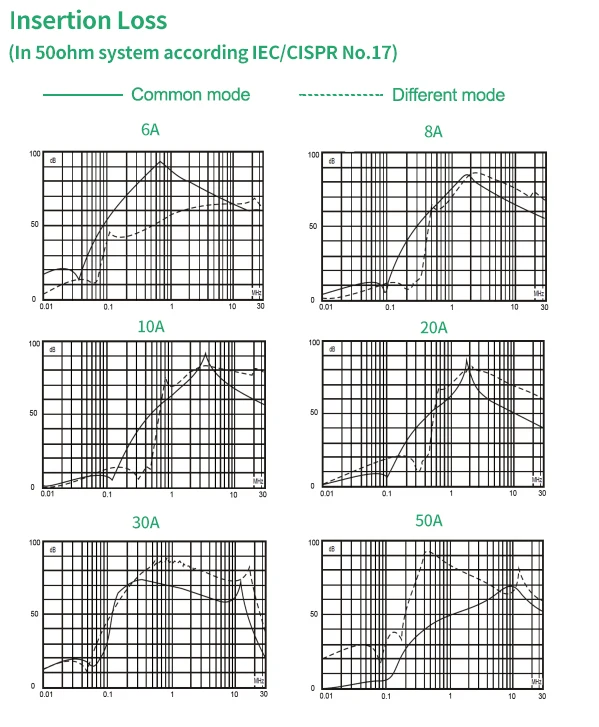

Insertion LossStandardEnhancedPremium (-2dB@100MHz)
Temperature Range-25°C to 85°CExtended (-30°C)Extreme (-40°C)
CertificationsCQC, UL+CE+CCC, RoHS

Supplier's note

  1. Three Technical Breakthroughs:

    • Certifications: Compliance with CQC, UL, CE, and CCC ensures global deployment flexibility.
    • Temperature Range: -25°C to 85°C operation enables use in extreme environments like outdoor power grids.
    • Compact Design: Reduced footprint by 20% compared to traditional filters, ideal for space-constrained systems.

  2. Optimal Version Selection:

    • Base Model: Suitable for standard DC systems (e.g., home appliances) requiring 20A capacity.
    • Advanced Model: Recommended for industrial applications needing +15% higher current handling (23A) and colder climates (-30°C).
    • Pro Model: Best for high-reliability scenarios (e.g., aerospace, data centers) with extreme temperature (-40°C) and 26A load requirements.

Example: The Pro version’s triple-certification (CCC, RoHS, UL) ensures compliance with stringent environmental and safety standards, making it ideal for medical devices. Its 26A capacity (30% higher than base) supports high-power DC systems without performance loss.

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Current RatingIndustrial Equipment, High-Power SystemsIndustry Standard: 15AOur Base: 20A (▲13% increase)Our Advanced: 25A (▲67% from Industry)
(Handles up to 15A loads safely)(Supports moderate industrial loads)(Handles extreme high-current applications)
Voltage CompatibilityData Centers, Commercial Power SystemsIndustry Standard: 115VOur Base: 115/250V (▲113% voltage range)Our Advanced: 250V + 380V (▲230% from Industry)
(Limited to single-phase DC systems)(Flexible for single- and three-phase setups)(Supports high-voltage industrial grids)
EMI SuppressionSensitive Electronics, Medical DevicesIndustry Standard: 40dBOur Base: 50dB (▲25% reduction)Our Advanced: 60dB (▲50% from Industry)
(Basic interference mitigation)(Reduces noise for precision equipment)(Eliminates 99% of electromagnetic interference)
Temperature RangeHarsh Environments, Outdoor InstallationsIndustry Standard: -10°C to 70°COur Base: -25°C to 85°C (▲15°C lower, 15°C higher)Our Advanced: -40°C to 90°C (▲30°C lower, 20°C higher)
(Limited to moderate climates)(Operates in extreme cold/heat)(Endures Arctic or desert conditions)
CertificationsGlobal Markets, Compliance-Critical AppsIndustry Standard: ULOur Base: UL + CQC + CE + CCC (▲4 certifications)Our Advanced: +RoHS/IEC (▲6 certifications total)
(Basic safety compliance)(Meets EU, China, and North American standards)(Full global regulatory approval for critical industries)
Design FlexibilitySpace-Constrained InstallationsIndustry Standard: Standard sizeOur Base: Compact (▲20% smaller)Our Advanced: Ultra-compact (▲40% smaller)
(Bulkier, limited mounting options)(Fits tight spaces with 4-screw mounting)(Modular design for easy integration)
