16bar check valves come in various types, each suited to specific operational requirements. These types include:

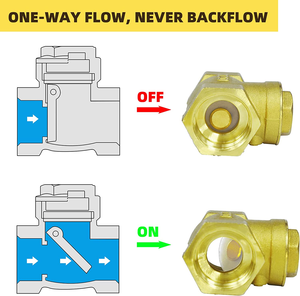

Swing Check Valve
This valve has a disc hinged to the valve seat, which swings to allow fluid passage and closes by swinging back into position when backflow occurs. Application in high flow areas such as pipelines and waterworks.
Tilting Disc Check Valve
Here, the valve disc tilts away from the seat to allow flow and tilts back to the seat on reduced pressure, offering low hydraulic resistance. Often used in water, oil, and gas service.
Lift Check Valve
This type operates similarly to a piston, with the disc or ball lifting off the seat to allow flow and falling back to close on backflow. It is used where backflow prevention is critical. The common use case is on pumps to prevent water.
Dual Plate Check Valve
It incorporates two plates that close together to prevent backflow, being lightweight and compact. Commonly used in pipelines where space and weight are critical.
Boll Check Valve
Check Valve suppliers note that it resembles a globe valve, with a disc that screws out to allow easy maintenance and replacement. It is used in the same applications as lift check valves but requires maintenance access.
The 16bar check valve has diverse unique features which include:
Reliable Backflow Prevention
One of the critical functions of a check valve is to prevent back pressure in the opposite flow. The 16bar check valve operates under high pressure and ensures the fluid indeed flows in only one direction to protect systems from damage.
Robust Construction
The 16bar check valve is typically made from stainless steel, brass, and cast iron to withstand extreme temperatures and the high pressure of 16bar. These materials also improve corrosion resistance for enhanced durability.
Versatile Applications
Due to its robust build, the check valve works well across various industries, including oil and gas, water and wastewater, and power generation. It can cater to different fluid types, not limited to liquids but including gases and steam.
Spring-Operated or Non-Spring Check Valves
Some 16bar check valves come with a spring reset to return the disc to its seat after the flow ceases and others don't. The spring-operated ones are used in low-pressure differential applications where the pipe pressure is insufficient to close the valve.
Low Maintenance
The check valves are designed with long-lasting materials, making them incredibly low maintenance. In addition, some models provide easy access for inspection and repair, reducing downtime in industrial operations.
To choose the right 16bar check valve for clients, consider the following parameters:
Fluid Type
The fluid's nature being pumped is critical, as the type of fluid determines the material to use. For instance, if the fluid contains chemicals that corrode steel, then a brass or bronze valve should be used.
Orifice Size
Various check valve types have distinct orifice sizes, which should match the pipeline size. This prevents pressure build-up or drop, which would cause inefficiencies or damage to the system.
Piping Configuration
The type of valve to use depends on the overall piping design. Consider slope angle, bends, elevation changes, and other physical elements. For example, a swing valve may not be ideal for horizontal piping; tilt disc is more appropriate.
Pressure Rating
Of course, the pressure rating must match the system. The 16bar check valve has a pressure rating of up to 16 bar; this means it can handle a maximum system pressure of 16 bar.
Temperature Range
It's important to know the fluid temperature since this influences the choice of valve materials for both the body and seat. High-temperature fluids require materials that can resist tensile. Failure near the seat or seating rings due to thermal degradation usually happens in high-temperature environments.
Maintenance and accessibility
Buyers should care about the maintenance procedures concerning the chosen check valve. Some models are more accessible than others. There are also those that require frequent replacements, which may not be convenient in large systems where space is an issue.
To ensure optimal performance, the 16bar check valve needs to be installed appropriately. Here's a simple guide on how to install it:
Choose the Right Location
The position where the check valve is installed depends on the overall system. It could be on a horizontal or vertical pipeline close to a pump outlet, on the riser of a vertical pipe, etc. Choosing the right location is vital because an ill-placed valve may impede system flow.
Preparation
Inspect the incoming fluid to ensure it has no large particles that can clog the valve. Then, the pipe should be measured to determine the right size valve. Get a compatible 16bar check valve for the pipeline or recommend one.
Direction of Flow
The flow direction arrow on the valve body should indicate fluid flow. To ensure proper installation and functioning, the check valve should be oriented according to the fluid flow.
Secure Installation
The 16bar check valve can be attached to the pipe using the following methods: welding, threaded connections, or flanged connections if the pipeline has a flanged design. After connecting, check for leaks by performing a pressure test.
Alignment and Support
To be sure, the valve has to be properly aligned with the pipe. If installed on vertical pipes, ensure it is supported properly so that gravity does not cause misalignment.
Final Checks
Once the installation is complete, the system should be slowly brought up to operational pressure while observing the valve for signs of leakage. If everything is okay, the valve should be functioning well and allowing one-way flow.
A1: These check valves are widely used in industries like oil and gas, chemical processes, water and wastewater treatment facilities, power plants, and building services where reliable backflow prevention is critical for operational safety. The valve's durability also makes it ideal for high-pressure and high-temperature environments.
A2: One of the benefits of the 16bar check valve is that it requires very little maintenance. However, regular inspections are important to ensure functionality. For instance, the valve should be checked for any signs of wear, corrosion, or possible seizure. In spring-loaded types, the spring should be checked for fatigue now and then.
A3: If the check valve malfunctions, it will not prevent the desired backflow resulting in fluid contamination and possible system damage. Common malfunctions include disc seating wear, corrosion, and debris accumulation, resulting in noise, vibration, or pressure fluctuations in the system.
A4: These check valves are made of several types of materials: brass, stainless steel, and cast iron. Of these, stainless steel is the most suitable for 60°C since it can withstand this temperature and, in some cases, even higher than that.
A5: Most manufacturers offer some limited warranty that covers defects in materials and workmanship. These warranties usually have a duration of 12 months after installation or 18 months after the shipment date.
