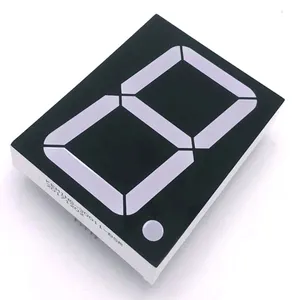

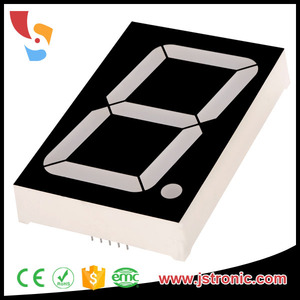

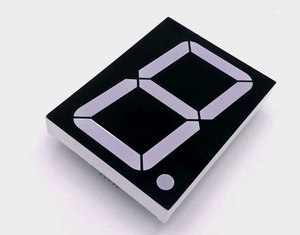

Types of 7-Segment LED Displays (100mm)

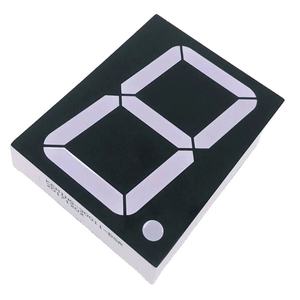

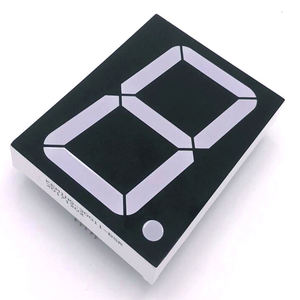

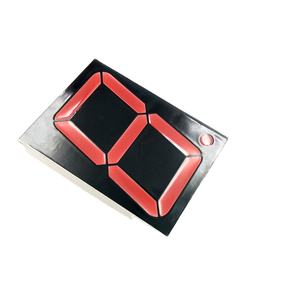

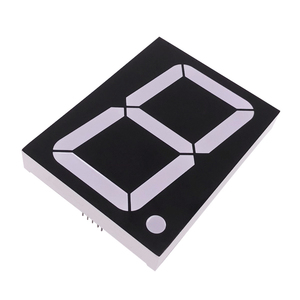

A 7-segment LED display 100mm is a vital electronic component that visually highlights numerical indications in a vast array of electronic devices. The prime role of these displays is to present numbers from 0 to 9, however, they can also be utilized to show letters, especially in a few dual applications. Constructed from 7 individual segments arranged in a figure eight, these displays offer high visibility and are easily readable from various distances.

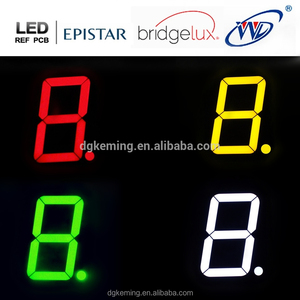

The displays come in diverse colors depending on the LED used for fabrication. Common colors include red, green, yellow, blue, and white. The red color has its prominence due mostly to its visibility and the fact that it is the oldest type of display.
There are a variety of types of 7-segment LED display 100mms, hence, these types mainly depend upon how they are driven:

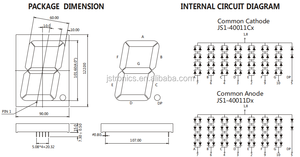

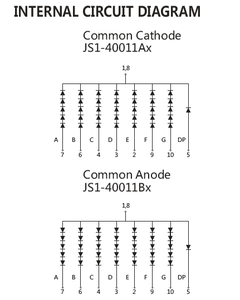

- Common Anode Displays: In this sort of display, the common anode pin is connected to the power supply while the individual segment cathodes are supplied with current through the controlling conductive pins. This means that to light up a segment, the corresponding anode needs to be provided with a negative potential (0V), while the common anode is connected to a positive voltage. These types of displays require a bit more complex driving and are usually employed in applications where the segment has to be turned on continually. The benefit of this sort is that the eyes can easily see it as they don’t have to be turned on frequently.
- Common Cathode Displays: This means that all segment cathodes are connected to a common cathode pin while the anodes of the individual segments are supplied with current through the controlling pins. This means that to light a segment up, it is necessary to apply a positive voltage to the corresponding cathode while the common cathode is connected to the ground. This sort of display is simpler to drive and it is one of the most commonly used in commercial applications.
- Dynamic Displays: These displays do not require individual segment driving, thus, the user can display different digits each time. This display is time multiplex, which means that only one digit is driven at a time. The advantage of this on application is that it saves a lot of power and is very helpful in LED devices.
- Dot-Matrix Controlled Displays: A dot matrix controlled display is a visually advanced version of the 7-segment display as its design contains more segments arranged in a number of configurations enabling it to depict numerals more efficiently. Besides, this shape is used to display numbers, it can also be used to display alphabets, special signs, and several characters for enhanced applications. These displays are commonly used in functions where more versatile and dynamic display, rather than a normal seven-segment one, is required.
Industrial Applications of a 7-Segment LED Display (100mm)
Seven-segment LED displays have an extensive usage range in many industries, thanks to their clarity, endurance, and effectiveness in numerical representations. Below are just a few prominent ways in which they are employed:
- Digital Multimeters: Multi-meters are employed to measure voltage, current, resistance, and other electrical properties. The user needs to set the requirement concerning the value concerning the measurement it has to be taken; the seven segments of the LED will indicate that value. Distinct digits in separate segments will light, allowing readings to be noted accurately. Hence, segment brightness easily supported by a 100 mm LED enhances the visibility of measurements in this application.
- Temperature Controllers: In the region of industries, precise temperature regulation is very vital to substances and equipment. Temperature control devices carefully monitor temperature variations by the segment LED display, thus helping industries maintain the setpoints and avoid any alterations that may bring about hazards or defects.
- Speed Controllers for Motors: Driving speed control devices in production motors, seven-segment LED displays, indicates velocity or revolutions per minute. This data is critical when one needs to ensure the motors run within the right stipulations, ensuring sturdiness and performance.
- Industrial Weighing Scales: Weighing devices provide consumers with the total weight value using a seven-segment LED display. Within the industrial sector, this application is quite vital, as weight plays a crucial role in shipment and inventory management among others.
- PLC (Programmable Logic Controller) Panels: In PLC systems measuring a parameter or status, such as on/off, the seven-segment LED display shows that information. This means that segment brightness that can be regulated easily via the 100 mm LED is very beneficial for such applications, as PLC is used most frequently in diverse industrial controllers.
- Pressure Gauges: Data pressure controllers highlight pressure levels using a seven-segment LED display, thus enabling relevant industries to monitor pressure and avoid under/overpressure conditions that adversely affect equipment and processes.
Other Considerations When Selecting a 7-Segment LED Display (100mm)
So many factors come into play in the selection of a perfect 7-segment LED display; the size must be appropriate for the application. A 100mm display will ensure great visibility for applications where visibility is prominent.
- Brightness and Visibility: First off, ensure that the display comes with excellent brightness in order to foster visibility. Brightness is gauged in millicandles or candela; in an industrial environment, high brightness gauge is important, especially when the display could be exposed to potential glare, dust, and low lighting conditions. Functionally, the segment's color, do, and intensity of the color enhance the visibility of the display.
- Viewing Angle: Industrial applications require an exclusive installation orientation and distance from the observer. High angle views will guarantee that the displayed numerical values stay legible, regardless of the pointed view. Thus, it eliminates the need for personnel to gather around the display just to obtain the readable values. Hence, note that the aspect ratio of the segment color has a direct correlation with the viewing angle.
- Power Efficiency: Another major factor to consider in the seven-segment LED display is the power efficiency feature. A conduction cathode display tends to be more power-efficient than the anode display because segments most often stay off. In applications that generally last several hours, power consumption must be evaluated to help lower operational costs and prevent overheating of devices.
- Temperature Range and Durability: The industrial sector runs in tough, hostile conditions; thus, the component employed in this category has to be ultra-resilient. Ensure the seven-segment display can withstand extreme temperatures, humidity, and particulate matter. In addition, check the ratings for IP protection against dust and water. Also, ensure it meets the shock and vibration standard to be employed in harsh environments. This will also boost its lifespan.
- Color: Seven-segment LED displays come in a wide variety of colors to meet the growing needs of their users. Red segments are primarily utilized because of their visibility and vintage. But in recent years green, blue, and white have also gained prominence because they are used in VDU. Each color is distinct in visibility and legibility. Hence, choosing the right color segment should depend on their visibility in the environment they intend to use them in.
- Character Size: The 100mm segment display enables character size in that particular segment consistent for effective readability. Several industries need the indicated values to be evident from a far distance to operational safety and efficacy. The physical dimension of the display contributes to the overall legibility of the display to the end-user, especially when dealing with distinct numbers and alphanumeric characters.
Q & A
What is a seven-segment LED display?
It is a calculator and digital watch aesthetic that helps one to understand numbers using an LED system known as a seven-segment display, which is usually made of diodes. It allows numbers between zero and nine to be presented through a combination of lighting these segments in particular ways. The segments form a rectangular shape, with two horizontal bars at the top and bottom and vertical bars on both sides, creating the segments. A seven-segment LED display can be found in electronic devices such as digital clocks and measurement devices. It has a bright, easy-to-read design perfect for showing limited numerical data.
What are the industrial uses of a 7-segment display?
Temperature controllers work with these seven-segment LED displays by showing temperatures so people can check and adjust systems if needed. Speed controllers in motors use the displays to show how fast something is going. Weighing scales show weight results for trucks, conveyor belts, and hoppers. Programmable Logic Controllers (PLCs) that automate machines use the displays to communicate status. Pressure gauges also use the displays to show safe or dangerous pressure levels. Basically, seven-segment displays help with checking and controlling many important processes in factories and industrial machines.
Is it ideal to choose a common cathode 7-segment LED display in industrial use?
A common cathode type of seven-segment LED display means that all the 'negative' ends (cathodes) of the segments are connected together. This allows for a simpler way to control the displays, making it more cost-effective. In industrial situations, this type of display is often preferred because it's usually easier to manage electronically. They work really well in cases where you just need to turn the lights on and off to show numbers. Therefore, while there are situations where a common anode display would be better - especially if you need to keep the segments off most of the time - overall, a common cathode display is usually the best practical choice for industrial use.
What factors should be considered when selecting a seven-segment LED display?
When picking a seven-segment LED display, it's important to think about a few key things. Its brightness level should be suitable for the viewing conditions. The viewing angle should be broad so the display can be seen from different angles without losing clarity. Power efficiency should be high to keep operating costs low. Check that the display can hold up against extreme temperatures and other tough conditions typically faced in industrial settings. A 100mm size needs to ensure that the segments are large enough for clear, easy readability. Lastly, confirm its compatibility with existing systems for seamless operation.
