Adjustable overload relay

Types of Adjustable Overload Relay

Overload relays are automatic devices in power systems that interrupt the circuit of a motor when the current exceeds a preset value. Adjustable overload relays help manage motor loads by adjusting their settings, reducing the likelihood of motor damage due to overheating. These overload relays operate differently as described below:

Electronic Adjustable Overload Relay

These adjustable overload relays employ semiconductor devices to control and adjust the current level. That way, they are not only more durable but also able to handle different causes since there are no moving parts that will wear out with time. The current-carrying capacity of electronic adjustable overload protection relays can be set very accurately to provide operational efficiency while also minimizing the risk of motor damage.

Additional features like fault memory, programmable delay timers, and communication ports for integration with other monitoring devices make these relays very flexible and efficient. These relays are preferred where high precision and reliability are required due to the nature of their settings and features.

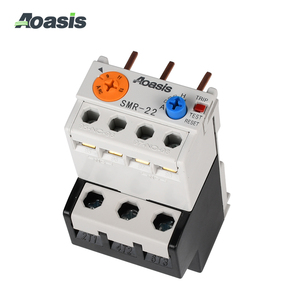

Thermal Magnetic Adjustable Overload Relay

This specific type of overload protection relay incorporates a bimetallic strip that bends when it gets too hot, driven by an electromagnetic trip mechanism when there is a sudden surge of current or heat is generated. The adjustment mechanism usually comes in a form of a knob, allowing users to set various current levels in the motor.

Although these thermal magnetic adjustable overload relays are crude compared with the electronic versions, the relays can still be adjusted according to the motor's Full Load Amperage (FLA). One of their advantages is that they are very simple and robust construction, and they can be used in various applications.

Cylindrical Adjustable Overload Relay

The cylindrical adjustable overload relays are compact and their cylindrical shape, typically designed for niche usage, includes space-confining applications. Many of these relays have electronic trip units, allowing adjustment through small, easily installable cylindrical forms into control cabinets or equipment enclosures.

This compact form does not compromise on functionality, as most cylindrical relays offer features comparable to their larger counterparts, such as selectable current ranges and time delays. However, due to their size, they might be used most in low-power applications or where space is limited.

Industry Applications of Adjustable Overload Relay

Motor Protection in Industrial Machinery

Adjustable overload relays are commonly applied to protect motors from overheating and excessive currents. By setting different current and time combinations, these relays allow motors to run at optimal levels while providing the shelter against the increased load conditions that will lead to motor burnout.

This is especially critical in industrial machinery, including pumps, compressors, conveyors, and fans, where motor loads tend to fluctuate. Automatically disconnecting a motor from the power supply helps to minimize downtime and repair costs, further enhancing reliability and longevity in the industrial manufacturing process.

HVAC Systems

Adjustable overload relays within HVAC (Heating, Ventilation, and Air Conditioning) systems play a vital role in compressor and fan motor protection. Setting the relay to the motor's Full Load Amperage (FLA) helps these systems majorly resist minor fluctuations in pressure and temperature, which tends to be normal operating conditions.

If an overload condition is experienced, the relay will trip, shutting down the power to the affected component and preventing damage. This result of an adjustable overload relay ensures that HVAC systems function efficiently over time, minimizing the risk of breakdowns and the costly repairs that come with it.

Pumping Systems

Overload relays are very critical in the case of the pumping systems where motors drive fluid movement. Setting an overload relay according to the variations likely to be experienced by the pump will allow the system to operate optimally even under variable load.

If excess current persists due to blockage or pressure rise, the relay will trip off, protecting the motor from damage, which will eventually result in thermal breakdown. Thus, having these relays in water and wastewater treatment facilities helps maintain this reliability and efficiency while preventing costly downtime due to motor failures.

Manufacturing and Assembly Lines

In the manufacturing processes such as assembly lines, conveyors, and robotic arms, motors for driving these machinery and tools require the protection offered by the relays. The constant and rapid shifting of the operational parameters demands the adaptability of adjustable overload relays, which are readily adjustable depending on the changing current levels.

This will help minimize any interruptions caused by motor failures, thus maintaining a continuous and efficient operation. In addition, in case of a fault condition, automatically disconnecting the motor from power helps safeguard the components.

Product Specifications and Features of Adjustable Overload Relay

The adjustable overload relay is quite crucial, if not more, in protecting electrical motors against the heating loads that will eventually lead to failure. It helps to recognize and disconnect power when the motor consumption goes above its capacity; thus, it is important to know its specifications.

Technical Specifications

• Current Range: These adjustable overload relays can carry different currents depending on the model. The typical ranges are from 0.1A to 25A or 40A to 90A for different models.
• Voltage Ratings: Usually, these relays operate normally at voltages from 240VAC to 600VAC, but some models withstand up to 1000VAC. Nevertheless, always check the specific model voltage rating.
• Time Delay: Time settings on the overload relays often come with short (0.1-10sec) and long (up to 15min) delay ranges. The short delay is for inrush currents, while the long delay allows for temporary overload conditions.
• Trip Class: The trip classes can be several, like 10, 20, 30, etc., which define the operating time concerning the overload current.
• Ambient Temperature: The surrounding temperatures should be known, too, since they affect the motor behaviour. Most relays operate at surrounding temperatures from about -40°C to +60°C.

How to Install

Proper installation guidelines of the adjustable overload relay include the following:

• Verification: One should verify that the voltage and current specifications match the motor and circuit.
• Placement: The relay unit should ideally be placed in the electrical panel near the motor contactor.
• Wiring: The relay terminals are wired to the motor and power supply. Wiring should be done according to the schematic diagram to provide the correct current readings.
• Adjustment: The trip settings of the relay have to be adjusted according to the motor's Full Load Amperage (FLA) as stated in the National Electric Code Section 430.
• Testing: The relay after installation has to be tested by running the motor under normal conditions to check for the correct operation.

Maintenance and Repair

Avoiding motor damage due to excessive loads and ensuring a user-friendly interface with a simple knob to adjust the overload settings are important in maintaining adjustable overload relays.

• Regular Inspections: Inspections should be conducted on the relay for any signal wear or damage. Relays that have been tripped often need to be investigated to ascertain the cause of the trip.
• Cleaning: Dust accumulation on the relay affects its functioning; thus, necessary cleaning should be performed regularly.
• Functional Testing: Regular functional tests check whether the relay operates under set conditions. This could be done using test buttons if the relays are fitted with them.
• Calibration: Technicians should calibrate the relay to ensure the current settings are accurate. Adjustment knobs tend to drift over time; hence, periodic calibration is very important.

Buyer’s Guide to Adjustable Overload Relay

There are several forms in which people should approach and think about these overload relays. Here are the essential factors that a person has to pay attention to:

Customization Options

Various relays come with certain extra degrees of freedom, enabling users to tweak features such as current ranges, time delays, and trip classes. Some of them will offer interfaces that are easier to use than others, so it is possible to make the settings needed much quicker. A few customization options or lack of them can impact how versatile the relay will be in different operating conditions.

Load and Trip Settings

This setting relates to the type of motor or load that the relay should carry and also the trip settings must be adjustable to the motor's FLA. It is critical to ensure that the relay can handle the current level under normal operating conditions.

Any model that has a broad range of adjustable trip settings would be more appealing since it could be applied in a number of applications. Going for the relays with various class trips is also helpful in addressing overload situations quickly.

Budget

The cost of an adjustable overload relay will be affected by several parameters, like the brand, its features, environmental ratings, and, of course, customization. Should the budget allow it, it is always recommended to invest in an overload relay with better specifications and additional features for better operational efficiency and reliability, even if intrinsic costs seem higher than for the metal.

Power Ratings

Buyers have to ensure that the power ratings and current carrying capabilities of the relay they are interested in fit the electrical system at their disposal. In cases where the motors operate at higher voltages or currents, a relay that withstands such voltage and current is necessary.

Industrial vs. Commercial

There are relays suitable for industrial-grade applications in harsh environments, while the commercial ones are for standard office or building HVAC systems. The types of overload relays suitable for buyers will depend on the environments in which they expect to use them.

Mounting and Enclosure

Relays are offered in different types, such as panel-mount and DIN rail-mount types, and the compatibility of these mounting styles with the current electrical cabinet must be considered. The IP ratings should also be considered, especially for applications in harsh, dusty, or wet environments where the risk of water and dust ingress exists.

Q&A

Q1. What is an adjustable overload relay?

The adjustable overload relays are used to protect motors by allowing the user to adjust the current level at which the relay will trip, thus providing flexibility in different operating conditions.

Q2. How does one set the trip level of an adjustable overload relay?

Adjustable knobs are used on the relay to set the trip current levels based on the motor's full load amperage.

Q3. What is the difference between thermal and electronic adjustable overload relays?

While thermal relays mainly operate mechanically and are based on heating principles, electronic overload relays use semiconductor technology to provide much more accurate and versatile trip settings.

Q4. Do adjustable overload relays require routine maintenance, and are they worth it?

Adjustable overload relays should be regularly tested for proper functioning and calibration since they ensure that motors are adequately protected against overheating; they are very worth routine maintenance.

Q5. Are cylindrical adjustable overload relays any different from the other shape overload relays?

Cylindrical adjustable overload relays operate like any other adjustable overload relays except that they are compact and have cylindrical shapes, making them ideal for applications where space is an issue.
