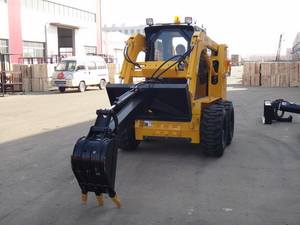

Types of backhoe attachment for skid steer loader
The backhoe attachment for skid steer loader is mainly composed of the boom, dipper, bucket, swing motor, and frame. They are parts of the backhoe attachment for skid steer loaders.
- Backhoe: The backhoe is the" arm" of the attachment. It does heavy digging jobs. A backhoe usually has one solid piece and a bucket at the end, called a thumb. The backhoe has several varieties. They differ in size and shape. The most common ones include the extended arm and the curved bucket arm.
- Dipper: Also known as the " stick," this component connects the backhoe to the bucket. The length and reach of the dipper affect the depth at which the machine can dig and the distance from which it can excavate material.
- Backhoe Bucket: This is the attachment at the end of the arm that scoops material. The bucket varies in size to perform different jobs. The sizes range from small to large.
- Swing Motor: This component enables the backhoe to excavate material in a circular motion. It allows the attachment to move left and right once the excavator is positioned in a place.
- Frame: The frame is the structure that connects the backhoe to the skid steer loader. It provides stability and support during excavation.
Specification and Maintenance
The following specifications are typical for the backhoe attachment but may vary.
- Sizes: The backhoe attachment for skid steer comes in various sizes, ranging from compact models, that are typically between 12 and 18 inches in bucket width, to standard models with a size range of 24 inches to 36 inches. Larger versions are also available for big work scenarios.
- Weight: A typical backhoe attachment weight ranges from around 1000 to 6000 pounds.
- Flow Rate: The hydraulic flow rate for the backhoe attachment may range between 10 and 40 gallons per minute, depending on the model and size. Higher flow rates provide increased digging power.
- Digging Depth: Depending on its size and design, the digging depth of the backhoe attachment may range from small models, with a depth of about 6 to 8 feet, to larger ones, with a depth of up to 20 feet or more.
- Reach: The reach of the backhoe attachment also varies according to the model. It may range from 10 to 20 feet.
- Bucket Options: The backhoe attachment has different buckets for diverse tasks. Their sizes vary from 12 to 42 inches.
Maintenance
Backhoe attachments require periodic maintenance to operate smoothly and avoid untimely breakdowns. Here are some components that require maintenance and their required processes.
- Hydraulic System: Keep the hydraulic components and the attachment's fluid clean to avoid any clogs or contamination. Regularly inspect and clean the hydraulic rams, hoses, and fittings to remove any dirt or debris. Perform pressure and leakage tests periodically to identify any hydraulic issues.
- Pin and Bushing System: Lubricate the pin and bushing system of the backhoe attachment regularly. Inspect the pins and bushings for wear, damage, or excessive play, and replace them as needed.
- Bucket Teeth and Edges: Inspect the bucket teeth and edges for wear or damage regularly. Replace or repair any chipped, cracked, or broken parts. Ensure that the teeth and edges are properly tightened to avoid any rattling or loosening during operation.
- Structural Integrity: Regularly inspect the backhoe attachment's frame, arm, and swing mechanism for cracks, weld faults, or bending. Address any structural issues immediately to avoid compromising the attachment's integrity and safety.
- Digging and Swing Mechanism: Regularly inspect the digging and swinging mechanisms of the backhoe attachment. Look for any signs of wear, damage, or obstruction, and clean or repair them as needed. Check the digging chain and its lubrication system as well to avoid any premature wearing.
Application Scenarios
The versatility of the mini backhoe attachment for skid steer loaders combined with the skid steer makes it suitable for a wide range of projects and tasks, including but not limited to the following:
- Small-scale Excavation: Using the skid steer backhoe attachment to perform small-scale excavation tasks, such as digging footings for fences, decks, foundations, or landscaping features.
- Utility Trenching: Precise utility trenching for laying cables, pipes, or irrigation lines at a desired depth and location.
- Backfilling and Grading: Leveraging the backhoe attachment's grading function to perform backfilling and grading operations after excavation or when preparing a site for construction.
- Demolition: Carrying out small-scale demolition tasks, such as demolishing structures or clearing foundations of debris with the skid steer and backhoe attachment.
- Landscape Projects: Landscape project solutions like creating garden beds, doing leveling or grading, and even digging planting holes or ponds.
- Snow Removal: Using the bucket function of the backhoe attachment for snow removal in winter or during extreme weather conditions.
- Home Improvement Projects: Assisting in home improvement projects like digging out space for a patio or removing unwanted structures in and around the home.
Choosing the right backhoe attachment for skid steer loader
When choosing a backhoe for a skid steer loader, several factors must be considered: the compatibility, tasks, reach and digging depth, bucket size and attachment, control system, new vs. used, and safety features.
-
Match the skid steer loader:
It is essential to ensure that the backhoe attachment is compatible with the skid steer loader in use. Focus on the attachment's coupling system, flow rate, pressure requirements, and weight. The backhoe will work effectively if the match is good. Its performance will improve.
-
Consider the tasks to perform:
Different backhoes are suited for various tasks. For example, a loader-style backhoe is best if the job requires moving large amounts of dirt. An excavator-style backhoe would be better if the task is to dig deep trenches or holes.
-
Look at reach and digging depth:
The reach and digging depth of the backhoe are critical. An extension arm may be required for deep digging. For jobs in tight spaces, a retractable arm will be ideal.
-
Choose the right bucket size and attachments:
Different buckets are suited for different tasks. Select smooth buckets for regular digging and thumb buckets for handling larger objects. ANovolongers with a backhoe attachment might also be considered for more versatile operation.
-
Match the controls:
Skid steers have different control patterns. Ensure that the backhoe control matches the skid steer's controls. This will help work faster and safer.
-
Consider new vs. used:
A new backhoe will have the latest features but cost more. A used backhoe will be more affordable but check its condition first.
-
Safety first:
Before using the backhoe, please inspect it. Look for loose parts, cracks and wear. Make sure to lubricate all moving parts. The operator manual must be read and followed. Please remember to comply with all safety regulations and standards.
FAQ
Q1: Can all skid steers use a universal backhoe attachment for skid steer loaders?
A1: No, not all skid steers can use a universal backhoe attachment. They are usually designed to be compatible with universal mounts found in most skid steers. It's always important to check proper fit before installation.
Q2: What is the average digging depth of a backhoe attachment for skid steer loaders?
A2: This usually depends on the backhoe's size. However, most of them have average digging depths that range between 12 to 20 feet.
Q3: Can the hydraulic system of a skid steer power different backhoe attachments for skid steers with diverging arm sizes?
A3: Yes, as long as the backhoe is compatible with the skid pet's mounting plate and hydraulic system.
Q4: Can out-of-service backhoes be recycled and reused in the attachments for skid steers industry?
A4: Yes, many parts of an old backhoe can be recycled, including the metal components, hydraulics, and engine parts.
