Charpy pendulum impact tester

Types of Charpy pendulum impact tester

a Charpy impact tester is available in the following types:

• Manual Charpy Pendulum Impact Tester

  The operation of the existing manual Charpy impact pendulum meters includes users conducting all tests and data recording by hand. Manual testers are less complex and more inexpensive compared to other models. Charpy testers are pendulum impact testers, ideal for factories or research centers with fewer workloads. However, manual devices are slow and less precise, which can disadvantage businesses requiring data quickly and accurately.

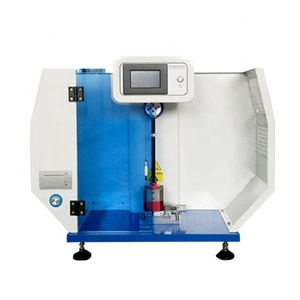

• Digital Charpy Pendulum Impact Tester

  An electronic or digital Charpy tester offers enhanced measurement and analysis features. This is compared to a manual tester. Digital models measure the pendulum's swing, often without the user's intervention, to record an energy-absorbed precise impact. Furthermore, digital testers provide additional features, including data storage, transfer, and automatic calculation. Therefore, these models are ideal for sectors requiring large outputs of accurate test data.

• Semi-Automatic Charpy Pendulum Impact Tester

  Semi-automatic testers lay somewhere in the middle between manual and digital testers. Some stages of testing, such as swinging the pendulum and taking the readings, can be semi-automated. Users may still need to place the specimens and possibly record the data manually. This blends operative efficiency with high precision and is suitable for businesses with average capacity and testing frequency.

• Low-Temperature Charpy Pendulum Impact Tester

  There is also a specialized Charpy tester for low temperature testing. These testers check the materials' resistance values at very low temperatures. Hence, they are most useful for industries related to cryogenic applications, such as aerospace and liquefied gas. These specialized instruments will work under extreme conditions. However, this requires unique design features that enable the instrument to operate in such an environment.

Function, Feature, and Design of Charpy pendulum impact tester

Function

The major function of the Charpy pendulum impact tester is to measure the impact strength of materials. This is done with the help of a pendulum which is made to swing and strike a notched specimen. The difference in the pendulum's height before and after the strike gives the energy that the specimen absorbed. Then, this energy will define how much impact pressure the material can face before fracturing. This makes the Charpy tester a key instrument for understanding a material's ability to resist extreme conditions.

Features

• Pendulum System: The system of the pendulum is a major part of the instrument. Thus, this can be a single or multiple masses that swing from a defined height. When released, the mass of the pendulum strikes the material under trial. Common mass systems will include a cylindrical or spherical cap that allows a uniform distribution of the impact force.
• Notched Standard: A Charpy impact test is characterized and differentiated by a horizontal bar with a central notched cut-out. The standard dimensions of this notch are set by international testing protocols, such as ASTM and ISO standards. The notched specimen helps in understanding how the material reacts to localized stress concentrations. These are areas that are predicted to be potential failure points.
• Energy Measurement: The energy measurement features, such as how much energy the swinging pendulum has lost after striking the specimen, are integral to the device. Often, these systems will come with a torque measurement that swings a pendulum from a horizontal starting position that gives the energy absorption.
• Temperature Control: Some Charpy devices will allow control of temperature to enable testing of the material at various thermal conditions. This is particularly critical when the evaluation process involves materials that may be exposed to extreme heat or cold. Such features are also available in devices with low temperature and in semi-automatic devices.

Design

The basic design of the Charpy impact tester includes a frame, pendulum, support, and specimen placement. The tester frame consists of a heavy structure that supports the pendulum system. This is a pendulum designed in the form of a weighted arm or bar. This is often a mass or a more complex shape to imitate the actual working conditions of the material. Most frames are made of steel or iron to impart rigidity. This is counterweighting the pendulum to ensure the initial swing occurs from the same height every time.

The frame of the tester also has a slot where the specimen is placed. This slot is cut with a notched shape on both faces of the specimen to allow room for the two impact surfaces to make contact. This frame holds the specimen stationary while the pendulum swings from its rest position. The impact zone of the pendulum is aligned with the center notch of the specimen. Hence, the design of the Charpy impact tester makes the test accurate by reducing any human errors. While effective results are recorded in the testing devices with advanced technology, the maintenance of the tester directly impacts the quality of test results.

Scenarios of Charpy pendulum impact tester

The Charpy impact pendulum tester is widely used across various industries to test the mechanical properties of materials under impact load conditions. Below are some scenarios in which this equipment is commonly used:

• Aerospace Industry

  In the aerospace sector, materials go through many extremes, including wide temperature ranges and high levels of stress. Charpy impact testers assess the toughness of these materials to ensure they can withstand the rigorous operating conditions of spacecraft and aircraft. Advanced Characterization combines toughness evaluation with other properties to ensure that the aircraft parts are safe and reliable.

• Automotive Industry

  Automakers usually apply Charpy testers to ensure that metals and plastics can withstand possible impact scenarios that their vehicle shape may encounter. These include collisions, weather changes, and road impacts. Thereby ensuring that components such as bumpers, chassis, and structural materials have sufficient energy absorption capabilities. Another thing about materials is that they are tested at different temperatures to evaluate their performance.

• Construction and Structural Engineering

  Structural materials like steel and concrete face very high impact loads during their service life. Therefore, the construction industry relies on Charpy testers to evaluate the toughness of these materials. This ensures that beams, columns, and other load-bearing structures can bear any potential loads without fracturing. Moreover, testing materials at low temperatures is also essential in regions with severe winters.

• Oil and Gas Industry

  The industry also evaluates the materials such as pipes and fittings that operate in harsh sub-environments. Hence, Charpy impact testers assess the pipeline materials' ability to withstand not only impacts but also stress and temperature extremes. This ensures pipeline integrity and safety in drilling and transportation.

• Metallurgy and Material Science Research

  Material scientists and metallurgists use the Charpy impact pendulum tester in their research labs. This is done to comprehend new alloys and composite materials' toughness properties. They focus mainly on developing materials with better strength and toughness to help with modern technological advancement. In this case, the equipment will help them optimize new material formulations for applications that require the best performance in less space and time through potential failures.

How to Choose Charpy pendulum impact tester

Choosing the right Charpy impact tester will depend on several key factors. Below are the factors:

• Operational needs

  The first thing to consider is an operational requirement. A simple manual model will be ideal if the budget is a constraint and testing does not require specialized services. Automated impact testers, on the other hand, will be more suited for industries with great realms logistics. That require faster testing rates and more accuracy.

• Upgrade

  Should one already have a Charpy impact tester, then they need to think about which additional features or functions could enhance the existing ones. Also, consider factors like energy measurement, digital readouts, and data logging capabilities get incorporated. This will modernize a vintage Charpy impact tester and significantly speed up the testing procedure.

• Industry Standards

  This may include ASTM E23, ISO 148, or other pertinent industry requirements. Ensure that the selected tester conforms to such standards. This will make certain that all the results generated will be valid and universally accepted.

• Versatility

  Consider which type of materials or specimens would need to be tested today. Some commonly used impact testers, such as low-temperature Charpy testers, may have more specialized uses.

• Service and Maintenance

  As with many general laboratory instruments, think about how much time and resources will be dedicated to servicing and maintaining the tester over its lifetime. It should also be a pointer regarding the long-term reliability and support of the instrument's manufacturer.

Q&A

Q1: What is the significance of using a low-temperature pendulum impact tester?

A1: The tester enables the assessment of materials in a controlled atmosphere. This means it can simulate the conditions in which they are likely to be used, such as in the oil and gas industry.

Q2: Which materials are commonly tested with a Charpy pendulum impact tester?

A2: Any structural metals, like steel and aluminum, and plastics, can be subjected to a Charpy test. These are the materials that will normally be put through impact or shock loading in real-life situations.

Q3: What is the impact of digital on analog impact testers?

A3: Digital testers will provide measurements. These can be recorded, retrieved, and even analyzed without the need for totally intricate operations, thus developing the general output efficiency from that of a conventional analog tester.

Q4: What factors should be considered when selecting a Charpy impact tester for an industry?

A4: The most important factors are temperature control, operational capacity, and standards. They will then determine if manual, semi-automatic, or fully automatic should be chosen.

Q5: What is the effect of notch geometry on the Charpy impact test results?

A5: Notches are an essential factor that influences the failure modes of the tested materials. This is because different notch shapes may lead to various crack propagation mechanisms.
