Fixed liquid level gauge

Types of Fixed Liquid Level Gauges

Fixed liquid level gauges allow the user to measure and observe the liquid level in huge reservoirs. Just like How a glass tube gauge works, these gauges employ different measurement styles.

• Sight Gauges

  See-through gauges use a transparent strip or tube to reflect the fluid's height within a vessel. They enable a visual check of the liquid levels for easy, dependable monitoring. Due to fears regarding glass safety or pressure concerns, many industries are switching to switched glass gauges. Liquor, having a low viscosity, is suited for sight gauging, which eliminates the danger of spills that can occur with other gauges.

• Float Gauges

  A float gauge includes a float buoy that sits on the liquid's surface within a tank. As the liquid level moves, the float rises or sinks, causing a scale or indicator outside the tank to reflect this change. A float gauge is relatively affordable and suitable for measuring various liquids. Accurate, yet a float can be affected by changes in density or viscosity, which must be regularly assessed and mitigated.

• Magnetic Gauges

  Magnetic level gauges have a float with magnets inside it that interacts with the outside magnetic field. The gauge measures the level of the liquid in magnetic bouys, which makes it safer, more accurate, and more reliable, especially for volatile liquids. The strong build makes it work even at high temperatures and pressures, plus it works without power. However, it costs more to install compared to other types of gauges.

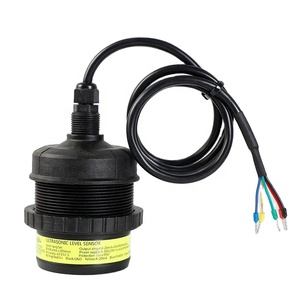

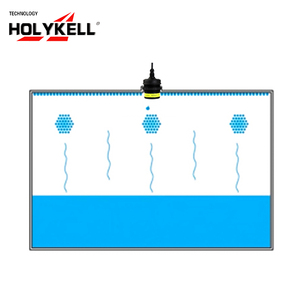

• Ultrasonic Gauges

  These gauges utilize an ultrasonic level sensor that sends sound waves to the fluid's surface. The time of flight is measured, and then the object calculates the level. An ultrasonic gauge has the advantage of being non-contact. It measures without touching the liquid surface and thus reduces contamination. It is used for hard and easy liquids and slurries. Sound waves are affected by vapors and foam on top of the liquid in the tank.

• Pressure Transdducers

  Pressure transducers work by gauging the pressure exerted on a liquid by the atmosphere and converting it into an electrical signal. Liquid height can be calculated from the liquid pressure, thus giving level measurement. Liquid density changes are compensated with a vented reference. The transducer measures the gauge pressure of the liquid that changes with liquid level. Per gauge pressure = height of liquid * density of liquid * g (acceleration due to gravity).

Industry Applications of Fixed Liquid Level Gauges

• Petrochemical Industry

  The fixed liquid gauge can be used to measure the fluid levels of crude oil, fuels, and chemical solvents in the petrochemical industry. A glass tube gauge can work well because it is simple to understand and can be used without any interruptions. This can help prevent overflow, run-out, and unsafe situations. Ultrasound gauges are also used here because they can measure liquids while ignoring issues like vapors.

• Agriculture

  In farms, fixed liquid gauges are used to measure the levels of irrigation waters, pesticides, and fertilizers stored in tanks. These gauges allow farmers to monitor liquid levels in real-time, enhancing safety in chemical handling and storage. Float levels work well in queuing and stirring liquids, while magnetic gauges are used in areas requiring minimum risk of chemical contact with employees. Accurate gauging ensures efficient irrigation systems run without delays due to low water levels.

• Water Treatment

  Fixed level gauge is key to water treatment facilities where it is used to measure the levels of flocs, water, and pertinent chemical additives in numerous processing basins and storage tanks. Pressure transducers help track fluid levels, altering treatment processes in real-time to assure effective purification and chemical dosing. Magnetic and float gauges provide reliable measurements of crucial liquids needing constant monitoring to avoid overflow.

• Food and Beverage Industry

  The food and beverage production industry employs fixed liquid gauges to measure product and ingredient levels, such as juices, oils, and brewing liquids. Measuring food-grade fluids calls for great accuracy and sanitation; thus, the most suitable gauges are used. For example, a float gauge is used to provide exact measurements of various food fluids. The glass tube gauge allows users to see the fluids directly.

• Pharmaceutical Industry

  In pharma and biohacking, liquid levels in drug components and storage containers are frequently measured. Ultrasound gauges are helpful for measuring sensitive liquids where contact needs to be avoided at all times. Fixed liquid gauges play an important role in ensuring that fluid medications, raw inputs, and chemicals are stored safely with levels well monitored, thus boosting process accuracy and preventing pollution with drugs.

Product Specifications and Features of Fixed Liquid Level Gauges

Technical Specifications

• Measuring Range: Fixed liquid gauges measure various ranges, usually from a few centimeters to several meters, depending on the application.
• Material: The materials range from metals to plastics for transparency. In agriculture, plastic-sealed float gauges can be used for corrosive fluids.
• Accuracy: Gauges are usually accurate to 0.5% to 5%. Pressure transducers often have the greatest accuracy due to their ability to compensate for density changes.
• Operating Temperature: Operating temperature varies widely, with some gauges being able to function at temperatures as low as -40ºC to as high as 200ºC.
• Response Time: The response time can be in milliseconds for some types or in a few seconds, depending on the required accuracy and application. Magnetic and float gauges respond instantaneously, while pressure transducers may take longer to register changes.

How to Install

The installation form regarding fixed liquid gauges varies and is dependent on the type used. This is, however, more general about the procedure that is applied across the board.

• Choose location: Choose a launch site near the inlet or outlet connection and easy work access.
• Mounting: Any pressure gauge should be bolted onto the appropriate mounting brackets or flanges on vessels or pipes.
• Calibration: The gauges should be calibrated according to the liquid level measuring range. Float gauges measure the free-floating floats within the features that should be calibrated according to the level of the liquid. Others use pendulum calibration policies.
• Sealing: Ensure all connections are bolted rigidly and well-sealed to prevent fluid leaks and environmental pollution.
• Testing: Perform a test run to gauge functionality at measured liquid levels. Confirm accuracy by gauging manufacturer's checklist instructions.

Maintenance and Repair

• Maintenance

  In water treatment facilities, fixed liquid gauges are key tools for monitoring water quality. That is why gauging maintenance works help improve overall liquid monitoring effectiveness. Regular maintenance entails the following:Gauge maintenance includes checking for rust, and cracks, dusting and cleaning the sight gauge regularly, examining the floats for wear, and cleaning the fluid paths.

• Regularly calibrate all fixed liquid levels to ensure measurement accuracy. Check the manufacturer's handbook for the period and method of calibration.
• Replace faulty elements, such as weary floats or damaged pressure sensors, to avoid breakdowns. Using broken parts can endanger the facility and foster environmental pollution.
• Check for leaks in all fixed liquid gauges to observe the dangers that may occur. It leads to a lot of harmful consequences like the destruction of key parts of the machines and environmental hazards.

Repairs can be classified into different measures to take.

• Repairing vs. replacing: Some damages with fixed liquid gauge require repairs, while some will need a full replacement. Minor issues like small cracks or sensor malfunction can be repaired, while major ones like meltdown pressure transducer gauges require complete replacement.
• Professional repair: Some repairs may require the help of an expert. The pros have experience with these issues, and they will help save time and possible harm.

How to Choose Fixed Liquid Level Gauges

• Tank shape and size

  The tank's shape and size determine which gauge to apply. Large cylindrical tanks may require gauging that can measure longer distances, like a pressure transducer or float gauge. Simple geometry shapes, like rectangular ones, may do well with simpler gauges like sight gauges. Fixed effect liquid level gauges work best in straight channeling and are uninterfered with by obstructions in the tank.

• Liquid properties

  Govern the liquid internal to the tank and use it for liquid characteristics when selecting a gauge. Viscous fluids may need a float gauge that can move freely above the fluids, while less viscous fluids would allow use of magnetic or sight gauge. Evaluate if the fluid is likely to cause romance with the materials used in the gauge. If so, use the model that has the most possible resistance to corrosion.

• Budget and costs

  All budget considerations should be kept aside, as this is where liquid level tactics matter most. Generally, sight gauges feature the least input and output blue costs, while others like ultrasonic and pressure transducer have high input costs but more benefits. Consider the current and future operating costs, including maintenance and installation, before making a decision on which one to go with.

• Accuracy requirements

  Determine the level of accuracy that is needed in that particular case. Some cases require a rough estimate of the liquid level, which may be insufficient to measure using visual gauging, such as sight gauging. Other situations call for very precise measurements, which apply a pressure transducer or magnetic gauge. Do this and evaluate against the accuracy that liquid gauge offers.

• Environmental conditions

  Consider work and environmental conditions to select an ideal gauge. Factors like temperature, pressure, and the presence of harmful vapors can affect the type of level gauge to use. For example, ambient conditions like high temperatures require gauges that can withstand extreme temperatures. Ultrasonic gauges measure fluids in conditions that contain vapors or foam to improve the liquid surface measurement, which affects foam and vapors.

Q and A

Q1. Which gauge is best for viscous liquids, and why?

A1: A float gauge measures viscous liquids without being influenced by density changes. Unlike other gauging systems, the float moves with the liquid level and does not care about internal obstructions or fluid characteristics.

Q2. Can fixed liquid level gauges be used for both simple and complex liquids?

A2: Yes, fixed liquid level gauges are versatile and can be used for various simple and highly complex liquids. Choose the right gauge type based on the liquid's characteristics and the tank's conditions.

Q3. How does a pressure transducer level gauge work?

A3: The pressure transducer works by performing the pressure used by the fluid level in the liquid and converting it into an electric signal to measure the pressure.

Q4. Are sight glasses/ sight marks applicable in Industry?

A4: Most industries do not use sight glasses/ sight marks. They can be used to monitor liquids visually within a process. Instead of depending on subjective visual observations, sight glasses can be fitted with more accurate measuring instruments.

Q5. Can a fixed liquid gauge be used in high-temperature applications?

A5: Yes, a fixed liquid level gauge is ideal for measuring level liquids in tanks that measure and work with hydrocarbons, water, and other materials in industry.
