About frame machine with two pulling tower

Types of Frame Machines with Two Pulling Towers

A frame machine with two pulling towers is a critical piece of equipment in the automotive repair industry. It enables technicians to accurately realign and restore vehicle frames that have suffered structural damage due to collisions or accidents. These machines use hydraulic systems and precise measuring tools to return vehicles to their original factory specifications, ensuring safety, performance, and proper fitment of body panels.

The inclusion of two pulling towers allows for greater control over multiple axes of force during repairs, making it possible to correct complex distortions such as twists, bends, and misalignments across the entire vehicle structure. This dual-tower system enhances efficiency and accuracy compared to single-pull setups.

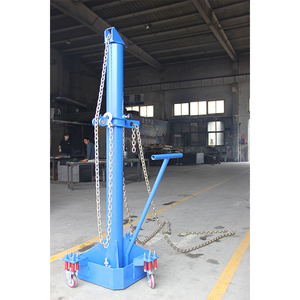

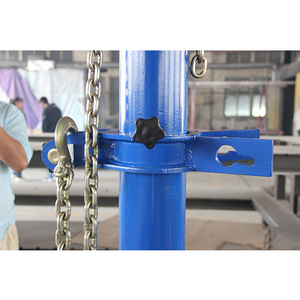

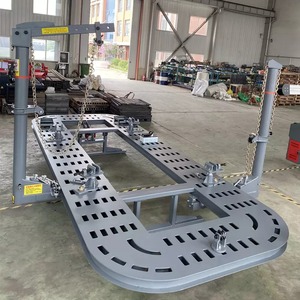

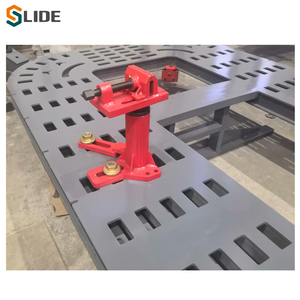

Bench Frame Machines

These are among the most widely used types of frame machines. They feature a sturdy bench design equipped with anchoring points to secure the vehicle during repairs. Hydraulic pulling towers apply controlled force to bring the frame back into alignment according to manufacturer specifications.

Advantages
  • Cost-effective solution for small to medium shops
  • Simple operation and maintenance
  • Durable construction suitable for daily use
Limitations
  • Limited adjustability for varying vehicle sizes
  • Less advanced measurement capabilities
  • Requires more manual intervention during alignment

Best for: General collision repair shops, budget-conscious operations, standard passenger vehicles

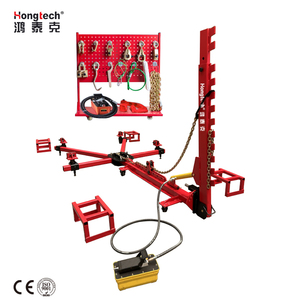

Spotting Frame Machines

Designed for on-site diagnostics and minor corrections, spotting frame machines help identify and address frame misalignments quickly. These portable units come with compact measuring systems and adjustable clamps that allow for immediate adjustments at the accident scene or within the shop floor.

Advantages
  • Highly portable and flexible deployment
  • Quick diagnosis of frame issues
  • Easy integration into mobile repair services
Limitations
  • Not suitable for major structural repairs
  • Limited pulling capacity compared to full-frame systems
  • Less precision than computerized systems

Best for: Mobile repair services, initial diagnostics, light-duty repairs

Chief Frame Machine

Renowned for its technological sophistication, the Chief frame machine integrates computerized measurement systems and real-time feedback to ensure highly accurate repairs. The dual pulling towers work in tandem with digital sensors to provide precise control over frame restoration efforts.

Advantages
  • Real-time data tracking and diagnostics
  • Supports a wide range of vehicle types and sizes
  • Advanced software integration for calibration
Limitations
  • Higher initial investment cost
  • Requires trained personnel for optimal use
  • More complex maintenance and calibration needs

Best for: High-end repair centers, OEM-certified shops, complex structural repairs

Laser Frame Machine

This type of frame machine uses laser-based technology to achieve extreme precision in detecting and correcting even the smallest misalignments. The dual pulling towers are guided by laser beams that map out the exact geometry of the vehicle’s frame, allowing for micro-adjustments where necessary.

Advantages
  • Unmatched accuracy in measurements
  • Capable of detecting sub-millimeter deviations
  • Consistent results across all repair jobs
Limitations
  • Very high cost of acquisition and setup
  • Requires specialized training for operators
  • Sensitive to environmental interference (light, dust)

Best for: Precision-oriented repair facilities, luxury and performance vehicles, quality assurance applications

Universal Frame Machines

Engineered for versatility, universal frame machines are designed to handle a wide array of vehicles including cars, trucks, SUVs, and commercial vans. Their adjustable pulling towers and adaptable anchoring systems make them ideal for multi-purpose repair shops.

Advantages
  • Adaptable to various vehicle types and sizes
  • Good value for money in diverse repair environments
  • Reduces need for multiple specialized machines
Limitations
  • May not offer the same level of specialization as dedicated machines
  • Setup can be time-consuming for different vehicle types
  • Performance may lag behind premium models in certain applications

Best for: Multi-vehicle repair shops, fleet maintenance centers, general automotive service providers

Type Precision Versatility Cost Efficiency Best Application
Bench Frame Machine Medium Low Excellent Standard passenger vehicles, budget repair shops
Spotting Frame Machine Fair High Good On-site diagnostics, mobile repair units
Chief Frame Machine Excellent High Good OEM-certified shops, complex repairs
Laser Frame Machine Outstanding Medium Fair Precision work, luxury/performance vehicles
Universal Frame Machine Good Excellent Very Good Mixed-vehicle workshops, fleet maintenance

Expert Tip: When selecting a frame machine with two pulling towers, always consider your workshop's primary vehicle type, expected repair complexity, and technician expertise. Investing in training for advanced systems like Chief or Laser machines ensures maximum ROI and customer satisfaction.

Specifications and Maintenance of Frame Machines with Two Pulling Towers

Understanding the Importance of Proper Maintenance

Frame machines equipped with two pulling towers are essential tools in collision repair shops for restoring vehicle frames to their original factory specifications. To ensure accurate repairs and long-term reliability, it's crucial to perform regular maintenance on these systems. Proper care not only extends equipment lifespan but also guarantees precision in frame alignment operations.

Maintenance Categories and Best Practices

Regular Inspection Protocols

Comprehensive inspection routines should include all structural components of the pulling towers and frame machine. This includes checking for signs of wear such as scoring on sliding surfaces, damaged paint that may lead to corrosion, and any visible misalignment between the towers.

The hydraulic system requires special attention – look for fluid leaks around cylinder seals, hose connections, and valves. Use a pressure gauge to verify that system pressure remains within manufacturer specifications during operation.

Calibration Requirements

Precise calibration is vital for maintaining measurement accuracy. Most modern frame machines use laser or digital measurement systems that must be calibrated regularly according to manufacturer guidelines.

This process typically involves using certified reference points and specialized calibration tools. Some systems require software-guided calibration procedures that should be performed by trained technicians to ensure proper functionality of feedback mechanisms related to vehicle dimensions and frame alignment.

Hydraulic System Maintenance

The hydraulic system powers the pulling force necessary for frame straightening operations. Follow the manufacturer's recommended schedule for oil changes, typically every 500-1000 operating hours depending on usage intensity.

Inspect all hydraulic hoses for bulging, cracking, or abrasion damage. Replace fittings showing signs of leakage immediately. Check hydraulic filters regularly and replace them at intervals specified in the maintenance manual to prevent contamination of system components.

Lubrication Procedures

Proper lubrication reduces friction and wear on moving parts. Apply manufacturer-recommended lubricants to guide rails, sliding mechanisms, and pivot points of the pulling towers.

Use grease fittings where available and apply appropriate lubricant to exposed linear motion components. Avoid over-lubrication which can attract dirt and debris. Create a lubrication schedule based on equipment usage frequency and environmental conditions.

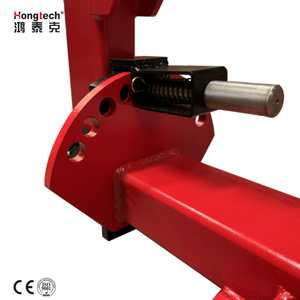

Structural Integrity Assessment

Periodically inspect the steel structures of both pulling towers and the main frame machine base for any signs of bending, welding cracks, or deformation from excessive loads.

Check mounting bolts and weld seams for integrity. Use precision measuring tools to verify tower alignment relative to each other and the machine base. Misaligned towers can cause uneven stress distribution and inaccurate pulling results.

Electrical System Maintenance

Ensure all electrical connections remain clean and tight. Inspect wiring harnesses for abrasion damage or pinching points. Verify that emergency stop circuits function properly during routine testing.

Protect control panels from dust and moisture. For computerized systems, maintain proper ventilation to prevent overheating. Regularly check grounding connections to ensure operator safety and protection against electrical surges.

Maintenance Task Frequency Recommended Tools/Supplies
Visual Component Inspection Daily Flashlight, inspection checklist
Hydraulic Oil Level Check Daily Sight glass, dipstick
Measurement System Calibration Monthly or as needed Calibration blocks, laser targets
Hydraulic Oil Change Every 500-1000 hours Manufacturer-approved hydraulic oil
Full Structural Inspection Quarterly Level, measuring tape, crack detection dye
Software Update Implementation As released Computer, update cable, backup media

Additional Maintenance Considerations

  • Safety Standards Compliance: Always follow OSHA and industry safety standards when performing maintenance. Ensure operators wear appropriate personal protective equipment (PPE) including gloves, eye protection, and non-slip footwear. Maintain clear emergency procedures and functional emergency stop devices.
  • Software Management: For computerized systems, establish a regular schedule to check for software updates from the manufacturer. These updates often include performance improvements, bug fixes, and new features that enhance measurement accuracy and system functionality.
  • Environmental Protection: Keep the work area clean and free from excessive dust or moisture that could affect sensitive components. Maintain proper climate control in storage areas to prevent condensation issues.
  • Training Programs: Implement ongoing training for technicians working with frame machines. Proper understanding of equipment capabilities, maintenance requirements, and safety protocols ensures optimal performance and longevity.
  • Important: Never attempt to operate or perform maintenance on a frame machine with two pulling towers without first consulting the manufacturer's service manual. Improper procedures can result in equipment damage, reduced accuracy, or serious injury. Always disconnect power sources before performing maintenance tasks involving direct contact with mechanical components.

    How to Choose Frame Machines with Two-Pulling Towers

    Selecting the right frame machine with two-pulling towers is crucial for automotive repair shops looking to offer high-quality collision repair services. Whether you're purchasing for resale or personal use, it's important to evaluate several key factors that determine performance, durability, and value.

    Capacity and Load Handling

    The load capacity of a frame machine determines which types of vehicles can be repaired effectively. Exceeding the machine’s weight limit can cause structural damage, reduce accuracy, and shorten the lifespan of the equipment.

    • Compact cars typically require machines with capacities between 10,000–15,000 lbs
    • Light trucks and SUVs benefit from systems rated at 15,000–20,000 lbs
    • Commercial vehicles may need industrial-grade units exceeding 20,000 lbs capacity

    Key consideration: Always choose a machine with a safety factor above your expected maximum workload

    Versatility Across Vehicle Types

    A versatile frame machine should accommodate various vehicle sizes, chassis designs, and body styles. Look for features like adjustable anchoring points, modular clamping systems, and compatibility with both unibody and full-frame vehicles.

    • Check for multi-position anchor slots and adapters
    • Verify compatibility with electric and hybrid models
    • Look for expandable towers and height-adjustable arms

    Tip: Machines with universal mounting kits are more adaptable to different workshop needs

    User-Friendliness and Training Requirements

    While advanced features enhance performance, they can also increase complexity. A user-friendly interface and intuitive control layout reduce training time and minimize operator errors.

    • Digital readouts improve alignment accuracy and ease of use
    • Pre-set calibration modes simplify setup procedures
    • Visual indicators help identify misalignment issues quickly

    Best practice: Opt for systems with comprehensive manuals and available technical support

    Workshop Space and Layout Compatibility

    The physical dimensions of the frame machine must fit within your facility while allowing adequate room for technician movement, tool storage, and future expansion.

    • Measure floor space including required clearance zones (minimum 3 feet around)
    • Ensure ceiling height accommodates lifting mechanisms and overhead lighting
    • Consider workflow patterns when positioning the machine

    Space-saving tip: Wall-mounted or foldable tower options can maximize usable floor area

    Budget Planning Advice: When evaluating cost, consider not only the initial purchase price but also long-term expenses such as maintenance, calibration, and potential upgrades. Investing in a slightly higher-priced machine with better build quality and warranty coverage often pays off over time through reduced downtime and improved repair accuracy.

    Usage Type Recommended Capacity Ideal Features Estimated Budget Range
    Small independent shop 10,000–15,000 lbs Adjustable anchors, digital gauges $15,000–$25,000
    Mid-sized repair center 15,000–20,000 lbs Modular design, wireless controls $25,000–$40,000
    Dealership or commercial shop 20,000+ lbs Hydraulic assist, AI diagnostics $40,000+

    DIY Guide to Installing and Operating a Frame Machine with Two Pulling Towers

    For experienced technicians, installing and operating a frame machine equipped with two pulling towers can significantly enhance the precision and efficiency of frame repair operations. These machines allow for simultaneous multi-angle pulls, which are essential for correcting complex structural damage in automotive frames.

    This comprehensive guide will walk you through each step of installation, setup, and safe operation of a dual-pulling-tower frame machine, ensuring optimal performance and safety throughout the process.

    Safety Warning: Frame machines involve high-force operations and electrical systems. Always follow manufacturer guidelines, wear appropriate personal protective equipment (PPE), and ensure all operators are properly trained before use.

    Step-by-Step Installation and Operation Guide

    1. Site Selection and Installation
      • Select a location that provides ample space for vehicle positioning, technician movement, and full range of motion for both pulling towers
      • The area should be well-ventilated and free from excessive moisture or dust that could interfere with machine electronics
      • Ensure the concrete floor is level within 1/8 inch over 10 feet to maintain measurement accuracy and machine stability
      • Verify there's adequate clearance overhead for the towers' full vertical travel and vehicle access height
      • Mark and secure the mounting points according to the manufacturer's specifications using anchor bolts
    2. Electrical and Mechanical Connections
      • Connect the main power supply following local electrical codes and the machine's voltage requirements (typically 220V-240V single-phase or 3-phase)
      • Verify frequency compatibility (50/60Hz) and install proper circuit protection as specified
      • Connect hydraulic lines or pneumatic hoses between the control unit and both pulling towers if applicable
      • Secure all cables and hoses using cable management systems to prevent tripping hazards and accidental disconnections
      • Install emergency stop buttons at accessible locations near both towers and the control panel
    3. Tower Setup and Calibration
      • Adjust tower heights based on the typical vehicle types you'll be working on, usually between 8-12 feet
      • Set horizontal positioning to accommodate various wheelbase lengths and ensure full coverage of potential pull points
      • Configure individual pulling capacities according to your shop's needs, typically ranging from 5-15 tons per tower
      • Connect the control system to both towers using shielded cables to prevent electromagnetic interference
      • Calibrate load sensors and position encoders to ensure accurate force application and measurement tracking
    4. System Testing and Validation
      • Run the built-in diagnostic program to verify communication between the control unit and both towers
      • Check for error codes and resolve any connection or calibration issues before proceeding
      • Perform a test cycle with both towers simultaneously applying light force to confirm synchronized operation
      • Conduct a trial pull on a non-critical frame section or test fixture to verify measurement accuracy and force distribution
      • Document baseline readings and make final adjustments to ensure both towers operate within ±1% of each other
    5. Safety Protocols and Operator Training
      • Implement a formal training program covering machine operation, emergency procedures, and maintenance schedules
      • Establish clear communication protocols for team members during pulling operations
      • Define restricted zones around the machine during operation to prevent unauthorized personnel access
      • Mandate the use of PPE including safety glasses, gloves, steel-toe boots, and hearing protection
      • Create standard operating procedures (SOPs) for common repair scenarios and post them prominently in the workspace
    Operation Phase Key Considerations Common Challenges Recommended Tools
    Installation Floor flatness, space requirements, environmental conditions Uneven floors causing measurement errors, insufficient workspace Laser level, measuring tape, floor preparation tools
    Connection Voltage matching, secure connections, emergency stops Incorrect wiring, loose connections, inadequate protection Voltmeter, wire strippers, cable ties, conduit
    Calibration Force synchronization, sensor accuracy, positioning limits Inconsistent readings, improper sensor setup Digital calipers, load cells, alignment fixtures
    Testing Diagnostic checks, trial pulls, documentation Rushing validation process, ignoring error codes Test fixtures, pressure gauges, data logger
    Operation Safety compliance, proper procedures, team coordination Cutting corners, inadequate training, poor communication PPE kits, SOP manuals, signage

    Professional Tip: Regularly document calibration results and maintenance logs to ensure consistent performance and aid in troubleshooting. Keep spare parts such as hydraulic seals, connectors, and sensors readily available to minimize downtime.

    Advanced Tips for Optimal Performance

    Once your dual-tower frame machine is installed and operational, consider implementing these best practices to maximize its effectiveness:

    • Develop a routine maintenance schedule including lubrication of moving parts, inspection of hydraulic/pneumatic systems, and software updates
    • Keep a detailed log of all repairs performed, noting specific parameters used for different vehicle types and damage scenarios
    • Periodically recalibrate the system to maintain measurement accuracy, especially after any significant impact or relocation
    • Invest in additional accessories like specialized clamps or adapters to expand the machine's capabilities
    • Consider integrating the frame machine with digital measurement systems for enhanced precision and data-driven repairs

    By following this comprehensive guide, you'll ensure your two-pulling-tower frame machine operates safely and effectively, providing precise repairs and increasing productivity in your automotive body shop.

    Frequently Asked Questions About Frame Machines with Two Pulling Towers

    Q1: What is the significance of having a frame machine with two pulling towers?

    A frame machine equipped with dual pulling towers offers significant advantages in terms of operational efficiency, flexibility, and precision during vehicle frame repair. These machines allow for simultaneous multi-directional pulling forces to be applied, which is especially beneficial when dealing with complex collision damage involving multiple structural points.

    The presence of two pulling towers enables technicians to:

    • Apply coordinated force from different angles without repositioning equipment
    • Work on vehicles with extensive front and rear misalignments at the same time
    • Increase accuracy by stabilizing the frame while applying corrective pulls
    • Reduce overall repair time through more efficient setup configurations

    This design makes them ideal for high-volume body shops and specialized repair centers handling a variety of vehicle types and damage severities.

    Q2: Can all vehicles be repaired using a frame machine with two pulling towers?

    While frame machines with dual pulling towers are highly versatile and capable of accommodating a wide range of vehicles, their suitability ultimately depends on several factors including:

    • Vehicle size: Extremely large commercial vehicles may exceed the machine's dimensional or capacity limits
    • Damage complexity: Severe structural compromise might require additional support systems or specialized tooling
    • Machine specifications: Maximum pulling force, tower reach, and anchoring capabilities must match the repair requirements

    Most modern passenger cars, SUVs, and light trucks can be effectively repaired using a properly rated dual-tower frame machine. Always consult the manufacturer’s guidelines and technical specifications before undertaking any repair operation to ensure safety and effectiveness.

    Q3: How does a frame machine with two pulling towers improve the repair process?

    The dual-tower configuration significantly enhances the vehicle frame straightening process in several key ways:

    1. Simultaneous Multi-Angle Repairs: Technicians can apply controlled force from two separate directions, enabling them to correct complex distortions like twist, sag, and diamond misalignment more efficiently.
    2. Increased Precision: Dual towers provide better reference points and measurement consistency, leading to improved alignment accuracy within factory tolerances.
    3. Time Efficiency: By eliminating the need to constantly reposition tools or adjust setups, repairs can often be completed faster compared to single-tower systems.
    4. Structural Stability: One tower can maintain tension while adjustments are made on the other, preventing unwanted movement during critical correction phases.
    5. Enhanced Safety: Properly configured dual-tower systems reduce the risk of sudden shifts or uncontrolled forces during pulling operations.

    These improvements translate into higher quality repairs, reduced labor hours, and greater customer satisfaction when working with moderate to severely damaged vehicles.

    Q4: What kind of training is required to operate a frame machine with two pulling towers?

    Operating a dual-pulling tower frame machine requires both foundational knowledge of automotive frame repair and specific training on the particular system being used. Key areas of training include:

    • Basic Frame Repair Principles: Understanding vehicle construction, types of frame damage (e.g., sag, twist, diamond), and proper measurement techniques.
    • Machine Operation: Learning how to set up, calibrate, and use the dual-tower system effectively for various repair scenarios.
    • Safety Protocols: Training on safe anchoring procedures, load management, and personal protective equipment (PPE) usage to prevent accidents.
    • Diagnostic Procedures: Interpreting computerized measurements and identifying primary vs. secondary damage before initiating repairs.
    • Manufacturer-Specific Features: Each brand may have unique control interfaces, hydraulic systems, or software tools that require dedicated instruction.

    Certification programs from organizations such as I-CAR or manufacturer-specific training courses are highly recommended. Ongoing education ensures technicians stay current with evolving technologies and best practices in frame repair.

    Q5: What maintenance is required for a frame machine with two pulling towers?

    To ensure consistent performance, safety, and longevity, regular maintenance of a dual-pulling tower frame machine is essential. Recommended maintenance tasks include:

    Maintenance Task Description Frequency
    Daily Visual Inspection Check for visible wear, leaks, cracks, or misalignment in towers, chains, and hydraulic components Daily
    Cleaning Remove dirt, grease, and debris from tracks, guides, and moving parts Daily/Weekly
    Lubrication Apply lubricant to pivot points, slides, and mechanical joints per manufacturer recommendations Weekly/Monthly
    Calibration Check Verify measurement systems and sensors remain accurate and aligned Monthly/Quarterly
    Hydraulic System Maintenance Inspect hoses, fittings, and fluid levels; replace filters as needed Bi-Annually
    Comprehensive Inspection Full assessment of structural integrity, electrical systems, and operational functions Annually

    Adhering to the manufacturer’s maintenance schedule not only extends the life of the equipment but also ensures that repairs meet the required safety and quality standards. Keep detailed service records and address any issues immediately to avoid downtime or compromised repairs.
