Types of Front Axle Beams and Their Applications
The front axle beam, often referred to simply as the front axle, is a critical structural component in a vehicle's chassis system. It serves as the connection point between the two front wheels and plays a pivotal role in supporting the vehicle’s weight, facilitating steering, and transferring power from the drivetrain to the wheels. Proper understanding of the different types of front axle beams is essential for maintaining optimal performance, especially when replacement or modification becomes necessary.
Front axle beams are not one-size-fits-all components; they vary significantly based on design, function, and application. The type of front axle used can greatly influence a vehicle's handling characteristics, ride comfort, and off-road capability. Below are the primary types of front axle beams commonly found in automotive engineering:
Non-drive (Dead) Axle
A non-drive axle, also known as a dead axle, does not transmit power to the wheels. Instead, it focuses on providing structural support and ensuring proper wheel alignment. This type of axle is typically found in vehicles with independent front suspension systems where the need for power transfer is minimal or handled by other means.
Advantages
- Lighter weight compared to live axles
- Reduces mechanical complexity
- Improves fuel efficiency in some applications
- Simplifies maintenance due to fewer moving parts
Limitations
- No power delivery to the wheels
- Limited traction capabilities
- Not ideal for high-torque applications
Best for: Passenger cars, light-duty vehicles, and front-wheel drive setups

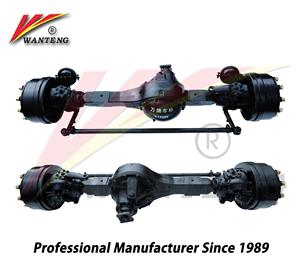

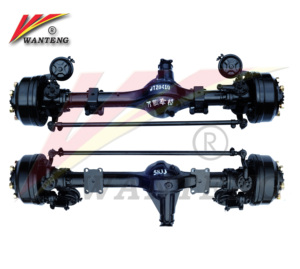

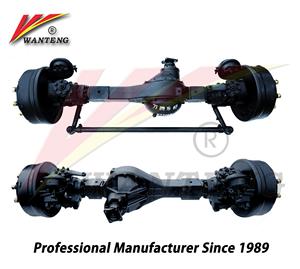

Live Axle
A live axle actively transmits torque from the engine to the front wheels, making it an integral part of the drivetrain. Unlike the dead axle, the live axle connects both front wheels via a single shaft, allowing them to rotate together while still enabling differential movement through a central differential unit.
Advantages
- Delivers power directly to the wheels
- Excellent for off-road and heavy-duty use
- Durable construction under high stress
- Cost-effective for rugged applications
Limitations
- Heavier than non-drive axles
- Potential for reduced ride comfort
- Less precise handling on uneven terrain
Best for: Trucks, SUVs, commercial vehicles, and off-road applications
Front Beam Suspension Axle
The front beam suspension axle features a rigid beam that connects both front wheels, acting as both the axle and suspension member. This simple yet effective design is widely used in budget-friendly vehicles due to its ease of manufacturing and maintenance.
Advantages
- Simple mechanical design
- Low cost of production and repair
- Robust in basic driving conditions
- Easy to service and replace
Limitations
- Limited suspension travel
- Poorer handling on rough roads
- Reduced stability at higher speeds
Best for: Entry-level passenger cars, utility vehicles, and low-speed applications
Independent Front Suspension (IFS)
The Independent Front Suspension (IFS) system allows each front wheel to move independently of the other, offering significant improvements in ride quality and handling. This modern design separates the axle function from the suspension, using control arms and joints to allow for more precise wheel movement.
Advantages
- Superior ride comfort
- Better handling on uneven surfaces
- Improved tire contact with the road
- Enhanced steering precision
Limitations
- More complex design and higher cost
- Requires more frequent maintenance
- Less durable in extreme off-road conditions
Best for: Modern sedans, sports cars, and vehicles requiring high levels of comfort and control
| Type | Main Function | Ride Quality | Traction Capability | Typical Use Case |
|---|---|---|---|---|
| Non-drive (Dead) Axle | Structural support only | Good | Low | Passenger cars, lightweight vehicles |
| Live Axle | Power transmission + support | Moderate | High | Trucks, SUVs, off-road vehicles |
| Front Beam Suspension | Basic suspension + support | Fair | Moderate | Economy cars, utility vehicles |
| Independent Front Suspension (IFS) | Advanced suspension + support | Excellent | Good | Sports cars, luxury vehicles, daily commuters |
Expert Tip: When selecting a front axle beam for performance or replacement purposes, consider the vehicle's intended usage. For example, if you frequently drive on rough terrain or haul heavy loads, a live axle may be more suitable. However, for smoother rides and better handling, an IFS system would be preferable.
Specifications and Maintenance of the Front Axle Beam
The front axle beam is a critical component of a vehicle's suspension system, responsible for supporting the front end of the vehicle and transmitting driving forces to the wheels. Proper understanding of its specifications and regular maintenance are essential for ensuring safety, performance, and longevity.
Key Specifications of Front Axle Beams
Front axle beams come with specific design parameters that must align with the vehicle’s intended use and structural requirements. Below are the most important specifications:
Load Capacity
Load capacity refers to the maximum weight a front axle beam can safely support, including both the vehicle's own weight and any cargo it carries. This specification ensures safe operation under various load conditions.
For example, if a vehicle weighs 700 kg and the expected cargo load is 300 kg, the front axle beam should have a minimum load capacity of 1,000 kg to operate efficiently and safely. Exceeding this limit can lead to deformation or failure of the axle beam and other components in the suspension system.
Beam Size
The physical dimensions of the front axle beam—including diameter, width, and length—must match the vehicle’s mounting space and suspension configuration. These measurements ensure proper fitment and optimal mechanical function.
In off-road applications, larger diameter tubes (e.g., 3-inch-diameter steel tubes) are often used to enhance strength and durability. Mismatched sizes can cause misalignment, stress concentration, and premature wear of connected parts like bushings and control arms.
Material Composition
Most front axle beams are constructed from steel, though different grades are used depending on the application. Standard vehicles typically use mild steel for cost-effectiveness and adequate strength, while high-performance or heavy-duty vehicles may use alloys like 4130 chromoly steel.
Chromoly steel offers superior tensile strength and fatigue resistance, making it ideal for demanding environments such as off-roading or racing. The choice of material significantly affects the beam’s ability to withstand torsional stress and impact loads over time.
Mounting Points
Mounting points are the locations where the front axle beam connects to the vehicle chassis and suspension system. These include bolt holes, flanges, and welded brackets designed to secure the beam in place.
Precise positioning of these points is crucial for maintaining alignment and ensuring smooth interaction between the axle, suspension components, and steering system. Improper mounting can result in vibration, uneven tire wear, and compromised handling characteristics.
| Specification | Description | Recommendation |
|---|---|---|
| Load Capacity | Determines the maximum allowable weight supported by the axle beam | Select a beam rated higher than the combined weight of the vehicle and cargo |
| Beam Diameter | Affects rigidity and strength; larger diameters offer more resistance to bending | Choose based on intended use (standard vs. off-road) |
| Material Grade | Influences durability and resistance to stress and fatigue | Use chromoly for high-stress applications |
| Mounting Configuration | Determines how the beam integrates with the chassis and suspension | Match OEM specifications or custom fabrication standards |
Maintenance Practices for Front Axle Beams
Regular maintenance of the front axle beam helps prevent costly repairs and ensures reliable vehicle performance. Here are key practices to follow:
Important: Always perform maintenance tasks with the vehicle securely supported on jack stands. Never rely solely on jacks when working underneath a vehicle. If significant damage or wear is detected during inspection, replace the front axle beam immediately to avoid risk of failure during operation.
How to Choose a Front Axle Beam
Selecting the right front axle beam is essential for ensuring your vehicle performs reliably and safely under its intended operating conditions. The front axle beam plays a critical role in supporting the weight of the front portion of the vehicle, transmitting driving torque to the wheels, and maintaining proper alignment with the suspension system.
Vehicle Requirements
The front axle must align precisely with your vehicle’s specifications. Larger, heavier vehicles such as commercial trucks or SUVs require robust axles capable of handling substantial loads and stresses. Conversely, compact cars or light-duty trucks benefit from lighter front axles that offer better fuel efficiency and maneuverability.
- Heavy-duty trucks need high-strength beams with reinforced structures
- SUVs may benefit from durable I-beam or tubular axle designs
- Passenger cars often use lightweight stamped steel or aluminum
Expert Tip: Always refer to your vehicle's manual or consult with a mechanic before purchasing an axle beam to ensure compatibility.
Material Composition
Front axle beams are typically made from either steel or aluminum, each offering distinct advantages depending on your usage needs. Steel provides excellent strength and longevity but adds significant weight. Aluminum reduces overall weight, which enhances acceleration and fuel economy, though it may not be ideal for heavy hauling applications.
- Steel axles are preferred for towing and industrial use
- Aluminum is suitable for performance-oriented or lightweight vehicles
- Hybrid materials are emerging for specialized off-road builds
Key Insight: For racing or sport vehicles, consider forged alloys for enhanced rigidity without excessive weight.
Gear Ratio Compatibility
The gear ratio of the front axle must align with the rear differential ratio to maintain balanced power delivery and drivetrain harmony. Mismatched ratios can cause premature wear, reduced efficiency, and uneven tire wear.
- Highway cruising benefits from lower ratios like 3.55
- Towing or off-road use requires higher ratios such as 4.10 or 4.56
- Performance vehicles may opt for custom gearing setups
Important Note: Always verify gear ratio compatibility when upgrading or replacing axle assemblies.
Load Capacity
The load capacity of the front axle beam should match or exceed the maximum expected load. Vehicles used for delivery, construction, or commercial purposes must prioritize high-capacity axles designed to withstand continuous stress and weight distribution.
- Delivery vans require axles rated for frequent stop-and-go cycles
- Trucks carrying heavy cargo need reinforced beam structures
- Recreational vehicles benefit from axles with balanced durability and comfort
Critical Factor: Overloading beyond the axle's rating can lead to structural failure or safety hazards.
Wheel and Tire Size Fitment
The size of your wheels and tires directly affects the type of front axle beam you should choose. Larger tires, especially those used in off-road or lifted vehicles, require axles that provide adequate clearance and structural support to prevent rubbing and damage.
- Lifted trucks often need modified or aftermarket axle beams
- Off-road vehicles benefit from widened axles for stability
- Street cars usually work best with OEM-sized components
Installation Tip: Ensure the axle beam allows proper brake caliper and rotor positioning with your wheel setup.
Driving Conditions
Your typical driving environment significantly influences the optimal front axle beam choice. Urban drivers may prioritize comfort and quiet operation, while rural or off-road users will focus more on durability and resistance to wear from rough terrain.
- Rural delivery trucks benefit from rugged I-beam designs
- City commuters prefer smooth-riding stamped steel axles
- Off-road vehicles often use solid front axles for strength
Durability Advice: In corrosive environments (e.g., coastal areas or snowy climates), look for coated or galvanized axle options.
Budget Consideration: While cost is always a factor, investing in a quality front axle beam can save money in the long run by reducing maintenance costs and improving vehicle performance. Look for reputable brands that offer warranties and proven reliability. Avoid the cheapest option if it compromises on material quality or engineering standards.
| Use Case | Recommended Material | Typical Load Rating | Best For |
|---|---|---|---|
| Light passenger vehicles | Stamped steel or aluminum | 1,500–2,500 lbs | Daily commuting, city driving |
| Mid-size trucks | Forged steel | 3,000–5,000 lbs | Weekend hauling, mild off-roading |
| Heavy-duty trucks | High-strength alloy steel | 5,000–10,000+ lbs | Commercial use, towing, rugged terrain |
| Off-road/ATV vehicles | Reinforced alloy or chromoly | Varies by application | Trail riding, extreme conditions |
DIY Replacement Guide for Front Axle Beam
Replacing a front axle beam is a task that many DIY mechanics can tackle with the right tools, knowledge, and preparation. Whether your vehicle has sustained damage from off-roading or wear over time, replacing the front axle beam ensures continued safe operation and optimal performance. This comprehensive guide walks you through each step of the process while offering expert tips to avoid common mistakes.
Safety Warning: Working under a lifted vehicle poses serious risks. Always use proper lifting equipment and secure jack stands. Wear safety glasses and gloves, and never rely solely on a floor jack to support the vehicle during work.
Step-by-Step Replacement Process
- Prepare the Vehicle
- Park the vehicle on a flat, level surface and engage the parking brake to prevent movement.
- Chock the rear wheels securely to ensure additional stability.
- Loosen the lug nuts on the affected wheel before lifting the vehicle.
- Use a quality floor jack to lift the front end of the vehicle, then place sturdy jack stands beneath designated jacking points.
- Once secure, remove the wheel and hub assembly completely to gain full access to the axle components.
This initial phase sets the foundation for safe and efficient work. Take photos of the current setup for reference during reassembly.
- Disconnect the Steering System
- Locate the tie rod ends connecting the steering knuckle to the rack-and-pinion system.
- Depending on your vehicle model, loosen the castle nut or cotter pin securing the tie rod end.
- Use a specialized tie rod separator tool or a ball joint press to safely disconnect the tie rod from the steering knuckle.
- Securely fasten disconnected components to prevent them from hanging freely or causing damage.
Proper disconnection ensures there's no stress placed on steering components when removing the axle beam.
- Remove the Suspension Components
- Identify and label all suspension linkages connected to the front axle beam, such as upper and lower control arms or A-arms.
- Using the appropriate socket set, remove bolts securing these components to the axle.
- Support the detached suspension arms with jack stands or bungee cords to prevent sudden drops or damage to bushings.
- Take note of any shims or alignment spacers that may be in place, as these need to be reinstalled in their original positions.
Organizing parts as you go will help streamline reassembly and reduce the chance of misplacing critical hardware.
- Disconnect the Differential
- Place a drain pan beneath the differential housing and remove the fill plug or drain bolt to empty the gear oil.
- Unbolt the differential from the front axle beam by removing mounting bolts and carefully separating the two components.
- If applicable, disconnect the driveshaft from the differential yoke using a breaker bar and socket.
- Label and store all removed hardware in a labeled container for easy retrieval later.
Be cautious not to spill gear oil onto painted surfaces. Clean up spills immediately to avoid damage.
- Unbolt the Front Axle
- Locate the frame mounts where the front axle beam connects to the vehicle’s chassis or frame.
- Using the correct tools, remove all mounting bolts securing the axle beam to the frame.
- With assistance if necessary, carefully slide or lower the old axle beam out of position.
- Inspect the surrounding area for signs of wear, rust, or damage that might affect installation of the new unit.
The weight of the axle beam can vary significantly depending on the vehicle type, so always use proper lifting techniques or mechanical assistance.
- Install the New Front Axle
- Position the new front axle beam into place, ensuring it aligns properly with the mounting points on the frame.
- Insert and hand-tighten all mounting bolts before fully torquing them to specifications.
- Reconnect the differential to the new axle beam, using new gaskets or seals if required.
- If applicable, reinstall the driveshaft and secure it with the proper torque settings.
Refer to your vehicle’s service manual for specific torque values and sequence to avoid over-tightening or damaging components.
- Reassemble the Suspension and Steering System
- Reattach the control arms or suspension beams to the new axle beam using original hardware or replacements if needed.
- Reconnect the tie rod ends to the steering knuckles, ensuring they are properly seated and secured with lock nuts or cotter pins.
- Refit the wheel hub assembly and install the rotor and brake caliper if removed.
- Torque all bolts and double-check connections to ensure everything is secure and aligned correctly.
Incorrect reassembly can lead to handling issues or premature component failure, so take extra care during this stage.
- Complete the Front Axle Replacement
- Lower the vehicle slowly from the jack stands and remove all supports.
- Properly torque the wheel lug nuts to the manufacturer's recommended specification using a star pattern.
- Start the engine and check for unusual noises, vibrations, or fluid leaks.
- Take the vehicle for a short test drive at low speeds to assess handling and steering responsiveness.
- After testing, recheck all bolt torques and fluid levels (especially differential oil), topping off as needed.
A thorough post-installation inspection helps identify any overlooked issues before they become bigger problems.
| Replacement Phase | Critical Tasks | Common Mistakes | Tools Required |
|---|---|---|---|
| Preparation | Lifting vehicle safely, removing wheel/hub assembly | Insecure jack stands, skipping chocks | Floor jack, jack stands, lug wrench |
| Steering Disconnection | Labeling and removing tie rod ends | Damaged threads, improper tools | Tie rod separator, socket set, torque wrench |
| Suspension Removal | Removing control arms, supporting components | Forgetting shims, unsupported arms | Breaker bar, bungee cords, marker |
| Differential Work | Draining oil, disconnecting driveshaft | Oil spills, incorrect reinstallation | Drain pan, socket set, replacement gaskets |
| Installation & Reassembly | Aligning new axle, reconnecting systems | Misalignment, missed torque specs | Service manual, torque wrench, alignment tools |
DIY Tip: Before installing the new axle beam, clean and inspect all mating surfaces. Replace worn bushings and consider applying anti-seize compound to bolts for easier future removal.
Front Axle Q&A
The front axle is a critical component found in various types of vehicles, particularly those designed for durability and load-bearing capabilities. While many modern cars use independent suspension systems, the front axle beam remains a staple in:
- Heavy-duty trucks – These vehicles require robust construction to handle high payloads and demanding workloads.
- Off-road vehicles – Designed to withstand rough terrains, such as SUVs and rugged utility vehicles, where strength and reliability are essential.
- Commercial vehicles – Delivery trucks, dump trucks, and other commercial transport vehicles often rely on solid front axles for enhanced stability and load distribution.
- Classic or vintage automobiles – Older vehicle models frequently utilized front axle beams due to their simplicity and ease of maintenance.
This design provides structural integrity and ensures even weight distribution across both front wheels, making it ideal for challenging environments and heavy usage scenarios.
An axle beam, also known as a solid front axle or beam axle, is a rigid shaft that connects the two front wheels of a vehicle. It plays a crucial role in the vehicle's mechanical structure by performing multiple functions:
- Weight support – The axle beam carries a significant portion of the vehicle’s front-end weight, transferring it evenly to both wheels.
- Driving mechanism – In rear-wheel-drive vehicles, the axle beam may be part of the drivetrain system, transmitting power from the differential to the wheels.
- Suspension integration – It works in conjunction with suspension components like leaf springs or control arms to maintain wheel alignment and absorb road shocks.
This type of axle is commonly used in applications where strength and simplicity outweigh the need for advanced ride comfort or handling precision, such as in off-road and commercial vehicles.
Front axles come in several configurations, each tailored to specific performance requirements and vehicle applications. The three primary types include:
| Type of Front Axle | Description | Typical Use Cases |
|---|---|---|
| Solid Front Axle (Beam Axle) | A single rigid beam connecting both front wheels. Offers excellent durability and load capacity but limits independent wheel movement. | Commonly used in trucks, SUVs, and off-road vehicles where ruggedness is more important than refined ride quality. |
| Independent Front Axle | Each wheel operates independently through separate suspension components, allowing better handling and ride comfort. | Favored in modern passenger cars, sports vehicles, and luxury sedans where smooth driving dynamics are prioritized. |
| Stub Axle | A smaller, pivoting axle section connected to the main beam, primarily used in older steering designs. | Historically used in classic automobiles with beam front axles, now largely replaced by modern independent systems. |
Choosing the right front axle depends on factors such as intended use, terrain conditions, load requirements, and desired driving experience.
