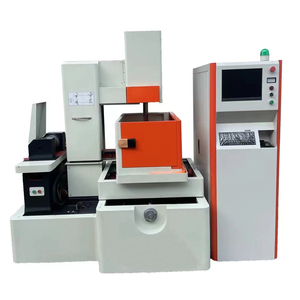

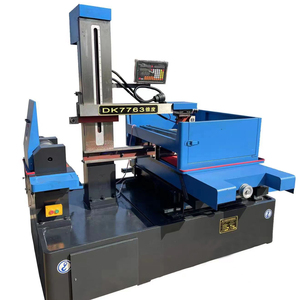

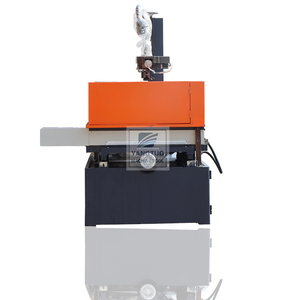

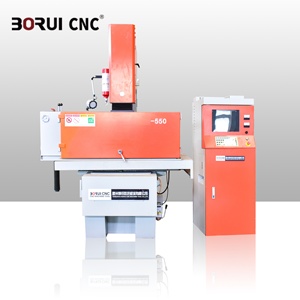

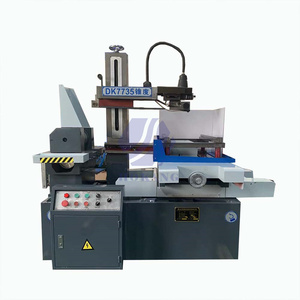

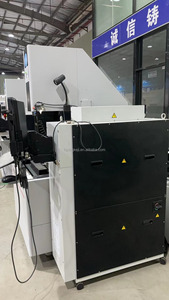

High speed wire cut edm

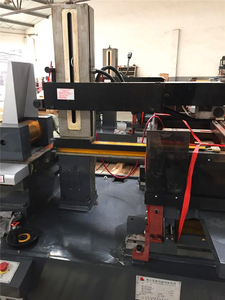

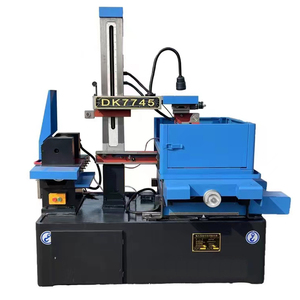

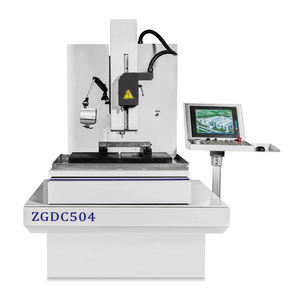

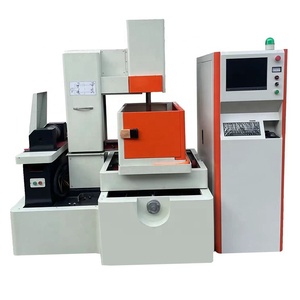

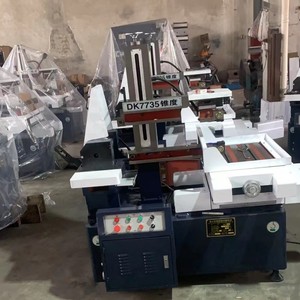

The high-speed wire cut EDM, also known as wire EDM, is an advanced machining process that utilizes electrical discharge to cut intricate shapes in conductive materials. A high-speed wire cut EDM features an electrode wire that is continuously fed through the workpiece, creating precise and complex cuts. This technology is widely used in industries that demand high-precision components, such as aerospace, medical, and automotive. The wire EDM cutting speed is controlled by various factors to achieve optimal results.

Factors Affecting Wire EDM Cutting Speed

The wire EDM cutting speed is determined by multiple factors that must be carefully considered to achieve an effective and efficient machining process. One of the key factors is the material being machined. Different conductive materials, such as steel, aluminum, and titanium, have distinct electrical and thermal properties that impact the wire EDM speed. Harder materials may require slower cutting speeds to maintain accuracy and surface finish. Additionally, the wire material itself plays a crucial role. Wire EDM speed can be influenced by the diameter, material composition, and even the wire's surface condition. Thinner wires typically allow for higher cutting speeds but may be more prone to breakage. Therefore, the choice of wire material and diameter is essential in determining the optimal cutting speed.

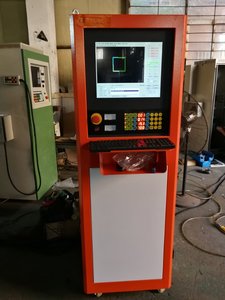

Another critical factor in wire EDM cutting speed is the flushing method used during the machining process. Flushing helps remove debris and maintain a stable machining environment. Different flushing techniques, such as wire EDM speed, influence the cutting speed. For instance, using deionized water as a dielectric fluid can enhance the cutting speed by improving the electrical discharge and flushing away the eroded material. The type of dielectric fluid and its circulation rate directly impact the wire EDM speed and overall process efficiency. Some advanced high-speed wire EDM machines are equipped with features like automatic wire threading and tension control, further enhancing the cutting speed and overall performance. The software used to program the machining process also plays a crucial role in optimizing the wire EDM speed. Advanced CAM software allows for the generation of efficient cutting paths and precise control over cutting parameters, contributing to increased cutting speed and improved accuracy.

Applications of High-Speed Wire Cut EDM

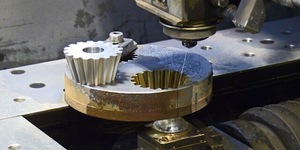

The high-speed wire cut EDM offers a wide range of applications across various industries. From aerospace to medical device manufacturing, this technology is indispensable in producing intricate and high-precision components. In the aerospace industry, the wire EDM is commonly used to machine complex profiles, such as turbine blades, engine components, and aircraft structural parts. The medical industry relies on wire EDM for producing precision surgical instruments, implants, and micro-components. The automotive sector utilizes wire EDM for cutting molds, dies, and engine components with tight tolerances. The electronics industry benefits from wire EDM for manufacturing intricate circuit boards, connectors, and sensors.

Additionally, the high-speed wire cut EDM finds applications in the tool and die industry for producing molds, extrusion dies, and stamping tools. The energy sector uses wire EDM for machining components in power generation equipment. In the jewelry industry, wire EDM is utilized to create intricate and detailed designs in precious metals. The technology also finds applications in the production of aerospace and automotive prototypes. The versatility, precision, and repeatability of high-speed wire EDM make it a valuable asset in industries where complex and precise machining is critical.
