Types of Injector Assembly Disassembly Tool Kits
An injector assembly disassembly tool kit is a specialized set of tools designed for the safe and efficient removal and reassembly of fuel injectors in both gasoline and diesel engines. These kits are essential for automotive technicians and DIY mechanics aiming to maintain or upgrade engine performance. Proper use of these tools ensures minimal damage to sensitive engine components while enhancing productivity during injector servicing.

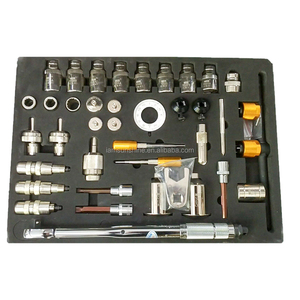

Common Rail Injector Puller Kit
This type of tool kit is specifically engineered for diesel engines with common rail fuel systems. It enables the safe extraction of stubborn or seized injectors without harming surrounding components such as cylinder heads or intake manifolds.
Advantages
- Designed for heavy-duty diesel applications
- Includes slide hammers, pullers, and adapters
- Prevents damage to engine components
- Versatile for removing other stuck parts like bolts and seals
Limitations
- Limited use for non-diesel engines
- May require additional lubrication for stuck injectors
- Heavier and bulkier than standard tool sets
Best for: Diesel vehicles, professional repair shops, heavy equipment maintenance
Fuel Injector Cleaning Kit
A Fuel Injector Cleaning Kit is used to clean and restore the performance of both gasoline and diesel fuel injectors by removing carbon deposits, varnish, and debris that accumulate over time due to fuel combustion.
Advantages
- Improves engine performance and fuel efficiency
- Reduces harmful emissions
- Restores proper spray patterns and flow rates
- Comes with cleaning solvent, pressure machine, and adapters
Limitations
- Not suitable for severely clogged or damaged injectors
- Requires proper ventilation and protective gear
- Periodic cleaning may be necessary for optimal results
Best for: Routine maintenance, emission testing preparation, improving fuel economy

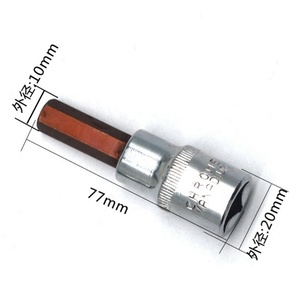

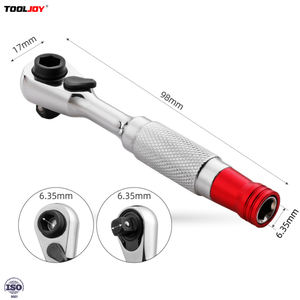

Injector Socket Set
Injector socket sets are precision-engineered tools tailored for installing and removing fuel injectors from their mounting locations. They typically include sockets of varying sizes along with ratchets, extensions, and torque wrenches to ensure accurate fastening and access in tight spaces.
Advantages
- Custom-sized sockets fit various injector types
- Includes tools for tightening to manufacturer specifications
- Saves time and prevents stripping of injector nuts
- Often includes fuel line wrenches and seal installers
Limitations
- May not cover all vehicle makes and models
- Requires basic mechanical knowledge
- Additional tools may still be needed for full service
Best for: DIY mechanics, compact engine bays, regular injector servicing
| Type | Primary Use | Key Components | Recommended For | Special Features |
|---|---|---|---|---|
| Common Rail Injector Puller Kit | Removing stuck diesel injectors | Slide hammer, pullers, adapters | Diesel engines, professional workshops | Non-destructive removal |
| Fuel Injector Cleaning Kit | Cleaning clogged injectors | Cleaning solvent, pressure pump, adapters | Gasoline/diesel engines, routine maintenance | Flow restoration, emission reduction |
| Injector Socket Set | Installation/removal of injectors | Sockets, ratchets, extension bars, torque wrench | All vehicles, home mechanics | Precision fastening, easy access |
Expert Tip: Always refer to your vehicle's service manual for specific injector removal and installation procedures. Using the correct tool for each step helps prevent costly mistakes and ensures long-term reliability of your fuel system.
Specifications and Maintenance of Injector Assembly Disassembly Tool Kits
The injector assembly disassembly tool kit is a critical set of tools used in diesel engine maintenance to safely remove and install fuel injectors. Proper understanding of its specifications and regular maintenance are essential for ensuring reliable performance, prolonging the life of the tools, and preventing damage to sensitive engine components.
Key Specifications to Consider
Before purchasing or using an injector assembly disassembly tool kit, it’s important to understand the technical specifications that determine its suitability for different engines:
Tool Material Quality
High-quality tool kits are typically made from hardened steel or chrome-molybdenum alloys, which provide durability and resistance to wear under high-torque applications.
Cheaply constructed tools may be prone to bending, chipping, or breaking when used on stubborn or corroded injectors, increasing the risk of engine component damage or injury.
Compatibility with Injector Types
Injector disassembly tools vary depending on the type of fuel injection system — common rail, direct injection, or unit injectors. Each system requires specific tool designs to ensure proper fit and engagement.
Always verify that the tool kit is compatible with your vehicle's make, model, and engine type before purchase or use.
Size Range and Interchangeability
A well-designed tool kit includes interchangeable adapters and sockets to accommodate various injector sizes across different engine platforms.
This versatility allows technicians to handle multiple jobs without needing separate tool sets, improving efficiency and reducing costs.
Ergonomic Design
Tools with ergonomic handles and non-slip grips reduce user fatigue and improve torque application accuracy, especially during repetitive tasks.
This feature is particularly beneficial in professional environments where mechanics work long hours and need to maintain precision.
| Specification | Importance | Selection Tips |
|---|---|---|
| Metal Hardness (Rockwell Rating) | High | Select tools rated at least HRC 45-50 for durability and resistance to deformation under pressure. |
| Corrosion Resistance | Medium | Look for chrome-plated or coated tools that resist rust and oil buildup. |
| Adapter Variety | High | Ensure the kit includes multiple socket sizes and extensions for universal compatibility. |
| Kit Case Quality | Medium | Choose kits with durable, organized cases that protect tools and help keep them easily accessible. |
Essential Maintenance Practices
To maximize the lifespan and effectiveness of your injector assembly disassembly tool kit, follow these best practices for routine care:
Important: Never force a tool onto an injector if it doesn’t fit properly. Doing so can cause permanent damage to both the tool and the engine component. Instead, double-check the compatibility or consult service manuals for correct procedures.
How to Choose an Injector Assembly and Disassembly Tool Kit
Selecting the right injector assembly and disassembly tool kit is crucial for ensuring efficient, accurate, and safe maintenance of fuel injectors. Whether you're a professional mechanic or a DIY enthusiast, choosing the right tools will enhance your productivity and prolong the life of both the tools and the components you work on.
Compatibility with Vehicle Models
The versatility of your toolkit begins with its compatibility. A high-quality injector tool kit should support a wide range of vehicle makes and models, including popular domestic and international brands such as Ford, Toyota, BMW, and more.
- Look for kits that include adapters for various injector types (e.g., EV6, EV14, USCAR)
- Ensure the set supports both gasoline and diesel systems if needed
- Check for inclusion of tools for common rail and direct injection systems
Pro Tip: Review manufacturer specifications and customer feedback for real-world compatibility insights
Material Quality and Durability
Injector tools are subjected to high precision work and must maintain their integrity under repeated use. The materials used in construction play a major role in performance and longevity.
- High-grade chrome vanadium steel ensures strength and corrosion resistance
- Heat-treated components provide enhanced durability and wear resistance
- Surface finishes like black oxide or nickel plating prevent rust and improve visibility
Important: Avoid plastic or composite parts that may crack under pressure or heat exposure
Set Size and Versatility
The size of the tool kit determines how many different tasks it can handle. Larger kits offer greater flexibility but may be cumbersome, while smaller kits prioritize portability at the expense of specialization.
- Entry-level kits typically contain 10–15 pieces for basic injector service
- Professional sets may include over 30 tools covering multiple injector types and configurations
- Specialized tools like O-ring pickers, spring compressors, and alignment guides are essential for complex jobs
Recommendation: Consider your typical workload before selecting the ideal set size
Ergonomics and User Comfort
Injector disassembly often involves repetitive motions and fine detail work. Tools designed with ergonomics in mind reduce fatigue and minimize the risk of injury from prolonged use.
- Soft-grip handles absorb shock and reduce hand strain
- Non-slip surfaces ensure secure handling even with oily hands
- Well-balanced tools allow precise control during delicate operations
Key Feature: Look for dual-material grips that combine comfort with durability
Storage Case Features
A durable case not only protects your investment but also contributes to organization and efficiency in the workshop or on-site location.
- Rugged polymer cases with reinforced corners withstand transport stress
- Foam inserts with labeled compartments keep tools organized and easily accessible
- Integrated latches or locks prevent accidental opening and loss of small components
Bonus: Cases with modular designs allow expansion or integration with other tool storage systems
Budget and Value for Money
While budget considerations are important, investing in a quality tool kit pays off in the long run through reliability, reduced downtime, and fewer replacements.
- Entry-level kits start around $100–$150 for basic functionality
- Mid-range kits ($200–$300) offer good balance between cost and features
- Premium kits ($400+) include advanced tools and extended warranties
Smart Buy: Prioritize kits with replacement part availability and solid warranty coverage
Buying Advice: Before purchasing, research online reviews and consult forums where mechanics share real-world experiences. Also, check if the brand offers technical support or instructional videos for proper usage of specialized tools. It’s often worth spending a little more upfront for a well-reviewed kit that will last years rather than replacing cheaper, lower-quality alternatives repeatedly.
| User Type | Recommended Kit Type | Tool Count | Price Range |
|---|---|---|---|
| Home hobbyist | Basic set | 10–15 pieces | $90–$150 |
| Garage mechanic | Mid-range set | 20–25 pieces | $180–$250 |
| Professional technician | Full-featured set | 30+ pieces | $300–$450 |
| Specialty shop | Custom modular set | Customizable | $500+ |
How to DIY and Replace Injector Assembly Disassembly Tool Kit
Replacing or servicing fuel injectors is a critical task that requires mechanical knowledge, the right tools, and strict adherence to safety protocols. Gasoline is highly flammable, so working in a controlled environment with proper precautions is essential. Whether you're dealing with a gasoline or diesel engine, the general steps remain similar. This guide walks you through the complete process of using an injector assembly disassembly tool kit for replacing fuel injectors, ensuring both performance and safety are maintained.
Safety Warning: Fuel injectors operate under high pressure and involve handling flammable liquids. Always work in a well-ventilated area, wear protective eyewear and gloves, and keep fire extinguishing equipment nearby to prevent accidents.
Step-by-Step Guide to Replacing Fuel Injectors Using a Disassembly Tool Kit
- Gather the Necessary Tools and Materials
- Injector assembly disassembly tool kit (specific to your vehicle’s make and model)
- Basic hand tools: wrenches, screwdrivers, torque wrench
- Clean rags, lint-free cloths, and fuel-safe cleaning solution
- New injector O-rings or seals
- Fuel-safe container for draining residual fuel
- Camera or smartphone for documenting connections
Ensure all components are clean and ready before beginning the replacement process. Having everything at hand will streamline the workflow and reduce chances of mistakes or contamination.
- Implement Safety Precautions
- Work in a well-ventilated space away from open flames or sparks
- Wear eye protection and chemical-resistant gloves
- Keep a fire extinguisher within reach
- Avoid using power tools that may create sparks near fuel lines
These precautions are crucial since even small amounts of spilled fuel can pose significant risks during the process.
- Disconnect the Battery
- Turn off the ignition and remove the key
- Locate the negative terminal on the battery and disconnect it using a wrench
- This prevents accidental electrical discharge and protects sensitive systems
Always wait a few minutes after disconnecting the battery to allow any residual charge in the system to dissipate.
- Release Fuel System Pressure
- Locate the fuel rail on top of the engine—usually found beneath the intake manifold cover
- Identify the Schrader valve or pressure relief port on the fuel rail
- Wrap a rag around the valve and depress it gently to release pressure
- Collect any residual fuel in a suitable container
Failure to relieve pressure can result in dangerous fuel spray when removing the injectors.
- Remove Electrical Connections
- Locate the wiring harness connected to each fuel injector
- Take photos of the layout and connections for easy reassembly later
- Press the locking tab and carefully disconnect each connector
Label each connector if possible to avoid confusion during reinstallation.
- Access the Fuel Injectors
- In many vehicles, the intake manifold must be removed to access the injectors
- Follow the manufacturer's instructions for removal and marking bolt locations
- Use a torque wrench to loosen bolts evenly and avoid warping surfaces
Be cautious not to damage surrounding sensors or vacuum lines during removal.
- Use the Injector Assembly Disassembly Tool
- Select the appropriate adapter from your tool kit based on your injector type
- Securely attach the tool to the fuel rail or individual injectors as instructed by the tool’s manual
- Lift or slide the injectors out of their ports carefully using the tool
The disassembly tool helps safely remove injectors without damaging them or the engine components.
- Clean the Injector Ports
- Use a clean rag and fuel-safe cleaner to wipe the injector ports thoroughly
- Remove carbon deposits, dirt, or debris that could interfere with the new injectors’ performance
A clean installation ensures optimal fuel delivery and reduces the risk of clogs or leaks.
- Install New Fuel Injectors
- Apply a small amount of clean engine oil to the O-rings or seals of the new injectors
- Insert each injector into its corresponding port, ensuring it seats properly
- Double-check that the O-rings are snug and undamaged
Improper seating can lead to fuel leaks or poor engine performance.
- Reinstall the Injector Assembly Disassembly Tool
- If the fuel rail was removed with the tool, use it again to reinstall the rail onto the injectors
- Ensure the rail is seated correctly and all connections are tight and secure
Make sure no clips or fasteners are missing or improperly installed.
- Reconnect Electrical Connections
- Refer to the photos taken earlier to reconnect each electrical harness accurately
- Ensure connectors click into place and are fully secured
Incorrect connections can cause misfires or check engine lights.
- Reinstall the Intake Manifold
- Replace gaskets if necessary and align the manifold carefully
- Tighten bolts to the manufacturer's specified torque settings in the correct sequence
Using the correct torque values prevents warping and ensures a proper seal.
- Final Steps and Testing
- Reconnect the battery terminals securely
- Inspect all connections, especially fuel lines and injectors, for leaks
- Start the engine and let it idle for several minutes to prime the fuel system
- Monitor for unusual noises, fuel leaks, or warning lights
It’s normal for the engine to run slightly rough initially as it adjusts to the new injectors.
DIY Tip: Before starting the engine, turn the ignition key to the "On" position for a few seconds to allow the fuel pump to pressurize the system. Repeat this a couple of times before starting the engine to ensure smooth operation.
| Stage | Key Actions | Potential Issues | Recommended Tools |
|---|---|---|---|
| Preparation | Tool selection, battery disconnection, pressure release | Misidentification of parts, improper pressure release | Battery wrench, fuel pressure gauge, camera |
| Disassembly | Removing manifold, disconnecting wiring, using disassembly tool | Damaged connectors, stripped bolts | Socket set, screwdrivers, injector tool kit |
| Installation | Port cleaning, O-ring lubrication, injector insertion | Leaky seals, misalignment | Cleaning solvent, lint-free rags, engine oil |
| Reassembly | Reconnecting wiring, manifold reinstallation, leak checks | Loose connections, incorrect torque | Torque wrench, electrical tester |
| Testing | Engine start-up, leak inspection, system monitoring | No-start condition, fuel odor | Fire extinguisher, multimeter |
Frequently Asked Questions
An injector assembly disassembly tool kit is a specialized set of precision tools designed to assist mechanics and technicians in safely and efficiently assembling and disassembling fuel injectors, including both gasoline and diesel fuel injector systems. These kits typically include various sockets, drivers, clamps, and holders tailored to fit different types of injectors without causing damage during maintenance or repair.
Using such a kit ensures that critical components like nozzles, pintles, and internal valves are handled properly, reducing the risk of misalignment, breakage, or contamination. These tools are essential for professionals and advanced DIYers who perform regular injector servicing or upgrades.
While it's possible to clean fuel injectors manually using appropriate solvents and brushes, an injector cleaning machine offers significant advantages, especially in professional automotive repair shops or high-volume maintenance environments. These machines use ultrasonic technology or pressurized cleaning solutions to remove carbon deposits, varnish, and other contaminants more thoroughly than manual methods.
The benefits of using an injector cleaning machine include:
- Improved Engine Performance: Clean injectors ensure optimal fuel atomization and delivery, restoring lost power and responsiveness.
- Better Fuel Efficiency: Unclogged injectors contribute to more efficient combustion and reduced fuel consumption.
- Time Savings: Automated cleaning processes reduce labor time compared to manual cleaning techniques.
- Diagnostics Capabilities: Some advanced machines can test injector flow rates and spray patterns to identify faulty units.
For occasional home use, manual cleaning may suffice, but for consistent performance and reliability, especially on modern engines with tight tolerances, an injector cleaning machine is highly recommended.
Most injector disassembly tools are specifically engineered for fuel injectors and should not be used on unrelated engine components. These tools are designed with precise dimensions and materials to protect delicate injector parts during removal and reassembly. Using them improperly on other components could lead to stripped threads, damaged surfaces, or improper torque application.
However, some tool kits may contain versatile pieces suitable for small-scale engine work if clearly labeled and tested for compatibility. Always refer to the manufacturer’s guidelines before repurposing any specialized tool. If you're unsure, it's best to invest in general-purpose tools rather than risking damage by using injector-specific tools outside their intended function.
Yes, replacing seals and O-rings during fuel injector assembly is absolutely essential for maintaining proper engine function and preventing fuel leaks. Over time, these rubber or silicone components degrade due to exposure to heat, fuel, and engine oils, losing their elasticity and sealing capability.
Failure to replace old or worn seals can result in:
- Fuel Leaks: Potentially dangerous under the hood or in the fuel rail area.
- Poor Engine Performance: Inconsistent fuel delivery leading to misfires or rough idling.
- Increased Emissions: Due to incomplete combustion caused by leaking or inefficient injectors.
- Engine Damage: Prolonged leakage can cause carbon buildup or even fire hazards in extreme cases.
To ensure reliable operation, always install fresh, OEM-quality or high-grade aftermarket seals and O-rings when working on fuel injectors. This simple step significantly contributes to long-term engine health and performance.
Absolutely — an injector assembly disassembly tool kit can be very useful for DIY enthusiasts tackling fuel injector maintenance, upgrades, or replacements at home. However, because fuel injectors are precision-engineered components, proper handling and technique are crucial to avoid damaging them or compromising engine performance.
If you're considering DIY injector work, here are some tips:
- Start Simple: Begin with basic tasks like replacing injector O-rings or cleaning external surfaces before attempting full disassembly.
- Use Proper Tools: Ensure your tool kit includes all necessary adapters and bits for your specific injector type (e.g., Bosch, Delphi, Denso).
- Work in a Clean Environment: Contamination from dirt or debris can ruin injectors, so keep your workspace clean and organized.
- Follow Manufacturer Instructions: Refer to service manuals or online guides for your vehicle model to understand the correct procedures.
- Test After Reassembly: Use a test bench or flow tester if available to verify injector function before reinstalling them into the engine.
While experienced DIYers can achieve excellent results, complex injector repairs or calibration should generally be left to professionals unless you have the proper knowledge and equipment. Safety and accuracy are paramount when dealing with fuel system components.
