About jinhe led display module

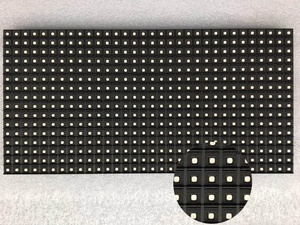

Types of Jinhe Led Display Module

The Jinhe LED display module is made in various types to suit different display requirements and functional applications. Every type has strengths, making it appropriate for certain purposes depending on the environment it is to be used in.

P2.5 LED Display Module

This model P2.5 LED display module is great for applications that require excellent resolutions, such as indoor advertising, control rooms, and conference centers. The 2.5 mm pixel pitch gives fine image quality, which enables it to display clear videos and graphics, even at close viewing distances. It is good for businesses in areas where high-definition displays are in great demand.

P4 LED Display Module

The Jinhe P4 LED display module strikes a good balance between clarity and costs for indoor applications. A pixel density of 4 mm is generally suitable for moderate viewing distances. Users find this module ideal for large venue displays, indoor events, and retail advertising, where quality and affordability must be considered.

P5 LED Display Module

For more significant indoor display areas, the Jinhe P5 LED display module is a cost-effective indoor solution. With a pixel pitch of 5 mm, this display performs well in situations that demand big screens viewed from a distance. Common applications include corporate events and sports arenas, where economy and dependability matter most.

P6 LED Display Module

The pixel pitch of the P6 module is 6 mm, making it suitable for large indoor displays and venues with high foot traffic. It is relatively affordable for suitable applications in trade shows and large gatherings and provides adequate resolution for close-range viewing. It is compatible with most of these indoor LED screen cabinets.

P3 Outdoor Module

The P3 outdoor LED display module is intended for outdoor use in advertising and event broadcasting. This model is a strong module with a 3 mm pixel pitch for good visual quality and weather resistance. Its applications cover a wide range of outdoor environments, including billboards and sports arenas, where durability is needed.

P4 Outdoor Module

Designed for outdoor use, the P4 outdoor LED display module provides reliability and performance for clear and bright advertisements. The 4 mm pixel pitch balances clarity and distance, making it ideal for outdoor advertising and public displays. This module's robust design keeps it safe from environmental elements.

P5 Outdoor Module

A standard product for outdoor advertising, the Jinhe P5 outdoor LED display module, provides excellent performance at an affordable price. This model can be used for large-scale installations because of its pixel pitch of 5 mm, which offers good visibility from a distance. It is durable and reliable for long periods of operation outside.

P6 Outdoor Module

The P6 module allows large areas to be viewed from great distances, making it an outdoor solution that is cost-effective and practical, especially for large projects. It withstands adverse weather conditions and is designed to suit outdoor environments with moderate weather. This model performs well in installations with long viewing ranges, such as billboards and stadiums.

When choosing a type of Jinhe LED display module, customers must consider the required spatial resolution, setting, and intended use to achieve the desired display performance in their application.

Specifics of Commercial Applications of the Jinhe Led Display Module

These LED display modules have been widely used in many commercial applications.

Indoor Led Display Modules

They create vibrant indoor environments for retail stores and event arenas. The indoor modules provide excellent resolution, ideal for displaying advertisements, live events, and brand promotions. Indoor venues demand high image clarity, where close viewing distances require finer pixel pitches.

Outdoor Led Display Modules

They are intended for demanding environments outdoors, such as billboards and stadiums. Designed with weather-resistant casings, the outdoor P3, P4, P5, and P6 modules keep clear images in adverse weather conditions. Outdoor modules are excellent for large venues needing long-range visibility because of their proper pixel pitch and superior brightness.

Advertising Led Display Modules

Digital billboards and LED screens can use it to transform how companies advertise their products. Dynamic advertising, which can be changed quickly to suit different marketing campaigns, will give them an edge over static ads. LED modules allow colorful and eye-popping displays, attracting potential customers' attention.

Event And Stage Led Display Modules

The indoor LED screen manufacturing plant uses these modules widely in live events, concerts, and corporate arenas. Due to their great brightness and dynamic range, these modules provide stunning backgrounds for performances or presentations. Jinhe display modules are reliable, high-quality, and quick to set up, making them ideal for temporary and permanent event setups.

Broadcasting Led Display Modules

Used in broadcasting studios and control rooms, these modules need the highest resolution for live transmission. Due to their accuracy in color and detail, the display modules deliver smooth and seamless broadcasts, critical factors in TV and live event production.

Gaming Electricity Display Module

Integrated into large screens in gaming venues and arenas for a more immersive entertainment experience. These modules can produce high-quality images and fast refresh rates, paramount in providing seamless and interactive gaming displays.

Product Specifications and Features

Technical Specifications for Jinhe Led Display Module

  • Pixel Pitch: 2.5-6 mm
  • Pixel Configuration: SMD 3 In 1
  • Refresh rate: 800 Hz/sec
  • Brightness: 600-1200 cd/m2
  • Viewing angle: 160 (H) 140 (V)
  • Cabinet size: 576 mm by 576 mm
  • Power consumption: 300W (Max), 100W (Ave)
  • Resolution: 2304 pixels x 1152 pixels
  • Material: Aluminum Cabinet
  • Indication: Gray Level, 16 Bit
  • Lifetime: 100,000 hours

How to Install

  • Preparation: Clearly set up the mounting structure and make necessary power and data connections. Prepare the area of installation and ensure adequate wiring and supports for the module.
  • Mounting: Enclose the module within the cabinets and secure it physically to the mounting frame. Ensure it is firmly in place and aligned straight with neighboring modules.
  • Connection: Connect the data cables from the main controller to each of the modules in a daisy-chain manner. Ensure power cables connect correctly to the module feeding power through.
  • Configuration: Set up the software for the modules and calibrate brightness and color. Adjust the display settings to match the screen size and resolution necessary for the intended use.
  • Testing: Turn on the device to test. Check that each module is working well and displaying an image. Remedy any malfunctions or errors found in this step.
  • Securing: Once tested, secure all wiring neatly and tighten any casing covers that may protect the internal components for safety and a nice look finish.

Maintenance and Repair

  • Regular Maintenance: Maintenance should be done in a regular manner through proper procedures, such as scheduled cleaning and inspections. Dust and debris must be cleaned with a soft cloth to avoid overheating. Indoor modules should be inspected weekly, and outdoor modules should be cleaned more rigorously with water and non-abrasive detergents.
  • Temperature Control: Ensure that fans and heat sinks function correctly to avoid overheating. Set up a temperature monitoring system within the cab.
  • Spare Parts: Using original manufacturers' spare parts when replacing important components, such as power supplies and LED chips, ensures reliability and stability of the device.
  • Software Updates: Update the software regularly to accommodate better performance, correct bugs, and increase operational features that may enhance the efficiency of the display.
  • Regular Testing: Run daily checks to determine if there are no faulty LEDs or modules active. Different colors should be displayed on each module to check uniformity. Use a specific LED testing kit or software that can assist in pinpointing malfunctioning parts.

Quality and Safety Considerations

Ensuring Quality of the Jinhe Led Display Module

LED display modules need to be in compliance with important quality standards and their safety in use. These ensure reliability and performance, especially in commercial-grade applications.

Certifications:

The certification of the Jinhe LED display modules is done according to international standards, such as CE, RoHS, or ISO. These certifications guarantee that such modules comply with safety, environmental, and performance requirements. Therefore, check for these certifications before purchase.

Testing Procedures:

The display modules undergo rigorous quality testing by the manufacturer. Common tests include evaluation of brightness and color accuracy, weatherproofing for outdoor modules, and stress testing for solid soldering heat and component materials in different conditions. Ask for the test results of the products selected.

Material Quality:

The quality of materials used directly affects the performance of these modules. Quality aluminum is used in making indoor cabinets, while marine aluminum models are used on outdoor cabinets. Only top-grade LED chips from renowned manufacturers are mounted on the modules for better brightness and longer lifetimes. Ensure that the select products have premium materials.

Installation Standards:

Following proper installation standards ensures the modules' safety and functionality. Such standards include adequate electrical connections, proper grounding, and proper heat dissipation systems. The display modules are designed to work together as a system. Use Jinhe parts only, and avoid mixing brands and modules.

Maintenance Guidelines:

To maintain the quality of LED display over time, follow the care instructions provided by the manufacturer. This includes routine inspections for wear and tear, exposure to moisture, and overheating. Only certified technicians with the skills and knowledge to operate on these modules should be allowed to handle them.

Safety Considerations for Jinhe Led Display Module

The following safety measures help avoid injuries, especially around electrical hazards and falling displays.

Electrical Safety:

LED display modules transmit great currents that can potentially be life-threatening. Avoid contact with live wires and ensure that all electrical connections have been properly insulated. Circuit breakers and proper wiring practices are employed to minimize electrical accidents. Only qualified personnel should operate the displays.

Rigging and Structural Safety:

These displays are rigged to hang from ceilings or supports. Poor rigging can lead to the display falling off, causing injury. Ensure proper safety checks where the modules are mounted or suspended. Use safety hooks and cables, and carry out load inspections before use.

Weather Precautions:

Outdoors modules are designed to withstand extreme weather elements like rain and wind. However, during storms, people should steer clear of the modules as a precaution. Wait for the storm to pass before approaching the display. Always observe the manufacturer's guidelines regarding weather conditions.

Following these quality and safety considerations of the Jinhe LED display modules increase longevity and enhance reliable operation in many applications, thereby protecting people and investments.

Q&A

Q1. What are the most suitable applications for the Jinhe LED display modules?

A1: The indoor LED display modules have high resolutions ideal for indoor advertising, events, and broadcasting. Outdoor display modules are suited to advertising, event broadcasting, and public space use.

Q2. What maintenance works are done on the Jinhe LED display modules?

A2: Routine maintenance involves cleaning, inspections, and software updates. Various fans for cooling and heat sinks maintain the display.

Q3. What is the average lifetime of the Jinhe LED Display Modules?

A3: The LED screen module can serve up to 100,000 hours with proper use and maintenance. The lifetime may depend on the module type and how much time it is exposed to the elements.

Q4. Which factors need consideration when choosing an LED display module?

A4: Commercial buyers should consider pixel pitch, brightness levels, and indoor or outdoor suitability before purchasing a Jinhe LED display module. Although budget is important, functional factors play critical roles in achieving successful displays in intended applications.

Q5. Are there any special precautions for the installation of these modules?

A5: The indoor LED screen modules should be installed by professionals who understand the specifications and handling procedures. Practitioners should avoid mixing modules of different brands for installation.
