Types of LC135 Engine Blocks
The LC135 engine block is a foundational component of the Yamaha LC135 motorcycle’s powerplant. It serves as the structural heart of the engine, housing critical components like pistons, crankshaft, and cylinder bores. Beyond its mechanical role, it also integrates cooling passages for efficient thermal management. Over time, various versions have been developed to suit different performance needs and applications.

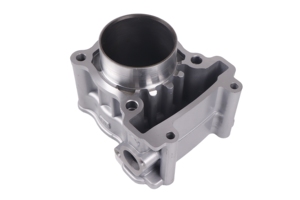

Standard LC135 Block
This is the factory-original engine block that comes equipped on standard Yamaha LC135 models. Constructed from durable materials such as cast iron or steel, this block ensures long-term reliability under normal riding conditions.
Advantages
- Proven durability and reliability
- Cost-effective replacement option
- Integrated water cooling channels
- Compatible with stock engine components
Limitations
- Limited performance potential
- Fixed bore size restricts power output
- Not optimized for high-revving engines
Best for: Stock builds, daily commuting, budget-conscious riders

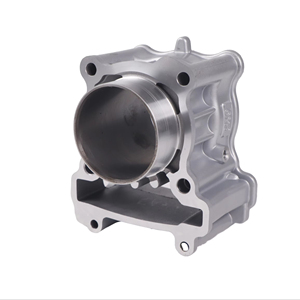

LC135 5-Speed Block
This variant is specifically designed for LC135 motorcycles equipped with a 5-speed transmission system. While structurally similar to the standard block, it features modified cooling channel layouts to accommodate the updated gearbox configuration.
Advantages
- Optimized for modern 5-speed transmissions
- Improved gear spacing for better acceleration
- Maintains OEM-level reliability
- Suitable for both city and highway use
Limitations
- Specific to certain model years
- No inherent performance upgrades
- May require minor modifications for older models
Best for: Riders seeking smoother gear transitions and improved drivability

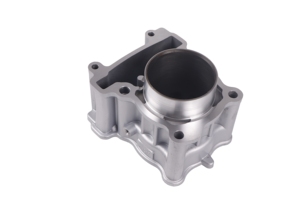

LC135 Upgrade Block
An enhanced version designed for enthusiasts looking to extract more power from their engine. The upgrade block typically features an increased bore diameter, allowing for greater displacement and improved horsepower output when paired with matching pistons and other engine components.
Advantages
- Increased engine displacement
- Higher torque and horsepower potential
- Compatible with mild performance modifications
- Good balance between cost and performance gains
Limitations
- Requires complementary upgrades (pistons, camshaft)
- Potentially higher fuel consumption
- May affect emissions compliance in some regions
Best for: Performance tuning within moderate budgets

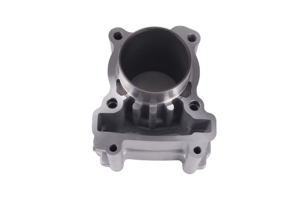

LC135 150cc Block
This specialized block was engineered for the LC135 models upgraded to a 150cc engine specification. Featuring a larger bore size than the standard unit, it enhances airflow and combustion efficiency, delivering improved acceleration and top speed.
Advantages
- Designed for increased capacity (150cc)
- Better throttle response and mid-range power
- Factory-calibrated cooling system
- Smooth power delivery across RPM range
Limitations
- More expensive than standard blocks
- May not be compatible with all model variants
- Higher maintenance requirements at elevated RPMs
Best for: Enthusiasts wanting a factory-backed performance increase

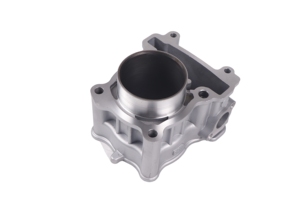

LC135 Big Bore Block
The ultimate choice for those seeking maximum performance, the big bore block features a significantly enlarged bore diameter—often exceeding 62mm. This allows for substantial increases in engine capacity and power output, but requires extensive supporting modifications to handle the added stress and heat.
Advantages
- Highest power potential among LC135 blocks
- Customizable for racing or high-performance street use
- Excellent for forced-induction setups
- Superior airflow capabilities
Limitations
- Requires full engine rebuild
- High cost due to custom nature
- May void manufacturer warranty
- Demanding on other engine systems (cooling, lubrication)
Best for: Racing builds, custom projects, and dedicated performance machines
| Type | Material | Cooling System | Power Potential | Ideal Use Case |
|---|---|---|---|---|
| Standard LC135 Block | Cast Iron/Steel | Water-cooled | Moderate | Stock bikes, daily rides |
| LC135 5-Speed Block | Cast Iron | Water-cooled | Moderate | Modernized gearing setups |
| LC135 Upgrade Block | Enhanced Cast Iron | Water-cooled | High | Street performance builds |
| LC135 150cc Block | Reinforced Cast Iron | Water-cooled | Very High | Factory-upgraded models |
| LC135 Big Bore Block | High-strength Alloy | Water-cooled (upgraded) | Extreme | Racing and custom builds |
Expert Tip: When opting for performance-oriented blocks like the upgrade or big bore variants, always consider upgrading your intake, exhaust, and cooling system to maintain optimal engine temperatures and maximize the benefits of increased displacement.
Specifications and Maintenance of LC135 Block
The LC135 engine block is a popular choice for small to mid-sized motorcycles and utility vehicles due to its compact design, efficiency, and reliable performance. Understanding its technical specifications and maintenance requirements ensures optimal operation and longevity.
Key Specifications of the LC135 Engine Block
While exact specifications may vary slightly depending on the manufacturer or model year, the following are standard features of the LC135 engine block:
Displacement
The displacement refers to the total volume swept by all pistons inside the cylinders during one complete cycle. For the LC135 block, this is approximately 135 cubic centimeters (cc).
This displacement makes it suitable for lightweight motorcycles and scooters where fuel efficiency and manageable power output are priorities.
Cylinder Count
The LC135 engine utilizes a single-cylinder configuration. This design simplifies construction, reduces weight, and improves thermal efficiency compared to multi-cylinder engines.
Single-cylinder engines like the LC135 are known for their reliability and ease of maintenance, making them ideal for entry-level riders and economical transportation solutions.
Bore and Stroke
Bore refers to the diameter of the cylinder, while stroke is the distance the piston travels within the cylinder. The LC135 engine has a bore of 52mm and a stroke of 58mm.
This combination provides a balance between high-revving capability and low-end torque, contributing to responsive acceleration and smooth operation across various riding conditions.
Cooling System
The LC135 engine employs an air-cooling system, which uses airflow over the engine to dissipate heat. This eliminates the need for radiators, coolant lines, and water pumps, reducing complexity and maintenance requirements.
Air cooling is particularly effective in urban environments with frequent stop-and-go traffic, where overheating can be a concern in more complex systems.
Material Composition
The LC135 engine block is typically constructed from either aluminum alloy or cast iron. Aluminum offers better heat dissipation and lighter weight, while cast iron provides greater durability and wear resistance.
Manufacturers often choose aluminum for modern applications to reduce overall vehicle weight and improve fuel economy, especially in scooter and moped designs.
| Specification | Description | Performance Impact |
|---|---|---|
| Engine Type | Single-cylinder, 4-stroke | Ensures simplicity, fuel efficiency, and reduced emissions |
| Displacement | 135cc | Ideal for lightweight vehicles requiring moderate power output |
| Bore x Stroke | 52mm x 58mm | Optimized for balanced performance and responsiveness |
| Cooling System | Air-cooled | Reduces mechanical complexity and maintenance needs |
| Block Material | Aluminum or Cast Iron | Influences weight, thermal management, and longevity |
Recommended Maintenance Practices for LC135 Block
To ensure long-term reliability and performance of the LC135 engine block, regular maintenance is essential. Below are key practices every owner should follow:
Important: Neglecting routine maintenance can lead to decreased performance, increased fuel consumption, and even permanent engine damage. Always refer to your vehicle’s service manual for specific intervals and procedures tailored to your model of the LC135 engine.
How to Choose LC135 Block
Selecting the right LC135 block can be a challenging task, especially for first-time buyers. This guide provides detailed insights and considerations to help you make an informed decision based on your specific needs and usage scenarios.
Define Your Usage Scenario
Understanding how and where you intend to use the LC135 block is crucial in selecting the most appropriate model. Different environments demand different specifications and performance capabilities.
- Professional use: Requires robust construction and advanced features for consistent performance under heavy workload
- Educational use: Prioritize user-friendly interface, moderate power consumption, and compatibility with standard devices
- Personal/home use: Focus on compact design, ease of maintenance, and cost-effectiveness
Planning tip: Create a list of essential functions before comparing models
Brand Selection and Reputation
Choosing a reputable brand ensures better reliability, customer support, and access to replacement parts. Established brands typically offer superior quality control and proven performance records.
- Research manufacturer's track record and industry reputation
- Consider warranty terms and after-sales service availability
- Look for certifications like ISO standards or industry-specific approvals
Quality indicator: Check for compliance with international safety and performance standards
Technical Specifications Comparison
Different LC135 blocks come with varying technical specifications that directly affect their performance and suitability for specific tasks. Carefully evaluate these parameters against your requirements.
- Engine displacement and compression ratio for power output
- Fuel efficiency ratings (measured in g/kWh)
- Operating temperature range and thermal resistance
- Mechanical tolerances and dimensional accuracy
Performance metric: Compare torque curves and RPM ranges for optimal matching
Budget Considerations and Value Analysis
While budget is always an important factor, it's essential to consider long-term value rather than focusing solely on initial purchase price. The cheapest option may not provide the best overall value.
- Entry-level: $150-$250 - suitable for light-duty applications
- Mid-range: $250-$400 - balanced performance and durability
- Premium: $400+ - professional-grade materials and extended warranties
- Factor in maintenance costs and expected lifespan
Cost-saving advice: Look for bundled packages including necessary accessories
Selection Strategy: When choosing between similar models, prioritize features that align with your most frequent use cases. For example, if fuel efficiency is critical, invest more in this area even if other features are slightly compromised. Remember to account for potential future needs that might require additional capabilities.
| Key Factor | Low Priority | Moderate Priority | High Priority |
|---|---|---|---|
| Material Quality | Standard aluminum alloy | Reinforced composite | Aerospace-grade alloy |
| Weight | Over 25kg | 18-25kg | Under 18kg |
| Cooling System | Air-cooled only | Hybrid cooling | Liquid-cooled system |
| Warranty | 6 months | 1 year | 2+ years |
Durability and Longevity Factors
The longevity of an LC135 block depends on both material quality and design engineering. Investing in durable components reduces long-term costs and downtime.
- Corrosion-resistant coatings for extended outdoor use
- Stress-tested internal structures for vibration resistance
- High-quality bearing surfaces for reduced wear
- Thermal expansion considerations in material selection
Maintenance insight: Durable blocks often feature accessible service points for easier maintenance
Portability and Installation Requirements
If mobility is a key requirement, carefully evaluate the weight, dimensions, and mounting options of different LC135 blocks to ensure they meet your transportation and installation needs.
- Compact designs with integrated lifting handles
- Modular assembly options for difficult-to-reach locations
- Mounting bracket compatibility with existing systems
- Transport case availability for frequent movers
Space consideration: Measure installation area dimensions before finalizing purchase
Expert Advice: Always verify compatibility with your existing systems before purchasing. Many modern LC135 blocks incorporate smart monitoring features that require integration with diagnostic tools. If upgrading from an older model, check for backward compatibility to maintain operational continuity while benefiting from new advancements.
DIY Guide to Replacing the Engine Block on LC135 Motorcycles
Replacing the engine block on an LC135 motorcycle is a complex but rewarding DIY project for experienced mechanics. This guide provides detailed, step-by-step instructions to help you safely and effectively replace your engine block, ensuring optimal performance and longevity of your bike.
Safety Warning: Working with engine components involves risks such as heavy lifting, exposure to hot surfaces, and hazardous fluids. Always wear protective gloves, safety glasses, and work in a well-ventilated area with proper lighting.
Understanding the LC135 Engine Block
The LC135 engine block forms the core structure of the engine, housing the crankshaft and cylinders. Over time, due to wear or mechanical failure, it may require replacement. Whether upgrading or repairing, replacing the block can significantly enhance engine durability and performance.
Pro Tip: Before beginning, make sure you have the correct replacement LC135 engine block that matches your model year and specifications. Cross-reference part numbers in your service manual.
Step-by-Step Replacement Process
- Preparation
- Review the official service manual specific to your LC135 model year to understand the exact configuration and torque specs
- Gather essential tools: socket set, wrenches, torque wrench, drain pan, engine support bar, and cleaning solvents
- Secure a clean, flat workspace with adequate lighting and ventilation
- Drain all engine fluids including oil and coolant into appropriate containers for safe disposal or reuse
- Take photos or videos during disassembly to aid reassembly later
- Removing the Old Block
- Disconnect the battery ground terminal to prevent electrical shorts
- Remove external components attached to the engine block such as the intake manifold, exhaust manifold, oil pan, timing cover, and water pump
- Label and organize all bolts, gaskets, and connectors as you remove them
- Disconnect all wiring harnesses, fuel lines, and vacuum hoses connected to the engine
- Drain remaining coolant and oil completely, ensuring no spillage occurs
- Remove the head gasket and any old sealant residue using a non-abrasive cleaner
- Support the engine securely before removing mounting bolts to avoid damage
- Installing the New Block
- Inspect the new engine block thoroughly for cracks, machining defects, or foreign debris
- Clean all surfaces with brake cleaner and compressed air to ensure a contaminant-free installation
- Mount the engine block onto the cradle or stand, ensuring it's stable and secure
- Verify alignment with transmission and other components before final installation
- Reinstall removed components (manifolds, oil pan, timing cover, etc.) following original equipment manufacturer (OEM) specifications
- Use new gaskets and seals where applicable to prevent future leaks or failures
- Final Steps and Testing
- Reconnect all wiring harnesses, fuel lines, and vacuum hoses according to labels and reference photos
- Refill the engine with high-quality oil and coolant as specified by the manufacturer
- Double-check all connections, bolts, and fluid levels before starting the engine
- Start the engine and let it idle while monitoring for unusual noises, vibrations, or leaks
- Check for proper oil pressure and coolant circulation
- Perform a brief test ride at low speed to assess engine behavior under load
- Visit a professional mechanic for a full diagnostic check and fine-tuning after initial operation
| Phase | Key Actions | Common Pitfalls | Recommended Tools |
|---|---|---|---|
| Preparation | Fluid drainage, tool gathering, manual review | Misplacing small parts, inadequate documentation | Service manual, drain pans, camera, labeling tape |
| Dismantling | Component removal, connection labeling | Overlooking hidden fasteners, cross-threading | Socket set, screwdrivers, zip ties, markers |
| Installation | Block placement, gasket replacement, component refitting | Improper torque, misalignment | Torque wrench, alignment tools, new gaskets/seals |
| Testing | Fluid refill, leak check, engine start-up | Rushing the process, skipping diagnostics | Oil filter, coolant tester, multimeter |
Post-Replacement Tip: Keep track of the first few hours of engine operation—monitor oil consumption, temperature stability, and overall performance. This will help identify any early issues before they become major problems.
LC135 Engine Block FAQ
The LC135 engine block is specifically engineered for Yamaha's LC135 model, which features a unique design tailored to its performance and dimensional requirements. While some internal components such as pistons, valves, or gaskets may share similarities with other Yamaha small-displacement engines, the block itself is not universally interchangeable across all Yamaha models.
Potential compatibility should be evaluated based on:
- Engine architecture (single cylinder vs multi-cylinder)
- Displacement range of the target model
- Mounting points and physical dimensions
- Oil passage routing and cooling system configuration
Attempting to use the LC135 block in an incompatible application could lead to mechanical failure, improper fitment, or voided warranties. Always refer to official Yamaha technical documentation or consult with a certified technician before attempting cross-model installations.
The LC135 engine block is a durable, long-lasting component designed to last the lifetime of the motorcycle under normal operating conditions. Unlike consumable parts such as spark plugs or brake pads, the block does not have a scheduled replacement interval.
Replacement becomes necessary only under specific circumstances, including:
- Severe internal damage from overheating or lack of lubrication
- Cracks due to impact or metal fatigue
- Excessive cylinder wear that cannot be repaired by boring or honing
- Warped or distorted mating surfaces affecting engine sealing
To maximize block longevity, follow these maintenance practices:
- Use high-quality coolant and change according to service intervals
- Maintain proper oil levels and perform regular oil changes
- Avoid prolonged high-RPM operation during break-in period
- Ensure correct air-fuel mixture settings to prevent detonation
A deteriorating LC135 engine block can manifest through several noticeable symptoms that affect both performance and reliability. Key indicators include:
- Reduced engine power: Caused by poor compression due to cylinder wall wear or piston ring degradation.
- Blue or white exhaust smoke: Indicates oil burning from excessive clearance between piston and cylinder walls.
- Coolant or oil leaks: May point to cracks in the block or warped surfaces compromising gasket seals.
- Unusual knocking or tapping noises: Could signal internal damage such as a cracked skirt or bearing seat distortion.
- Overheating: Persistent overheating might be traced back to blocked coolant passages or warped deck surfaces.
If you observe any of these symptoms, especially in combination, it’s crucial to conduct a professional diagnosis. Techniques like compression testing, leak-down testing, and visual inspection using borescopes can help determine if the block requires repair or replacement.
Yes, the LC135 engine block can be modified or upgraded to enhance performance, though such modifications require careful planning and execution. Common upgrade paths include:
- Boring out the cylinder: Increasing displacement by enlarging the bore diameter (within safe limits) to improve torque and horsepower.
- Aftermarket cooling systems: Upgrading to improved cooling jackets or external radiators to manage increased heat from performance tuning.
- High-performance sleeves: Installing reinforced cylinder liners for better durability and thermal management.
- Strengthened crankcase: Reinforcing the block structure to handle higher loads from forced induction or nitrous oxide setups.
While these upgrades can significantly boost engine output, they also introduce potential trade-offs:
- Increased stress on other engine components (e.g., crankshaft, transmission)
- Higher fuel consumption and oil usage
- Potential non-compliance with emissions regulations
- Voided manufacturer warranties
For optimal results and reliability, it's recommended to work with experienced tuners who specialize in Yamaha small-displacement engines. They can ensure that modifications are balanced with supporting upgrades to intake, exhaust, and engine management systems.
