Line sensor array

Types of line sensor array

Line sensor arrays are important in electronic measuring and imaging apparatus for offering detailed line scans of their environment. The long commercial equipment and machinery engineering used in creating these sensors has led to a wide variety of line sensor arrays that are tailored for varying commercial uses.

• CCD Line Sensor Arrays

  This line sensor array type employs charge-coupled device technology. CCDs are noted for their premium image resolution and color fidelity. Thus, these features make them a line sensor array for commercial imaging applications demanding high precision. Popular areas for CCD line sensor arrays are food photography and production.

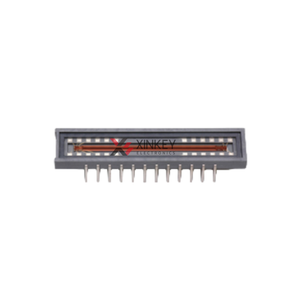

• CMOS Line Sensor Arrays

  CMOS, or complementing metal oxide semiconductors, is popular due to their cheaper manufacturing costs. Besides this, they provide quick scanning speeds. The CCD's imaging capabilities, though slightly less than those of the CCD, are also good. Typical uses of the CMOS line sensor arrays are in real-time inspections.

• Laser Line Scanners

  These operate by using laser light. These scanners are usually employed in detailed three-dimensional measurements or in very accurate industrial inspections. Most operators in this field appreciate the high accuracy and wellbeing that these sensors provide when executing measurements.

• Near-Infrared Lines Sensor Arrays

  These products, particularly sensitive to the near-infrared spectrum, make it possible to be used for commercial applications. This is because these applications are dependent on biological materials. For the CCD and CMOS, these sensors provide comparable performances in terms of their sensitivity to infrared. Common uses include plant health detection. Other uses include vegetation analysis and thermal imaging.

• Multispectral Line Sensor Arrays

  These offer more than the regular line scanning capability by combining several wavelengths of light. They combine several wavelengths of light, enabling detailed material identification and quality inspection. It easily follows that multispectral line sensor arrays are widely utilized in industries where material differentiation is critical, such as recycling, agriculture, and renewable energy.

Function, Feature, and Design of line sensor array

Function

Line sensor arrays perform the function of capturing light from a specific focused line in an area on a constant basis. Most of these sensors transform the received light into electrical signals that will process to build images or collect measurement information. Compared to area scan sensors that capture images in a two-dimensional format, line sensors capture data in a one-dimensional format. This allows for faster and more efficient data collection, especially in environments where movement or objects being analyzed are in constant motion.

Feature

Line sensor arrays have many important features that help determine where to use them. These features include things like resolution, sensitivity, scan speed, and integrated lighting.

With resolution, it means the number of pixels on each line of the sensor array. The higher the resolution, the more detailed the images or measurements produced will be. In sensitivity, it refers to the ability to capture light or other signals. A good degree of sensitivity will enable the line sensor array to work effectively.

The scan speed is simply how fast the sensor captures data. High-speed scans are essential in industries where quick inspections are important, such as in production processes. Integrated lighting involves near-infrared, LED, or laser lights. These are used to illuminate the object being scanned to improve visibility and increase the overall quality of the data captured.

Design

Most line sensors are designed with several key elements such as the lens, the light source, and the housing. The lens focuses the light onto the sensor array. The line sensor arrays are built into rugged, compact housings. This makes it easy to fit them in the tight spaces commonly found in factories and other commercial spaces. Furthermore, certain models are protected from moisture, dust, and shocks. This allows their operations in many different topographies.

Scenarios of line sensor array

The scans performed by the line sensor arrays suit dynamic environments, thus appealing to most industrial settings. This makes it possible for these sensors to be used in many applications where time and precision are very critical. Below are some scenarios:

• Production line quality control

  On the production line, these sensor arrays check an object for quality all the time. They easily identify flaws by line scanning an object as it moves by. The speed enables the synchronization with quick line rates to enable instant detection of problems. It reduces the need for manual inspections and increases the accuracy of quality control.

• 3D Mapping in Construction

  At a work site, a laser line scanner is used for precise 3D mapping to create accurate models for the project. This is more effective than conventional methods; accuracy is at a higher level. The scanner quickly captures vast amounts of data, allowing real-time updates and better project management. This makes it a great tool for the construction field, where accuracy is critical.

• Barcode scanning in Logistics

  In warehouses and distribution centers, it's crucial to keep track of inventory and shipments. To do this, the line sensor arrays scan barcodes quickly and accurately as packages move through processing systems. They offer speed and precision in package identification and inventory tracking. It eliminates errors connected to manual data input while boosting operational efficiency.

• Agricultural monitoring

  In precision agriculture, sensors monitor crop health and growth. A multispectral line sensor array attached to a drone captures images of crops from multiple light spectra. This shows the health of the plant and tells the farmer what nutrients are needed. Because it's quick and covers large fields, farmers can act fast before crops die or get infested with pests.

• Industrial machine inspection

  Industrially, machine inspections check wear and tear on critical parts. These arrays give detailed scans of machine components. They help techs find problems before they lead to failures. The scans are fast, so they fit into production flows. They reduce breakdowns by enabling early maintenance and keeping machines productive.

Maintenance and Repair of line sensor array

To maintain the peak performance of line sensor arrays, one must have a proper and timely maintenance plan. Apart from the maintenance, repairs are essential to address any issues that arise during the array's operation.

• Preventative maintenance

  The effectiveness of the line sensor arrays and their life can be greatly enhanced through regular cleaning. Cleaning should be done based on how dirty the environment is, but generally, it should be done more often. The cleaning is done carefully to ensure that no foreign material gets on the sensor surface or housing. Regularly inspecting the sensors for physical damage, checking the connections, and ensuring that the firmware is up to date are other ways to maintain the sensors.

• Environmental control

  The maintenance of the sensor arrays is affected due to environmental factors like temperature, humidity, and dust. It is, therefore, recommended that the sensors be operated within the temperature range recommended by the manufacturer. Moreover, dust and other contaminants can be kept off the sensors by using protective covers and enclosures.

• Calibration checks

  Line sensor arrays are very sensitive, so calibration is vital for accuracy. Many times, systems require recalibration to obtain accurate data. Ideally, the calibration should be verified and adjusted when necessary as suggested by the manufacturer, which is typically done at regular intervals.

• Spare parts and repairs

  Some operations that are undertaken on the line sensor arrays require a degree of technical expertise. Therefore, it is advisable to consult the manufacturer or a certified professional repair the damaged parts. This can help avoid the situation where improper repairs will damage the system further or cause sensor inaccuracy. It is also advised that some spare parts, like replacement windows or easily damaged cables, be on hand.

• Diagnostics and troubleshooting

  Line sensors are equipped with diagnostic features such as built-in self-tests or error logs. These help in identifying and addressing a problem early before it affects normal operations.

Q&A

How do line sensor arrays differ from area sensor arrays?

Line sensor arrays capture data one line at a time for quick, efficient, high-speed scans, while area sensor arrays take full images, making them ideal for static imaging.

What industries benefit most from using line sensor arrays?

Manufacturing, agriculture, logistics, and mapping industries benefit from speed and precision in inspections, monitoring, tracking, and 3D modeling.

Are line sensor arrays suitable for low-light conditions?

Some sensor arrays have high sensitivity to light, like CMOS or near-infrared sensors, which work well in low-light and special-light conditions.

Can line sensor arrays be integrated with other systems?

Yes, they connect easily with industrial computers, robotic arms, and other hardware and software for analysis, control, and data processing needs.

How is maintenance done for line sensor arrays?

Routine cleaning, calibration checking, diagnostics review, and environmental monitoring keep line sensor arrays functioning well.
