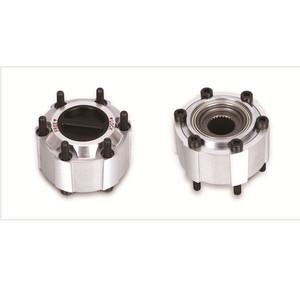

Manual locking hub

Types of Manual Locking Hub

The manual locking hub is a vital four-wheel drive (4WD) system part. It permits the driver to pick whether to connect the front wheels to the transmission for power. This is done to reduce the wear and tear of components when driving on dry or paved roads. The manual hub is generally found in trucks and SUVs made for off-road driving. There are two main types of manual locking hubs. They are:

• Manual Locking Hubs

  The manual locking hubs permit the driver to lock or unlock the hub themselves. This is done using a lever or dial, which gives the driver more control of the hub's operation. When locked, the hub connects the front wheels to the axle, allowing power to be transmitted to the wheels. This is useful for off-road driving on mud, sand, or snow. However, locking the hub will make steering and wheel rotation harder on paved roads. The manual locking hub gives a better grip on the road in tough driving conditions. The driver can also switch between locked and unlocked modes, depending on the terrain. This helps to increase fuel efficiency and reduce wear and tear on the 4WD system.

• Auto Locking Hubs

  Auto-locking hubs automatically lock or unlock the hub based on the wheel's rotation. When the driver shifts the 4WD lever, the hub will engage or disengage without any extra steps. This is convenient for drivers who frequently switch between on-road and off-road conditions. The auto-locking hubs save time and effort, especially in unpredictable weather. However, the auto-locking hub may not engage or disengage in some cases. This can happen if there is a mechanical problem or low fluid level. In such situations, the driver may need to lock or unlock the hub manually using tools located inside the vehicle. Even though auto-locking hubs are more convenient, they may lack reliability in some cases. It's important for drivers to be aware of the hub type and its operation to prevent problems in off-road driving.

Specifications and Maintenance of Manual Locking Hubs

It is important to consider specifications when buying locking hub conversion. Below are some of the specifications to consider.

• Size

  Locking hubs are available in various sizes, depending on the make and model of the vehicle. The size of the hub must match the size of the axle for proper fit and function.

• Material

  Locking hubs are made from different materials, such as aluminum, steel, or plastic. Each material has its advantages and disadvantages. For example, steel is more durable than aluminum, but aluminum is lighter than steel.

• Axle Spline Count

  The number of splines on the axle is another specification that must be considered. The locking hub must match the spline count of the axle for proper fit and function. Common spline counts are 26, 30, and 32 splines.

• Hub Style

  There are two main styles of locking hubs: manual and automatic. Manual locking hubs require the driver to manually lock or unlock the hubs, while automatic locking hubs do this automatically. Manual locking hubs provide better performance in off-road conditions but are more difficult to use on paved roads.

• Brand and Model

  There are many brands and models of locking hubs available. It is important to choose a reputable brand and model known for quality and durability. Reading reviews from other users can help find a reliable locking hub.

Below are some tips for maintaining manual locking hubs.

• Keep it Clean

  Cleaning the manual hubs regularly, especially when driving on muddy or sandy roads, helps avoid dirt and debris from getting inside the hub and causing damage. A mild detergent and water or an air compressor can be used to clean the hubs.

• Lubricate

  Lubricating the manual locking hubs regularly is important to ensure they function properly and last longer. Use a high-quality grease recommended by the manufacturer to lubricate the hubs.

• Check for Wear and Tear

  Inspecting the manual locking hubs regularly for signs of wear and tear is important. Look for damage such as cracks, chips, or excessive play. If any damage is found, replace the affected parts immediately.

• Use Correct Tools

  Using the correct tools when working on the manual locking hubs is important. Using the wrong tools can cause damage to the hubs or other parts of the 4WD system. Always use the tools recommended by the manufacturer.

• Follow the Maintenance Schedule

  Following the maintenance schedule recommended by the manufacturer is important. The maintenance schedule will provide information on when to perform maintenance tasks such as cleaning, lubricating, and inspecting the manual locking hubs.

• Store Properly

  If the manual locking hubs are not used for an extended period, it is important to store them properly. Clean and lubricate the hubs before storage and keep them in a dry, clean place away from extreme temperatures and moisture.

How to Choose Manual Locking Hub

Selecting the right manual locking hub for a vehicle involves considering several key factors to ensure compatibility, functionality, and durability. Here are some important aspects to keep in mind when choosing a manual locking hub:

Understand the vehicle's 4-wheel drive system. The type and condition of the 4WD system are essential in determining the locking hub's compatibility. Whether the vehicle has a solid front axle or an independent front suspension design, knowing this will help select the right hub.

Check the vehicle's make and model, including the year of production. Some vehicles may have specific requirements or preferences for locking hubs. For instance, a truck with a solid front axle may have different compatibility needs than one with independent front suspension.

Determine the size of the axle shaft. Manual locking hubs are designed to fit specific axle shaft sizes. Choosing a locking hub that matches the axle shaft diameter is essential to ensure a proper fit and optimal performance. The most common axle shaft diameters are 26, 27, and 30 spline sizes.

When choosing a manual locking hub, consider the locking hub brand. Different manufacturers offer various options with distinct features and advantages. Research reputable brands known for producing reliable and durable locking hubs. Reading reviews and seeking recommendations from other users can provide valuable insights into the performance and longevity of different brands.

Consider the locking hub upgrade. If the vehicle is modified with larger tires or increased horsepower, selecting a heavy-duty locking hub to handle the extra stress and torque is essential. Heavy-duty hubs typically have reinforced components and superior materials to withstand demanding off-road conditions.

Evaluate the locking hub budget. Manual locking hubs are available at various price points, so it's essential to determine a budget before purchasing. While opting for the cheapest option may be tempting, choosing a locking hub that offers the best value for money in terms of quality, durability, and performance is important.

Locking hubs are usually made of aluminum or steel. Aluminum hubs are lighter and resistant to corrosion. On the other hand, steel hubs are more durable and suitable for heavy-duty applications. Consider the material based on the vehicle's intended use and the environmental conditions it will face.

Decide whether to choose a single or double set of hubs. Single sets of hubs are more common and suitable for most standard applications. However, if the vehicle requires additional strength and reliability, double sets of hubs may be worth considering, especially for off-road or towing applications.

Consider the warranty and customer support offered by the locking hub manufacturer. A good warranty period and responsive customer support can provide peace of mind and assistance in case of any issues or questions.

By carefully considering these factors, vehicle owners can choose the suitable manual locking hubs to enhance their 4WD system's performance, durability, and reliability. It is advisable to consult a professional mechanic or expert if unsure about the suitable locking hub for a specific vehicle.

How to DIY and Replace Manual Locking Hub

Replacing a manual locking hub requires basic hand tools and some mechanical knowledge. The process is straightforward, but it's essential to work carefully and follow the steps. Here's a step-by-step guide on how to replace a manual locking hub:

Tools and materials needed:

• New locking hubs (make sure they are compatible with the vehicle)
• Socket wrench
• Torque wrench
• Screwdriver
• Grease (if required for the new hubs)
• Wheel chocks
• Lug nut wrench
• Jack and jack stands

Step-by-step guide:

• 1. Prepare the Vehicle: Engage the parking brake, and place wheel chocks behind the rear wheels to prevent the vehicle from rolling. Loosen the lug nuts on the front wheels slightly while the vehicle is on the ground.
• 2. Jack Up the Vehicle: Use a jack to lift the vehicle and secure it on jack stands. Remove the front wheels.
• 3. Remove the Old Hubs: Depending on the vehicle, removing the wheel hub may require a screwdriver or socket wrench. Take out any retaining rings or snap rings holding the hubs in place. Carefully pull out the old hubs from the wheel shafts.
• 4. Clean the Area: Clean the area where the locking hubs sit on the wheel shafts. Grease the wheel shaft splines and the inside of the new hubs if the manufacturer recommends it.
• 5. Install the New Hubs: Position the new locking hubs over the wheel shafts, ensuring they align correctly with the splines. Install any retaining rings or snap rings to secure the hubs in place. Make sure they are adequately seated to prevent leaks or loose parts.
• 6. Reinstall the Wheels: Put the wheels back on the wheel hubs and tighten the lug nuts by hand.
• 7. Lower the Vehicle: Remove the jack stands and lower the vehicle using the jack. Once the vehicle is back on the ground, tighten the lug nuts with a torque wrench to the manufacturer's specified torque.

8. Test the Hubs: With the vehicle on the ground, engage and disengage the locking hubs to ensure they function smoothly. Turn the hubs to the locked position and test drive the vehicle in 4WD to confirm that the hubs are working correctly.

9. Final Checks: After the test drive, inspect the hub area for any leaks or loose parts. Make sure everything is in place and functioning as it should be.

Q and A

Q1: Are manual locking hubs better than automatic hubs?

A1: It depends on the user's preferences and needs. Manual locking hubs offer better fuel efficiency and less wear on the 4WD system when not in use. They also provide more control in challenging terrains. On the other hand, automatic hubs are more convenient as they require no manual intervention to engage or disengage the 4WD system.

Q2: Can vehicles with automatic hubs switch to manual locking hubs?

A2: Yes, it is possible to convert a vehicle with automatic hubs to manual locking hubs. However, this conversion requires a hub conversion kit and professional installation. It is essential to consult with a mechanic or 4WD specialist before making this change.

Q3: Do manual locking hubs require maintenance?

A3: Yes, manual locking hubs require regular maintenance to ensure optimal performance and durability. Users should clean and lubricate the hubs regularly, especially after off-road use. It's also essential to inspect the hubs for wear or damage and replace any faulty components as needed.

Q4: Can manual locking hubs be used in all types of terrain?

A4: Manual locking hubs can be used in various terrains, including snow, mud, sand, and rocky trails. However, users should engage the hubs correctly and drive cautiously in challenging conditions. It's crucial to consult the vehicle's owner's manual and the locking hub's instructions for proper usage tips.

Q5: Do manual locking hubs affect the vehicle's ground clearance?

A5: No, manual locking hubs do not impact the vehicle's ground clearance. They are installed on the front axle wheel hubs and do not affect the suspension system or ground clearance. However, locking the hubs may make the vehicle behave differently on loose surfaces, so users should adjust their driving style accordingly.
