A parallel robot manipulator consists of movable parts connected with both ends to fixed parts (bases) through joints). This type of manipulator can be rotated and moved mostly to manipulate objects and materials. There are several types, such as the following:
Orthogonal parallel manipulators
These manipulators have end-effectors with three driving rods moving in perpendicular directions. The driving rods are connected to the base and end-centric rings. An example of this type of manipulator is the LM-3, which has three movable links that are perpendicular to each other, allowing it to move in a straight line. This unique setup gives the manipulator an easy time while offering an accurate position and stability. Because of these qualities, orthogonal manipulators are normally applied in industries where there is need for precision installations like in surgery equipment and electronics manufacturing.

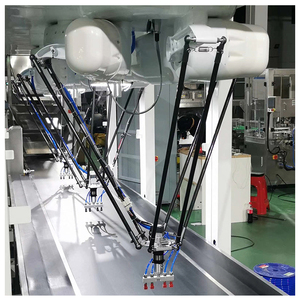

Delta robots
Delta robots also belong to the family of parallel manipulators. The distinctive feature of Delta robots is that their arms are mounted on a fixed top frame and made to move in a rotating fashion, rendering the end effector a unique setup for tilting. Delta robots come with exceptional fettle speeds and accuracy and are adept at light duty work like packaging, assembly, and food processing. Most of the time, these types of robots are located in tasks where the high velocity and dexterity of the device is highly fundamental.
Tricoordinate manipulators
This kind of parallel manipulator comprises three moving rods inclined at symmetrical angles to each other to form a triangular kinematic structure. The moving rods are attached to a fixed base and an end effector, which allows the end effector to move in three-dimensional space. An example is the PSM-3, which, like other applications, is normally used for machining or installations in inaccessible regions. This machine has a special shape and allows it to be used in various industries while providing accurate placements in three dimensions.
Spherical parallel manipulators
Spherical manipulators consist of two or more closed kinematic chains that can achieve spherical motion. An example is the 4-DOF spherical manipulator, consisting of two rings interconnected by rods. It allows the end effector to rotate freely in space. These manipulators are normally applied in industries that understand the demand for superior control of the workpiece, such as in the aeronautical industry.
As previously discussed, a parallel robot manipulator is a device that can put objects in a new position. It has many different uses and works faster and is more accurate than others. It is preferred in situations where several tasks must be performed quickly and accurately. For several businesses, parallel manipulators are critical tools:
Precision assembly in electronics manufacturing
In the electronics manufacturing industry, given the components usually being minute, it requires high accuracy for the placement. In this case, parallel manipulators are utilized in assembling printed circuit boards (PCBs) and other electronic constituents with precision and speed. The orthogonal manipulators are used extensively in this line of business since they are able to achieve accurate placing while staying firm at the same time.
Robotics in the medical field
Medical Operations have come of age due to the advancement in technology, and this has brought in the use of parallel manipulators. They are particularly applied in surgical robots to facilitate precision movements during surgery. For instance, the well-known Da Vinci Surgical System, which is used in minimally invasive surgery, comprises parallel manipulators that strongly contribute to more accurate and less harmful surgical interventions. This reduces the risks on the patients and also promotes shorter recovery times for the patients.
Handling products in the food processing industry
The food processing business has to deal with delicate handling. Parallel manipulators are employed in this case to do the packing and to raise the load while ensuring no goods are damaged. Delta robots, for example, are utilized in this application business to perform tasks such as packing fruits, vegetables, and other foodstuffs where speed and gentleness are required.
Machining in aerospace engineering
In the aerospace sector, parallel manipulators are used for machining operations where high accuracy is required. These manipulators are used to position and support items during the cutting, drilling, or other processing operations. The tricoordinate manipulators are particularly useful in this area since their specific shape enables the excellent precision necessary for maintaining tight tolerances on complicated airplane structures.
3D printing and rapid prototyping
Parallel manipulators are also constructed in developing for 3D printing machines and rapid prototyping. In 3D printing, for example, these manipulators provide the necessary movements, which are then accurately deposited layer by layer. This accuracy in advancement greatly improves its desirability in prototyping to show possible uses before going to actual production in various fields.
High speed and accuracy
Since it uses several arms to do its work, the manipulator finishes tasks faster than others while also ensuring precision. This is particularly beneficial in surgical systems and electronic assembling, where accuracy is a concern.
Good payload capacity
The amount of weight that manipulators can lift differs. Ideally, lightweight manipulators are for light products such as electronic components, while heavy-duty ones are for heavy materials.
Versatile applications
The manipulators are used extensively in diverse fields - packaging in the food processing industry, assembly in electronics, and surgery in medicine. Because of this, they are suitable for all businesses that need accurate and agile handling.
Installation methods differ depending on the design of the parallel manipulator and the intended tasks. These steps outline the general process of setup:
Mounting the base frame
The major part of the parallel manipulator is the base frame, which calls for a stable surface for mounting. Depending on the work to be done, the base frame can be connected to the floor using bolts or welding.
Attaching the arms
The base frame is then attached to the manipulator arms by connecting them at the joint parts. This is meant to be done in such a way that each arm is fixed perpendicular to the neighboring one to obtain the right manipulatory movement. The arms are connected to the end effector by the same way they are connected to the base frame.
Installing the end effector
The end effector is mounted on the manipulator's moving parts. The manner in which the end effector will be fixed will depend upon the work it is going to perform. Suction cups, grippers, or specialized tools can be fitted to effect the necessary tasks.
Sensors and controls
In the next installation step, various sensors are installed to monitor the position and movement of the manipulator. Furthermore, a control mechanism should be established to direct the manipulator; this could be a computer program or a remote control.
Check for wear and tear
Look closely at the manipulators' arms and joints as they may sometimes become worn out through usage and may cause @Override) and (close by if!) p the manipulator. Look out for any hint of grinding or abnormal sound, which indicates might have a problem with its hardware as coordinated by the system.
Lubricate the joints regularly
Parallel robots are frequently moved around, especially at the joints. It is important to apply robotic grease often to minimize friction and prevent things like damage from happening.
Software updates
Most parallel manipulators have software control, and from time to time, the software requires updates to keep it up to date with the current tasks. These updates should be monitored so that the manipulator does not malfunction.
Inspect wiring and electronics
Always remember to check the cables and electrical parts of the manipulator from time to time to avoid problems in the connection. Damaged wires or faulty sensors should be replaced immediately.
Cleaning
For good maintenance of the parallel robotic manipulator, cleaning of dust, debris, and residues collected on the robot should be done at regular intervals. This ensures the manipulator performs well and does not get any damage from foreign materials.
Testing load capacity
Parallel robots are always put through their paces to determine how much weight they can safely handle. This is done by mounting a given weight on the robot and increasing it to the manipulators rated load capacity. It will show whether or not the manipulator will strengthen as it works and will not weaken after a period of time.
End effector safety checks
Further checks are usually done with the part of the manipulator that does the work (end effector) to ensure whatever is being handled is done safely. For instance, in a suction cup setup, a complete check has to be done to make sure the cup is correctly attached so as not to drop the load.
Regular Inspection of robotic arms
The arms of the manipulator are regularly inspected for signs of wear or bending. Such wear would affect the strength of the structure as a whole, and security checks would be affected.
Emergency stops and sensors
Another safety measure is the emergency stop commands and sensors that are routinely put through their paces. These functions are considered to be crucial for the safety of the parallel manipulator, as they are able to stop all operations in case of any dangerous occurrence.
Regular Software Checks
In today's robotics world, where most devices are run electronically, the software contents of these devices also undergo regular checks. These safety checks ensure that all collision evasion protocols and safety measures have not been erased.
Load Testing
In this particular test, the manipulator is made to handle its maximum and minimum forecasts. This is done in order to help identify possible overloading hazards or bearing underemployment.
Vibration Analysis
Here, Machine vibrations from an operating machine are measured and analyzed for signs of abnormalities in the rotating parts such as rotors or pulleys. It can help find out problems that can lead to security risks from abnormal mechanical imbalances.
A1: The most important thing that sets manipulators apart from other robots is their specific configuration, which they call parallelism. Because of the parallel structure, manipulators can support high loads and perform accurately. Because of this, they are very useful in industries that require quick and correct placements of objects.
A2: They have been shown to increase efficiency by making the manipulator more accurate with time and also reducing the time taken to do the task. This becomes especially important in Manufacturing, where speed, accuracy, and gentle handling of materials are important to prevent waste and increase production.
A3: Normally, the manipulator arms are made of strong but easily removable materials such as steel aluminum alloys. Because the materials have to bear the weight of the load and be moved around without corruption, they have to be resilient and potentially enduring.
A4: Parallel robots are designed to be used indoors, especially in controlled environments such as factories, and they are protected from external weather elements. However, it is possible to have some variants of parallel manipulators that have outdoor applications, such as those used in construction work.
A5: Parallel manipulators are limited in applications involving large rotational movements and in areas where space constraints significantly affect their operations because of their complicated structure and high maintenance costs compared to serial robots.
