The concrete testing equipment checks the size of concrete particles in various ways. It divides these materials and gives a clear picture of how the mixture looks. This test helps people pick the right materials to make strong and good concrete. Let's check out the many types of particle size distribution test used for concrete materials.
Sieve analysis is a common and old method to test particle sizes. It uses screens with holes of different sizes to sort the particles by size. An expert pours the concrete mix on the screens, and then shakes or waves it. The screens catch the particles, and their sizes can be measured. This analysis tool is famous for its clear and simple results, making it great for checking sands and aggregates used in concrete.
Laser diffraction is a fast and modern method for testing particle sizes. It works by shining a laser beam through a concrete mix. As the light passes through, the particles bend the light in different ways. Machines called sensors then measure how the light bends. This method gives quick and detailed size data, making it useful for large tests in labs. Many users pick this method because it needs no hands-on work, which keeps the results very precise.
Dynamic imaging is a newer technique that uses cameras to record the particle distribution process. In this method, particles in the concrete mix move through a slim space, and a camera takes many pictures. Software looks at these pictures and measures each particle's size and shape. This method helps workers see how particles are arranged and how well they mix, which affects the concrete's strength.
Electron microscopy gives a close and detailed view of particles. This method uses powerful machines that shoot electrons at the concrete mix to create images of the particles. These pictures show the exact sizes and shapes of even tiny particles. Often used in labs, this method helps to fully understand how particles act and helps choose the right materials. It provides good insight for people looking to improve the performance of concrete.
The settling tube method is simple and checks particle sizes based on how fast particles sink in liquid. This method fills a tall clear tube with water and adds concrete to it. The particles fall to the bottom over time, and their sizes can be seen at first glance. This method is cheap and doesn't need special machines. It works well to understand particles and compare different mixes quickly on the job site or in a small lab.
Particle sieves have many features that allow users to do accurate tests on the concrete mix. These tools help workers get the size details needed for quality checks. Sieve analysis tools are built with strong screens, good shakers, and smooth frames. Laser diffraction machines use lasers and sensors to measure particle sizes fast. Workers can choose these tools based on the sizes they need and the types of materials they test. Here are some typical specifications and features for particle size distribution tests.
Particle sieves come in different mesh sizes: 20 mm, 10 mm, 5 mm, 1 mm, and 500 um. The large mesh openings quickly sort big particles, while the small ones catch fine particles. This range covers all particle sizes in a concrete mix.
The sieve frame is made of strong steel to hold the mesh tightly. This ensures the frame doesn't bend and change when testing big samples. The durable design keeps the test results correct over time.
The shaker wobbles the sieves and mixes the sample evenly. It has different speed settings to adjust for various particle sizes. This gives users control to fit the test to their specific needs.
Understanding how to use various instruments to analyze particles can help optimize the process. These instruments allow users to get deeper insights into the concrete materials. Moreover, knowing how to use the equipment properly can result in fewer mistakes and increased accuracy. Here are the usage details for concrete equipment and tools.
For the sieve analysis method, the user first puts the sieves in order based on mesh size. Then, the user puts the wet or dry concrete sample on the top sieve. Next, the user secures the sieves on the shaker. After that, the user turns on the shaker so it vibrates the sieves for about 10 minutes. Finally, the user removes the sieves and measures the concrete on each sieve. This gives the percentage of each particle size.

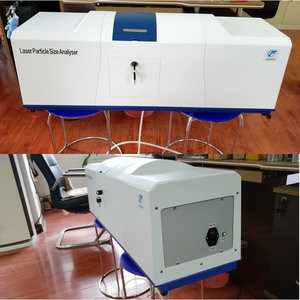

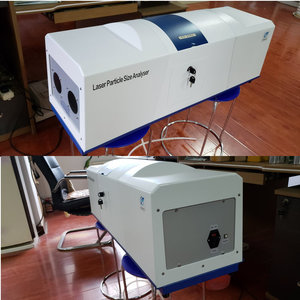

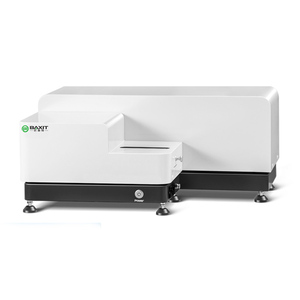

The laser particle size analyzer is easy to use. Initially, the user adds the concrete sample into the feeder. Then, the user pushes the button to start the machine. It automatically sends lasers through the sample. Then it instantly shows the particle sizes on the screen. This gives a fast test result.
First, the user pours the prepared concrete sample into the imaging chamber of the machine. Then the user starts the machine, which records videos of the particles as they move. After a short time, software analyzes the images and sorts the particles by size. This gives a detailed list of each size found in the sample.
Electron microscopy requires more skill. First, the user carefully spreads a tiny bit of the concrete mix onto a flat plate. Then the user puts the plate in the electron microscope. Next, the machine uses electrons to take very clear pictures of the small particles. An expert then looks at the photos to measure the sizes by eye. This makes it possible to see and understand even the tiniest concrete particles.
Using the settling tube method is easy. The user first prepares a tall tube filled with water. Then, he adds a small bit of the concrete mixture to the water. After that, the particles sink to the bottom while the mix stays still. Finally, after waiting some time, he measures the different sizes of the particles that settled on the bottom.
It is important to keep in mind the commercial value of concrete testing instruments and equipment. Knowing their specifications and the different ways to use them can help smart decisions. Picking these tools with care is key to getting the right concrete results when working on big projects. They not only save time but also cut down on errors. So, understanding costs helps people know what it takes to install these tests. Here are the economic benefits of testing particle size distribution.
Detailed tests on particle sizes help choose materials for stronger concrete. When the right particle sizes are used, the mixture binds better, leading to stronger buildings. This strength means longer-lasting concrete, cutting the need for future fixes and saving money over time.
Accurate particle size tests give a concrete mix that handles tough weather and strain. This test helps make concrete that lasts through rain, snow, and other natural changes. Durable concrete reduces the need to replace or repair structures, providing big savings for cities and builders. It also delays the need for expensive maintenance, allowing deeper savings.
Size tests enhance the ease of working with concrete on job sites. When the mix has the right particle sizes, it flows better and is easier to spread and shape. This makes work faster and helps avoid problems that slow down building. Quicker work cuts labor costs and lets builders meet deadlines with less chance of going over budget.
Using particle size tests reduces costs by making sure the right materials are used in the mix. When the sizes are known, less wasted material ends up in the mix. This saves money on raw materials and reduces the mix's environmental effect. Cheaper materials mean lower upfront project costs and fewer fees later on concrete repairs or replacements.
Tighter control of particle sizes leads to more consistent and better-performing concrete. This uniformity means structures act the same way over time without strange changes. It makes them safer and cuts the risk of failures that need costly fixes. Less chance of problems cutting emergency work gives additional savings to builders and owners.
A1: The right range of particle sizes leads to better packing within concrete. This reduces empty spaces and makes the mixture denser. When concrete is denser, it becomes stronger over time. Also, having a mix of different particle sizes can improve resilience against cracking or weather damage. Fine particles fill in the gaps left by larger ones, creating a tighter, more durable matrix.
A2: Testing instruments give quick feedback on the material's properties. This allows workers to adjust the mix in real time, ensuring consistent quality. Quick adjustments prevent issues like segregation or insufficient compaction from occurring in the final product.
A3: Yes, most of these instruments are versatile. They can analyze particle sizes in various mixtures, including regular, high-strength, and lightweight concrete. However, it may be necessary to calibrate the equipment first.
A4: While there are initial costs for testing equipment, they lead to savings over time. By preventing expensive repairs and ensuring efficient use of materials, these tests lower overall project costs. Additionally, they enhance the lifespan of concrete structures, providing further financial benefits.
A5: Yes, they can. Concrete testing devices are portable and tough enough for outdoor jobs. They give accurate results on the spot, speeding up construction without needing to take samples back to a lab first.
