About roll linear rail

Types of roll linear rails

Roll linear rails allow an object or load to roll on a supported surface as a means of linear motion transfer. The types of linear roll rails generally divide into linear motion guides and slides.

  • Linear motion guides:

Linear motion guides help to achieve linear motion by providing support and guidance. They often use a rolling element, which reduces the friction between moving parts, to offer smooth and stable motion. Choices of designs of linear motion guides include square rails and round rails.

  • Square rails:

With a rectangular cross-section, square rails are also called square rail linear guides. They usually partner with linear blocks that contain moving parts. This combination allows the linear motion guides to offer stable support and effortless movement. In addition to this, there are various sizes for selection for fulfilling different needs. With high rigidity and load capacity, strength, and durability, square rails are the most common type of roll rail.

  • Round rails:

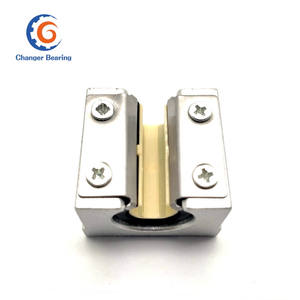

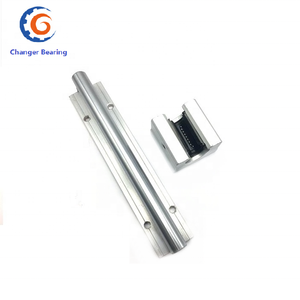

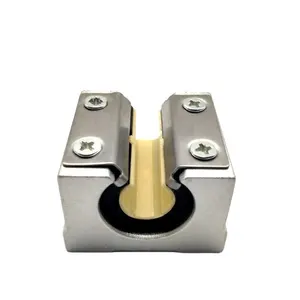

As its name indicates, round rails have a circular cross-section. To achieve linear motion, round rails require the cooperation of linear bearings. Although round rails are less stable than square rails, they offer more flexibility and can be used in applications that need rotational motion or low-load linear motion.

Another variant of linear motion guides is the V track linear guide. The V track linear guide has a V-shaped groove on the rail. The rail cooperates with a bearing that has matching wheels. The matching of shapes allows for smooth movement and high-precision guidance. The V track linear guide is suitable for applications that require high accuracy and stability.

  • Linear slides:

Generally, linear motion slides offer a simple solution for linear motion with an integrated actuator. Linear slides often have a low-friction means of motion, such as wheels, which are mounted on fixed horizontal rails. The standard option for linear slides is the dovetail rails and slides, which resemble the shape of a dove tail and taper down inwards.

In short, linear slides offer a class of simpler and more economical components for use. They work well to replace complex guide and drive systems.

Aside from the aforementioned roll linear rails, there are also belt-driven linear guides and lead screw-driven linear guides. The two types of linear rails have a similar setup to that of the roll linear guide. They employ a different movement input mechanism to facilitate straight motion.

Specification and Maintenance of Roll Linear Rails

The performance of linear motion systems depends upon the precise specifications of linear guide rails. The load capacity of linear rails mainly depends upon its dimensions and material. Here are the key specifications to consider when selecting roll linear rails for a particular application.

  • Size

    Linear motion rails are available in a diverse range of lengths and diameters. The size of the rail decides how far and heavy the mount can move. Usually , longer rails with bigger diameters can carry more loads and heavier items. However, bigger sizes can also increase the energy usage and expenses of the system.

  • Material

    The primary material used for making linear motion rails is steel or aluminum alloy, which is both durable and lightweight. Steel rails can easily bear massive loads and weights. However, aluminum linear rails are lighter and more flexible. Aluminum rails are perfect for low-weight items that need to move quickly. Strong linear rail guides are made from hard steel to bear very heavy loads and intense pressures in extreme conditions.

  • Marble Design

    The cross-section of the rails is known as the marble design. Sellers offer different types of marble shapes. The popular choices for the marble design are square and rectangular cross-sections. The 'squares' provide uniform load distribution and mounting flexibility. The rectangular cross-section linear rails allow for wide spacing between the supports, which reduces deflection.

  • Pre-load

    Some manufacturers apply pre-load to the linear slide rails. It is the initial tension or load on the moving element. It reduces vibration and gives better stability when moving loads. The pre-load can be light, normal, or heavy. If normal pre-load linear slides are selected, the bearing will have some clearance. This will allow for easier installation and movement. High pre-load slides can be difficult to install as they need more force to move.

Maintenance

The linear guide rails can perform their best for years if users regularly clean and lubricate them. Here are some simple maintenance tips for linear motion rails.

  • Regular Cleaning: At least once a week, use compressed air or a lint-free cloth to wipe out dust and debris on the rail surface. Follow the same steps for the slide block. Cleaning the rail surface will keep dirt and pollutants out and enhance the life of the guide rail.
  • Lubrication: Apply lubrication oil to the parts where the moving element and the linear guide rail touch each other. Lubrication will reduce the wear and tear of the parts. It will also lessen friction and keep dust away from the rail.
  • Frequent Inspection: Inspect the rails and guide blocks every fortnight. Check if there are any visible damages, uneven spots, or scars, and carry out repairs quickly if needed.
  • Environmental Protection: Use a cover on the linear rail or dust guard. It will protect the rail from environmental elements like water, dust, and debris. The life of the linear guide rail will increase in harsh conditions if a cover is used.

Applications of roll linear rails

  • Robotics

    Roller linear rails are widely used in the field of robotics to construct high-precision joints and arms. They provide smooth sliding and support for the assembly's movable portions. Robots employ roller linear rails for a variety of motions, including picking and placing, stacking, and shifting.

  • Separators in the Industrial

    Roller linear rails are an important component in industrial machinery. They are widely used in machines such as CNC machines, laser cutting machines, and printing presses. Roller linear rails provide the moving platforms or workbenches for slides and shaving machines to make precise cuts and ensure stable and reliable operation. In automation equipment such as conveyor belts and automated production lines, roller linear rails can be used to construct equipment sliders or to support translating mechanisms.

  • Medical Devices

    Roller linear rails are used in the production and support of medical equipment. They allow for stable motion of devices such as CT scanners, cabinets, surgical robots, and liquid dispensers, as well as accurate positioning and operation.

  • Astronomy

    Roller linear rails are widely used in the aerospace field, as they can be used in the construction of supporting frames, camera mounts, satellite turntables, and telescope equipment. In this environment, the accuracy and reliability of the sliding mechanism are especially important, and roller linear rails can provide the precise motion required.

  • Optics

    Roller linear rails can be used in optical instruments to support and position optical elements such as lenses and mirrors. Examples include telescopes, microscopes, and spectrometers.

  • Other fields

    Roller linear rails also have many other application possibilities, such as in the field of transportation, they are used in trains, subways and other transportation facilities; in the field of entertainment, they can be used in amusement park equipment, stage devices and other entertainment facilities; in the field of home appliances, they can be used in refrigerators, washing machines and other home appliances.

How to choose roll linear rails

When selecting linear rails for a specific application, several factors must be considered to choose the optimal linear guide system. Here are some of the important parameters to keep in mind when choosing linear block rails:

  • Load Capacity and Weight:

    It's essential to consider the overall carriage and rail weight, as well as the loads being transported (including any additional payloads). Selecting a linear guide system with an appropriate load capacity helps ensure structural integrity and performance.

  • Configurable options:

    Modular components are prevalent in linear motion systems. Many guides offer a wide variety of modular blocks, rails, and carriages that you can use to produce a custom configuration that perfectly meets a particular application's requirements.

  • Shaft/Application Compatibility:

    When long linear shafts are used, it becomes crucial to ensure that the linear guide selected is compatible with the length of the shaft and the specific application requirements. A mismatch could potentially lead to performance issues or mechanical failure.

  • Play vs. Stiffness:

    In mechanical systems, there is often a trade-off between play and stiffness. While play refers to the degree of looseness or tolerance within a system that enables free movement, stiffness pertains to the rigidity of a system, dictating its capacity to maintain form under applied loads. Depending on specific application demands, it might be essential to prioritize either play to allow for unimpeded motion or stiffness to ensure precision and stability.

  • Precision and smoothness:

    The accuracy and smoothness of linear motion is paramount in numerous applications. Hence, one must carefully consider the level of precision and smoothness essential for a particular task and choose accordingly from the wide range of options available.

  • Durability and Service Life:

    Many applications necessitate components that can withstand considerable use. Therefore, it's imperative to choose parts with a robust construction and high durability to ensure an extended service life.

Roll linear rail FAQ

Q1: Do linear guides move in a straight line?

A1: Yes, the function of linear guides is to move in a straight line.

Q2: What are linear rails made of?

A2: Linear rails are commonly made of carbon steel or stainless steel. Carbon steel is often painted or galvanized for rust resistance, while stainless steel provides superior rust and corrosion resistance.

Q3: How to store linear rails?

A3: Keep linear rails in a dry place. Avoid linear rails stacking to prevent distortion or damage. Linear rails should be covered to avoid dust and debris accumulation. If not used for a long time, the preservative coating should be applied to prevent rust.
