Stepper motor linear stage

Types of stepper motor linear stage

A stepper motor linear stage has many configurations and designs depending on the applications. Here are some of them:

• Direct drive

  A direct drive motor stage uses a stepper motor that directly connects to the moving component, like a linear slide or rail. In this way, the motor turns the shaft to move the load without using belts or gears. A direct motor drive has a simple design that makes it easier to assemble. Because of fewer parts, it has a low cost. It improves accuracy, efficiency, and reliability. It is popular in 3D printers and small CNC machines with light loads. Though simple, a direct drive may not handle heavy items because of lower torque output.

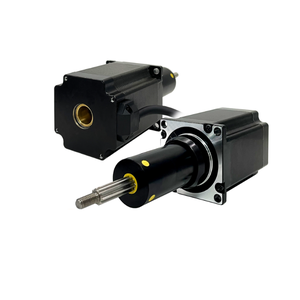

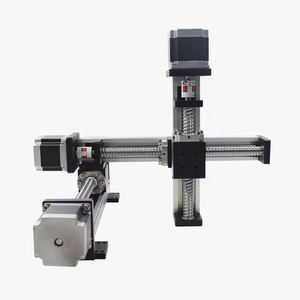

• Lead screw

  A lead screw linear stage uses a lead screw to convert the rotary motion of the stepper motor into linear motion. It has a threaded shaft that moves a nut in a linear way. This structure offers good positioning accuracy and high resolution. Lead screw stages can also provide high levels of thrust and loads. Therefore, they are ideal for high-precision applications like laser cutters and medical device machines. However, the friction in the lead screw makes it less efficient than a belt system. It may limit speed and acceleration.

• Belt drive

  The belt drive has two pulleys connected by a belt. The pulleys are mounted on the shaft of the stepper motor. When the motor turns, it moves the belt, which changes the position of the load. The belt drive gives better speeds than lead screws and can take a higher load capacity. This makes it a good choice when the machine has a larger working area. It works well in applications like large-format 3D printers, CNC routers, and laser engraving machines that need a higher-speed motion system. But it has a lower precision compared to a direct screw drive because of belt stretching over time.

Specifications and maintenance of stepper motor linear stages

Specifications

• Load capacity: This indicates the weight or load the linear stage can support while maintaining its performance and precision. It is typically measured in kilograms or pounds.
• Travel range: It refers to the maximum distance the linear stage can move linearly. It is usually measured in millimeters or inches.
• Speed: This indicates how fast the linear stage can move, usually measured in millimeters per second or inches per second.

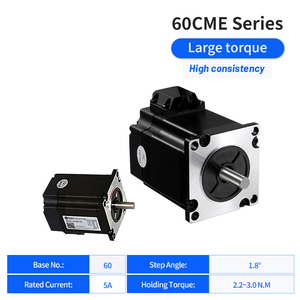

• Motor type and power: The specific motor type (e.g., servo motor, stepper motor, etc.) and power output. Power is usually measured in watts or horsepower.
• Accuracy and repeatability: The level of precision and consistency the linear stage can achieve, usually measured in micrometers or millimeters.
• Drive mechanism: This refers to the way the linear stage is moved, such as belt drive, lead screw drive, guide rail, etc.
• Interface and control: The communication ports and protocols used to connect and control the linear stage, such as USB, RS232, etc.

Maintenance

• Regular cleaning: Use a clean, dry cloth to wipe the surface of the linear platform gently. Remove dust, debris, and other contaminants. For stubborn dirt, a little alcohol can be used to clean it. Clean the slide rail and screw thread with a soft brush or a clean, lint-free cloth to ensure a smooth wipes surface. When cleaning, avoid using harsh chemicals or excessive moisture to prevent damages to the linear platform.
• Lubrication: Apply proper grease or lubricant on the sliding rails, screw threads, and bearings of the linear stage regularly. Lubrication can reduce friction, wear, and noise while improving the smoothness and stability of the movement.
• Check the fastening elements: Periodically, check and fasten the screws and bolts of the linear stage to ensure that they are not loose or deformed. If any looseness or deformation is found, it should be fastened immediately to maintain the stability and reliability of the equipment.
• Pay attention to load: Users should pay attention to the load capacity while using the linear platform and avoid overloading to protect the stage from damage or deformation.
• Environmental control: Users should keep the environment where the linear stage is located, clean, and dry, avoiding exposure to dust, moisture, and other contaminants. If necessary, use an appropriate enclosure or dust cover to protect the equipment.

Applications of stepper motor linear stages

Due to their accuracy and repeatability, the applications of stepper motor linear stages extend to many industries and fields, including but not limited to the following:

• Robotics: Stepper motor linear stages are commonly used in the field of robotics for precisely moving arms, grippers, and other parts, achieving positioning and control functions.
• Aerospace: In aerospace engineering, stepper motor linear stages can be applied in equipment such as satellite antennas, satellite solar panel actuators, satellite attitude control, and satellite stabilization systems.
• Medical: Stepper motor linear stages can provide precise and controllable motion for medical equipment used for diagnostic imaging such as MRI machines, CT scanners, and ultrasound machines. Other medical devices like surgical robots, infusion pumps, and ventilators also use them for precision and accuracy.
• Industrial automation: Stepper motor linear stages are widely used in industrial automation fields such as 3D glass cutting, CNC machining centers, laser engraving, and cutting machines, and are also used in conveyor belts and automated assembly lines.
• Semiconductor: The semiconductor industry requires precise handling and placement of delicate wafers. Stepper motor linear stages can provide the accuracy and repeatability needed for wafer transfer, inspection, and testing.
• Food processing: Stepper motor linear stages can also be used in food processing equipment for portion control, filling, and capping operations. They enable precise and consistent movements for accurate measurements and efficient production.
• Photovoltaic: Solar panel positioning systems often use stepper motor linear stages for tracking the sun's movement to optimize the angle of incidence and enhance the efficiency of solar energy collection.
• Glass industry: In the glass production and processing industry, stepper motor linear stages can be used in glass cutting tables, glass engraving machines, and other equipment to realize the positioning and motion control of glass materials.
• Test equipment: Precision test equipment often requires stepper motor linear stages to achieve accurate positioning and repeatable movement for testing and measurement purposes.
• Printing and engraving: Engraving machines, laser cutting machines, and laser marking machines often use stepper motor linear stages to achieve accurate engraving, cutting, and marking of different materials.
• Communication industry: In the communication industry, stepper motor linear stages can be applied in antenna positioning systems, multiplexer, and encoder actuators, and other equipment for accurate and reliable movement control.

How to choose stepper motor linear stages

When purchasing stepper motor linear stagers, buyers should consider the following factors.

• Direct drive vs. lead screw:

  Direct drive linear stepper motor stages have their rotor attached to the moving component, which directly translates rotary motion into linear motion. This design results in a compact, lightweight stage with fewer moving parts, providing high acceleration and speed. However, the immediate friction and cost may be high. On the other hand, lead screw-driven stages typically have a stepper motor driving a lead screw. The lead screw converts the motor's rotational movement into linear motion for the moving part. Although lead screw drives may be bulkier and heavier due to the added components, they are generally more affordable.

• Payload and materials:

  When selecting a linear motion stage, it is crucial to consider both the payload capacity and the materials utilized in its construction. The chosen material influences the stage's weight, as well as its ability to handle loads and the level of durability it can provide. To ensure optimal performance, it is essential to match the stage's payload capacity with the weight of the intended application while also taking into account the materials employed in the stage's design and manufacturing process.

• Precision vs. cost:

  When choosing a motor stage, it is essential to consider the balance between precision and cost. Precision is a significant factor in the decision-making process, as it determines the stage's accuracy and performance. However, it is also crucial to acknowledge that precision comes at a price.

• Mass and moment of inertia:

  Consideration of mass and moment of inertia is essential when choosing a linear motion stage. The motor requires more torque to accelerate and decelerate stages with higher mass and moments of inertia. This is due to the increased resistance presented by the weight and rotational inertia of the moving parts. For heavier loads, higher torque motors are necessary, which may increase costs.

Stepper motor linear stage Q&A

Q1: How to control a stepper motor linear motion?

A1: Controlling stepper motors requires controllers. The controller will give the motor power and tell it what to do. Usually, stepper motor controllers will use pulses to control the direction and speed of the motor. So, the motor will rotate or move to a specific position based on the number of pulses it receives. Advanced controllers can give more features like smooth acceleration, deceleration, and multiple-step sequencing.

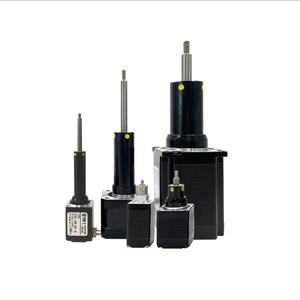

Q2: Do stepper motors have linear motion?

A2: Yes, there are linear stepper motors. They move in a straight line. But stepper motors in a rotary motion are more common. They rotate.

Q3: How much load can a stepper motor handle?

A3: The torque of the stepper motor decides the weight it can carry. It can be calculated using the formula: Torque = Force x Distance. In this case, the force is the weight of the object measured in Newtons. Distance is the distance from the motor's shaft to the center of the weight, measured in meters. Please consult with technical experts for precise calculations.

Q4: What are the limitations of stepper motors?

A4: Stepper motors have some drawbacks. They can generate a lot of noise during operation. They are not able to achieve very high speeds. Their torque reduces when speeds increase. Also, if they don’t reach the right position, they have little slip.
