Swivel clamp for pipe

Types of Swivel Clamp for Pipe

Swivel clamps are versatile and thus can be used for different applications. This is the same for the swivel pipe clamps, which are therefore available in the following types:

• Adjustable Swivel Clamps

  The adjustable swivel clamp for pipe has an adjustable design. This feature makes it one of the most appropriate options for varying load conditions or application requirements. In addition, the arm length and pivot point of the clamp can be adjusted for a wide range of motion. It guarantees precise torque distribution on the pipe. This means the clamp can be used in multiple situations in which one needs to change the orientation or support of the pipe structure.

• Heavy-Duty Swivel Clamps

  Heavy-duty swivel clamps are designed for use in highly demanding situations. They support larger loads and therefore resist more strain. These clamps are made from stronger materials like steel and strive to provide maximum strength and stability. These heavy-duty swivel clamps can be widely applied in the construction industry, marine environments, or other commercial enterprises in which pipes will have to transport heavy substances or endure difficult pressures.

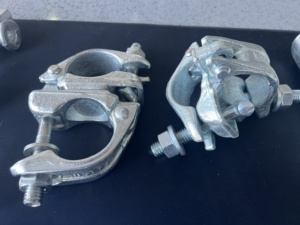

• Double Swivel Clamps

  As the name suggests, these swivel clamps have an additional holding feature. It means that they have two sets of clamping jaws and are thus able to support two pipelining simultaneously. This design is mostly used for supporting intersecting piping systems or for providing a more balanced support to larger diameter pipes. The double swivel clamp will help in spreading the weight across two pipelines to reduce the chances of damage or distortion of the pipes because of pressure or heavy load.

• Quick-Release Swivel Clamps

  These clamps carry a significant benefit when it comes to the fast installation and dismounting of the swivel clamps. Mostly used when there is a need to fit several swayel clamps, these clamps come with a quick-release feature; they do not require complex procedures to install or remove. The adjustable pipes can be very effective in dynamic applications where frequent changes may be needed in the orientation or the movement of the pipeworks.

Material & Durability of Swivel Clamp for Pipe

The material that is used to construct swivel clamps for pipes will directly determine their strength and durability. Common materials used include:

• Stainless Steel

  Stainless steel is popular for its rust and corrosion resistance. This property makes it suitable for marine, chemical processing, and other applications where exposure to moisture or corrosive substances is likely. Apart from supporting a robust and long-lasting structure, stainless steel clamps also have a sleek and professional finish that comes with increased heat resistance. Hence it is well suited for use in situations where temperature can probably increase.

• Carbon Steel

  For carbon steel clamps, they are actually much stronger and tougher than their stainless steel counterparts; hence, they can better support heavy loads. Unfortunately, carbon steel is susceptible to rusting if not soiled or covered with an oil-based substance. However, most carbon steel clamps come with a protective coating, such as galvanization or powder coating, to reduce the risk of corrosion. These types of clamps are for use in heavy industrial services, construction workloads, or any other situations that would warrant a need for increased strength.

• Aluminum

  While not as strong as stainless or carbon steel, aluminum clamps have their way. Aluminum clamps are light and do not add significant weight to the structure or project. They are, therefore, ideal in such scenarios as aerospace applications where weight is critical, or in temporary structures where the clamp needs to be durable but won't be used for ever. Also, aluminum has some resistance to corrosion, which is helpful in the general maintenance of an environment.

• Forged Steel

  Besides being made from normal carbon steel, steel forged clamps have better durability and toughness; thus, they are ideal for critical applications. Forged steel clamps are resilient, have a high impact resistance, and can be used in many heavy-duty industries, including mining, oil and gas, and other forms of mechanical work. These clamps may also have excellent tolerance to changes in temperature and the environment, which is advantageous in lieu of these factors potentially affecting the integrity of the pipe structure.

Commercial Value of Swivel Clamp for Pipe

Swivel pipe clamps are versatile and common in many sectors. Here are the major commercial interests:

• Construction Industry

  Swivel clamps are part and parcel of the construction industry, particularly when dealing with the installation of rising and falling structures. It helps to support oily or heavy pipes during installation. Besides, the adjustable and double clamps make it easy to serve different pipe sizes and weights, reducing the risk of damages and increasing the life of structures. These clamps quicken the construction process and help eliminate any problems that could come with installing or supporting pipes in a complex infrastructure.

• Oil and Gas Industry

  Since pipeline operations mean that there will be fluctuations in temperature and pressure, having sturdy clamps is fundamental in this business. The oil and gas industry mainly relies on heavy-duty and forged clamps to contain these extremes. The clamps ensure the tubes are supported and aligned properly, reducing the chances of leaks and such safety hazards. These industries do support the use of high-value clamps, and thus, their durability and functionality directly impact operational safety and efficiency.

• Marine Applications

  Because of the constant movement, a lack of proper support could lead to pipelines being damaged. That is why swivel clamps are used in marine applications; they are made from stainless steel and are ideal for pipes since they can resist corrosion. These clamps hold the pipes in a secure position, withstand motion and corrosion, and reliably ensure the long-term pipe durability. The commercial implication here is that the clamps reduce the likelihood of repairing or replacing pipes, which thus increases their worth at sea.

• Manufacturing Sector

  The manufacturing industry utilizes pipes to transport fluids, gases, and other materials. Adjustable and quick-release clamps are mostly employed in the manufacturing industry because they permit easy installation, reconfiguration, and maintenance, especially in that dynamic production line. They also reduce downtime, which is of great importance in this industry; hence, their versatility makes them fit different processes, increasing their overall commercial value.

How To Use Swivel Clamp for Pipe

Pipe clamps are one of the most versatile and usable pieces of equipment around. There is a general procedure for applying and utilizing these unique clamps. Here is how:

• Selection

  When selecting angle pipe supports and clamps, one should factor in the pipe material, diameter, and these variables' weight and working conditions. For instance, quick-release clamps are ideal for dynamic processes, while forged and carbon steel clamps are ideal for heavy industrial applications. If the environment is likely to have corrosive elements, stainless steel or aluminum clamps should be chosen. Also, double or adjustable clamps can be used for complex pipework with many angles or intersections.

• Installation

  Once the right clamp has been chosen, the installation process can start. It involves placing the clamp around the pipeline so that the weight of the substance flowing through the pipe is evenly distributed to the pipes. To do this, the clamp should be mounted on the structure or on suspended supports where the pipe rests to provide a proper slide. A proper slide is necessary to allow free pipe movement, especially in situations where temperature changes cause the pipe to expand or contract.

• Adjustment

  Particular kinds of clamps, such as adjustable or double swivel clamps, have some degree of flexibility. This means that the angle or position of the clamp can be adjusted to suit the pipe's orientation to better distribute stress and enhance its support. This is most important in complex pipework systems where the piping may be running in different directions or supports the weight of a larger diameter pipe. It, therefore, ensures that all the elements are supported properly and that there is minimal stress on the pipe.

• Load Monitoring

  Swivel clamps are designed to support variable loads, which makes it imperative to keep track of the conditions within the area. Monitor the clamps, especially those in areas exposed to changes in temperature or pressure, as well as those supporting heavy loads, for wear and tear. Some quick-release and adjustable clamps should be checked for any needed adjustments or maintenance from time to time. If the clamp is fatigued or corroded, it should be replaced to prevent probable pipeline failure or leakage.

Swivel Clamp for Pipe Maintenance and Repair

Swivel pipe clamps often fix the most critical piping challenges. These clamps have to be maintained and repaired so as to keep them effective. Here is a more:

• Regular Inspection

  The first aspect of maintaining swivel clamps is carrying out frequent checks on them. Look for corrosion, cracks, bending, or general wear that might have disrupted the functionality of the clamp. In the case of stainless steel or aluminum clamps, it is often necessary to check for signs of corrosion, which may, at one time, be hard to tell but could eventually eat into the metal. For carbon or forged steel clamps, look for signs of fatigue or wear that could probably weaken the structural integrity. Also, note if there are any minor deformations in the clamp jaws caused by constant heavy loads or pressures.

• Proper Lubrication

  If a clamp has moving parts, such as adjustable or swivel arms, it will need to be lubricated perhaps once in a while to ensure that it continues to move smoothly. It will not only reduce friction but also, as applied, lubrication will help prevent rust or corrosion from developing on the metal. Use a light machine oil in the area where the parts pivot and wipe off any excess so that dirt or debris does not accumulate on the clamp. This should be done on a regular basis, especially in areas where the clamp is exposed to moisture or chemical elements that would exert additional wear on the clamp.

• Tightening and Adjustment

  Loosened clamps cannot support pipes well, nor can they perform their purpose. Regularly check to see if the clamps are loose and if they need to be retightened. Make sure it does not go overboard, as overtightening can crush the pipe, create stress points, and eventually lead to pipe failure. Those adjustable and double swivel clamps should be monitored closely, especially in dynamic applications where the pipe might move or change.

• Replacement

  This is mostly for instances where the clamp has reached the end of its life or has failed. The constant wear and tear of the pipe clamps will reach a point where they can no longer support the pipes effectively, and they will need to be replaced. Pipe support brackets and clamps should be used to hold the pipes in place so that the pipes do not shift or cause damage to themselves or surrounding structures. With a new clamp, one should ensure it is compatible with both the pipe material and the diameter to eliminate any problems that would come with using incorrect equipment.

Q & A

Q. Are Swivel clamps suitable for all pipe materials?

Swivel clamps are constructed to suit various materials and come in handy when applied in particular situations. Stainless steel clamps resist corrosion and are therefore ideal for marine and chemical processing industries. Other carbon and forged steel clamps have great strength and are ideally suited for heavy-duty industries, which may include mining, oil and gas, and general mechanical work, while aluminum clamps are light and ideal for industries where weight is a main concern.

Q. How do adjustable swivel clamps enhance their functionality?

These clamps accommodate various pipe sizes and orientations as they are designed to be adjustable. This flexibility helps the clamp be used in various situations where the pipe may expand or contract due to changes in temperature or where the weight of the substance inside the pipe is supported. In complex systems with numerous bends or angles, they ensure stress is evenly dispersed throughout the structure, thereby prolonging pipe life and enhancing safety.

Q. What are the signs that a variable clamp needs to be replaced?

A swivel pipe clamp should be replaced in instances when it has become corroded, deformed, or wears out. Other signs include cracks or frequent adjustments due to a loss of grip; they indicate that the clamp can no longer support the pipes effectively. In such situations, the new clamp should provide for proper slide during installation and must be compatible with both the material and diameter of the pipe to avoid further issues.
