Timing chain kit

Types of Timing Chain Kit

A timing chain kit is used in an internal combustion engine to synchronize the crankshaft and camshaft rotations. This synchronization ensures that the engine's valves open and close at the right time to match the piston's intake and exhaust strokes. As a result, the engine delivers optimal performance, efficiency, and emissions control. The timing chain kit comprises several components, including the timing chain, sprockets, tensioners, guides, and occasionally, seals and gaskets. Different manufacturers offer various timing chain kits for specific engine designs. The kits ensure that the timing chain operates smoothly and maintains the correct timing interval, prolonging the lifespan of the engine. The following are the different types of timing chain kits:

• Single Row Timing Chain Kit

  The single-row timing chain kit has one row of chain links. It is widely used in engines with low-performance requirements. The kits are lightweight and affordable. Unfortunately, they are less durable and require more frequent replacements.

• Double Row Timing Chain Kit

  The double-row timing chain kit has two parallel rows of chain links. It is commonly used in high-performance or larger engines. The kits offer more durability and strength, making them suitable for heavy loads and high speeds. However, they are heavier, complex, and more expensive than single-row kits.

• Roller Timing Chain Kit

  The roller timing chain kit has cylindrical rollers on the chain links. The kits offer smooth operation and low wear, making them suitable for high-speed engines. In addition, they are available in both single and double-row designs.

• Bushing Timing Chain Kit

  The bushing timing chain kit has flat bushes instead of rollers. The kits provide a larger surface area for contact with the sprockets. As a result, they are quieter than roller chains. Unfortunately, the bushing timing chain kits are less common and mainly used in specific applications.

• Silent Timing Chain Kit

  The silent timing chain kit is designed to reduce operational noise. The kits have specially shaped links and tensioning mechanisms. They are used in applications where noise levels must be minimized, such as in hybrid or electric vehicles.

• High-performance Timing Chain Kit

  High-performance timing chain kits are designed for racing or high-performance vehicles. The kits have high tensile strength, low stretch, and precision-engineered components. As a result, they provide excellent timing accuracy and reliability under extreme conditions, such as high speeds and high loads. The kits are more expensive than standard timing chain kits.

Specifications & Maintenance of Timing Chain Kit

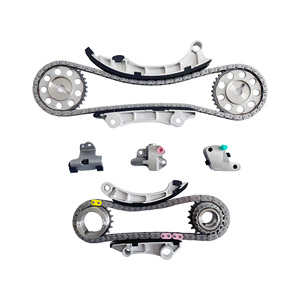

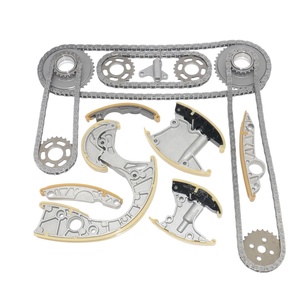

Here's a general overview of what to expect in a timing chain kit:

• The Chain

  The timing chain is what keeps the crankshaft and camshaft in sync. It is built with high-quality steel that is strong and resistant to wear. The timing chain is available in different sizes and lengths depending on the engine's specifications.

• Guides

  The guides are used to control the timing chain and reduce noise. They are made of durable plastic or metal and are available in different shapes and sizes. The guides are positioned in the timing chain kit to ensure the chain runs smoothly.

• Tensioner

  The tensioner is a vital component of the timing chain kit. Its work is to maintain the proper tension in the timing chain, which in turn helps to maintain the right timing in the engine. The tensioner is activated by oil pressure from the engine. It is usually placed near the timing chain to ensure the chain has the right tension.

• VVT Controller

  The VVT controller is in charge of controlling the timing of the opening and closing of the engine's valves. It is connected to the engine's computer system. The VVT controller is usually located near the camshaft, where it helps to adjust the timing of the valves based on the engine's speed and load.

• Sprockets

  The sprockets are used to transfer power from the crankshaft to the camshaft through the timing chain. They are usually made of steel or cast iron and are connected to the timing chain using bolts or screws.

• Gaskets

  Gaskets are used to seal the timing chain kit and prevent oil and coolant leaks. They are available in different sizes and made of materials such as rubber, silicone, or cork, depending on the application.

• Bolts and Screws

  The timing chain kit is held together with bolts and screws. These fasteners are usually made of high-strength steel to withstand the demands of the engine's operation.

Proper maintenance of the timing chain kit is crucial to its longevity and optimal performance. Here are some tips:

• Regular Oil Changes

  Regular oil changes are important for timing chain maintenance. The timing chain kit depends on engine oil lubrication to reduce friction and wear. Over time, engine oil breaks down, and its lubricating properties deteriorate. This can cause the timing chain and other components to wear out faster. Therefore, it is important to change the engine oil and filter every 5,000 to 7,500 miles or as recommended by the manufacturer. This will ensure the timing chain kit has clean oil for smooth operation and durability.

• Tensioner Replacement

  The timing chain tensioner maintains the proper tension of the chain. It is important for the timing chain to have the right tension. It prevents slacking or over-tightening, which can damage the chain and sprockets. As the vehicle runs, the timing chain stretches gradually, and the tensioner automatically adjusts to maintain the right tension. It does this by applying pressure to the timing chain using a spring or hydraulic mechanism. The timing chain tensioner is an important part of the timing chain kit. It requires regular inspection and replacement when necessary. A faulty tensioner can cause the timing chain to run loosely or too tightly, leading to premature wear.

• Visual Inspection

  Visual inspection of the timing chain kit is important for early detection of wear or damage. Some important components to inspect are the timing chain, guides, sprockets, and tensioner. Look out for signs of wear, cracks, or damage. Also, check the timing chain for signs of stretching or slackness. A loose or worn-out timing chain can cause noise or affect engine performance. Likewise, inspect the guides and sprockets for wear or damage that could affect the timing chain's operation. A worn-out guide or sprocket can cause the timing chain to run unevenly, leading to premature wear. Similarly, a damaged tensioner can cause slacking or over-tightening of the timing chain. This can result in noise or a decrease in engine performance.

• Listen for Noise

  The timing chain kit is designed for smooth and quiet operation. A noisy or rattling timing chain kit could indicate a problem. This could be due to wear, damage, or improper tension. A faulty tensioner could cause the timing chain to run loosely or too tightly. This could cause noise or affect engine performance. A worn-out guide or sprockets can also cause the timing chain to run unevenly, leading to noise or rattle.

• Follow Manufacturer's Maintenance Schedule

  It is important to adhere to the manufacturer's maintenance schedule for the timing chain kit. Most manufacturers provide a maintenance schedule based on mileage and time intervals. This will help to keep the timing chain kit and other engine components in optimal condition. Following the maintenance schedule will also help to prevent premature wear and damage to the timing chain kit.

How to choose timing chain kits

When reselling timing chain kits, it's essential to know the right timing chain kit repair parts to offer and the factors that influence their demand. As discussed earlier, the timing chain is a critical component of the engine, and its wear or damage necessitates a replacement. Car owners prefer aftermarket timing chain kits because they are cost-effective and offer comparable quality to the OEM versions.

To meet the clients' needs, focus on the timing chain kits for popular car models. Asian cars, particularly those from Japanese brands, are the most sought-after timing chain kits. Popular models from Honda, Toyota, Nissan, and Mazda are some of the vehicles that use timing chains. For instance, a 2018 Nissan Altima with a 2.5-liter engine uses a timing chain. The kit for this car would comprise a timing chain, guides, tensioners, and seals.

Besides popular car models, pay attention to the specific engine types and sizes that use the timing chain over the timing belt. For example, many car manufacturers use 4-cylinder engines for their entry-level models. However, some manufacturers like GM, Hyundai, and Kia use 6-cylinder engines in their affordable models. A 2018 Kia Stinger with a 2.0-liter 4-cylinder engine or a 2018 Kia Optima with a 2.0-liter 4-cylinder turbo engine are some of the popular models that use a timing chain. However, many clients might be unaware that their cars use a timing chain. Educate clients about the benefits of timing chains over belts, and provide them with the right timing chain kit parts when they come looking for replacement parts.

It's also crucial to understand the components that wear and tear the most in a timing chain. Generally, guides and tensioners wear out faster than the timing chain itself. Some manufacturers offer timing chain kit replacement parts that only include the guides, tensioners, and tensioner bolts. These maintenance parts are very popular among vehicle owners who are on a budget and prefer to save on time by doing a quick fix on their vehicles.

When purchasing timing chain kits, always buy them from reputable suppliers. Check the reviews and ratings of the supplier to ensure they have a good track record. Some clients prefer refurbished timing chain kits to save on costs, so it's good to include a few second-hand chains in the inventory.

How to DIY and Replace Timing Chain Kit

Replacing a timing chain kit is a complex task that requires a good understanding of engine mechanics. Here is a step-by-step guide on how to replace a timing chain kit:

• Preparation

  Ensure that the vehicle is parked on a level surface and the parking brake is engaged. Disconnect the negative cable from the battery. Gather all necessary tools, including a timing chain replacement tool kit, and lift the vehicle using a jack and jack stands. Remove the front wheel on the side of the engine where the timing chain will be replaced.

• Access the timing chain

  Drain the engine coolant and oil. Remove any components obstructing access to the timing chain, such as the air intake duct, timing chain cover, water pump, and oil pan. Depending on the vehicle, this may require various sockets and wrenches. Set the engine to the correct timing chain replacement position. This usually involves aligning specific marks on the crankshaft and camshaft gears. Consult the vehicle's service manual for the exact procedure.

• Remove the old timing chain

  Use the timing chain tool kit to loosen the tensioner and guide rails. Remove the timing chain and associated components from the engine.

• Install the new timing chain kit

  Position the new timing chain, ensuring all alignment marks are correctly aligned. Install the guide rails and tensioner to the specified torque. Double-check alignment and tension.

• Reassemble and finish

  Reinstall the timing chain cover, oil pan, and other removed components in reverse order. Refill the engine oil and coolant. Reconnect the battery and start the engine. Listen for any unusual noises and check for leaks.

Q and A

Q1: What is the difference between a timing chain and a timing belt?

A1: A timing chain is a metal chain that connects the crankshaft and camshaft gears to synchronize the engine's timing. In contrast, a timing belt is made of reinforced rubber with nylon and other materials. Timing belts require more frequent replacements than chains. Timing belts also tend to wear out faster than timing chains.

Q2: Can users drive with a faulty timing chain?

A2: It is not advisable to drive with a damaged timing chain. Minor damage may allow users to drive for a short distance. However, major damage can cause the vehicle to stop running. A faulty timing chain can also damage other engine parts. Driving with a faulty timing chain can be expensive.

Q3: How long does a new timing chain kit last?

A3: The timing chain itself can last between 150,000 to 300,000 miles. However, other components in the timing chain kit have a shorter lifespan. For example, the timing chain tensioner may last up to 120,000 miles. Remember to inspect the timing chain kit periodically and replace it when necessary to avoid engine damage.

Q4: What are the signs of a faulty timing chain?

A4: A faulty timing chain will have the same symptoms as a damaged timing chain tensioner or guide. The symptoms include loose timing chains, engine rattling noises, check engine light, and engine performance issues. The signs may vary depending on the severity of the damage.

Q5: Can anyone install a timing chain kit by themselves?

A5: DIYers with adequate mechanical knowledge can install a timing chain kit. The process is complicated and requires proper tools. Timing chain replacement is time-consuming. Manufacturers recommend timing chain replacement during routine maintenance. Unsure? Consult a professional mechanic to install the timing chain kit.
