Tool and die makers create and maintain tools, dies, and special applications for the production of various components. They are used in the production of metallic parts through numerous processes such as stamping, casting, and molding.
Nonetheless, there are several tool and die types, including:
These are special kinds of tool and die that provide several consecutive stamping moves in one step. Essential components of a progressive die include feed fingers that transport material, cutting sections, bending areas, and holding trays. Application cases often involve complex metal work using thin metal sheets that must be shaped and stretched. Some common examples are metal parts used in automobiles, electric components, and gadgets. A progressive die is used in high-volume production to maintain consistency and effectiveness.
These types of dies apply pressure to metal in order to change its shape without changing its volume. Through this process, metal surfaces are compressed and their shapes modified. Coining dies are typically used for metal parts that have to be very accurately shaped and dimensionally small. Examples include die casting tools of coining dies that produce metal medallions, money, manufacturer nameplates, and electronic connectors.

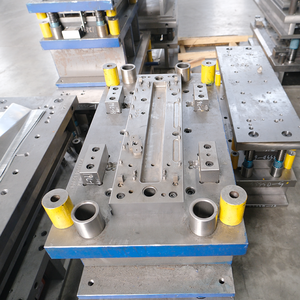

This type of tool is especially used for metal stamping operations. When using a metal stamping tool, flat metal pieces are bent into desired shapes through a press machine. Metal stamping tools play a vital part in many production operations across different industries, thus making them quite versatile. Typical examples include exterior car sections, casings for electrical devices, brackets, and connector plates.
These kinds of dies are applied in the metal extrusion process. Metal alloy materials in the form of billet are melted and poured into a container, and then a ram forces the sludge through a die opening where it cools and solidifies. They are used in the production of aluminum window frames, door frames, and many other structural components. The common materials for these dies are aluminum and steel alloys.
In fields that demand very small dimensions, such as aerospace or medical equipment, tailored tools and dies allow for high precision with limited margin for error. This avoids waste and guarantees top-quality outcomes.
In industries such as automotive or electronics, tool and die applications such as stamping or molding help produce large quantities of parts consistently. This increases productivity while ensuring that parts have the same shape and size each time.
In such industries as packaging, where costs are crucial, tailored tools and dies help make parts from materials like metal or plastics more efficiently. They reduce the amount of material used, thus leading to cost savings whilst maintaining part strength and function.
In sectors like consumer goods or construction, tool and die allow for the creation of very complex shapes or designs in materials such as plastics or metals. This enables innovation in product design, which in turn enhances performance and aesthetics.
Mold tools are capitalized in thermosetting plastic and thermoplastic manufacturing processes like injection molding and blow molding. These tools create a variety of items with different complexities and sizes. Consumer products such as containers, automotive parts, and medical devices and industrial components such as housings and brackets are among items made through these processes.
Tool and die are subject to rigorous testing in industries such as mining or drilling, where they are exposed to harsh conditions. Their strength and wear resistance are critical for maintaining operational efficiency and reducing downtime due to equipment failure.
In almost every industry, tools and dies are used to develop prototypes of new designs or products. This allows for testing and refinement of designs before full-scale production begins. For instance, consumer electronics prototyping helps companies test new device enclosures or components before mass manufacturing.
Material Composition
Tool steels have high strength and hardness and are resistant to wear and deformation, commonly used to withstand high impact and heat during shaping operations. Dies are made from medium alloy steels that possess toughness and durability and withstand stresses and strains.
Dies have a force of about 40 MN (mega newtons) to 300 MN (mega newtons), which is the pressure it can handle to shape the materials. The die temperature can vary based on the process, but generally, it ranges from about 25°C (Celsius) to 800°C. This is because upon very high temperatures, the material of choice can get easily deformed.
Cutting Edge Specifications
The cutting edge has many teeth to ensure a cleaner cut with minimal effort. The teeth are typically around 1-2 mm, meaning they can tackle finer details. An angle of about 20-30 degrees allows for a more precise cut.
Safety Feature (e.g. Non-Slip Handles)
Non-slip handles have a material grip to ensure effective handling by the user. The die comes with two safety features – a safety latch and a safety lock, which ensure that the die does not fall off or cause any injuries. The safety lock has a minimum locking force of about 50 N (newtons) to ensure tightly secured locks as required.
The installation of tools and dies is a complex multistep process with the usage of many machines. The installation generally consists setting up the punch and die assembly on a press. The following steps are generally considered for installation:
Preparation of the Die Base
The die base is the static part of the die set, into which die elements are mounted. It is usually prepared first. The die base is usually cleaned to ensure no debris or residue affects the die's operation. Keyway slots are also machined into the die base, which helps mount the die holders and carries the die cutting edge.
Die Attachment
After the preparation of the die base, the die is then attached. The die is usually mounted to a die holder and secured with fasteners. It is important that the die is aligned to ensure accurate stamping to avoid any defective products.
Die Positioning
Once the die has been attached, it is then positioned onto the die boards of the stamping press. Locator pins are usually incorporated into the positioning process to ease the alignment of the die.
Punch Setup
The punch is also attached and fixed into the press slide. Similar to the die, keyways are usually machined into the punch holder to facilitate fastener attachment.
Die Testing
After the attachment of the punch, a die test is usually performed. This involves running the press with a scrap material to test the die to make sure that it produces the right stamp and for the early identification of any possible adjustments needed.
Metal Stamping with Progressive Dies
Progressive dies are used here. They are installed in a stamping press that mechanically feeds metal blanks into the die space. The press then uses the punch to make the die cut features in multiple stages known as 'stations' in the die.
Injection Molding with Molding Dies
Molding dies are installed in injection molding machines. They are used to create plastic products. The machine first heats up plastic until it becomes liquid and easy to work with. It then pushes this plastic into the die cavity where it cools and takes the shape of the product.

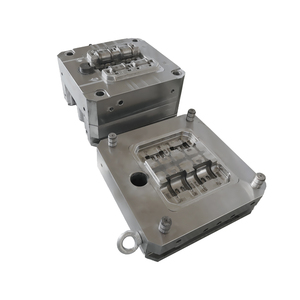

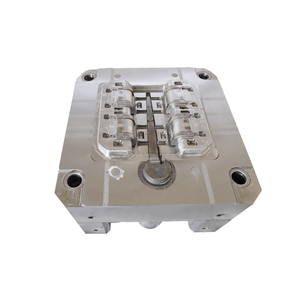

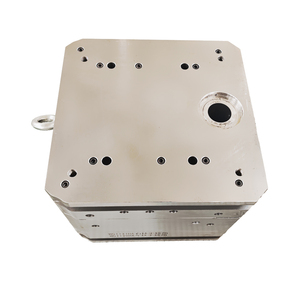

Die Casting with Die Casting Dies
Die casting dies are mounted onto casting machines. The machine pours molten metal into the die cavity. It then lets the metal cool and harden into a solid metal part. Examples include engine casing and various metal components for tools and machinery.
Maintenance of said dies is performed in such a way as to lessen the possibility of rusting by cleaning them after usage with a cloth. A thin coat of oil, protective, is applied after cleaning to provide a barrier against moisture on the exterior surfaces. Inspections of the die inserts are made frequently for such issues as wear and deformation. Repairs to die inserts are done by professionals when wear is noticeably seen so that functions do not lag behind.
This is a process that involves first cleaning the area around the die attachment zone and the punch used to minimize the presence of contaminants. Frequent inspections are also mandatory to look for things such as cracks or signs of wear. Additionally, there is lubrication maintenance, which involves applying said die attachments with lubricants specifically designed for use in high-pressure locations. It reduces friction and prevents rusting. Dismounting safety is performed by trying to ensure that the release of the die is done gently, mostly after lubrication has been applied to the attachments. This will stop the formation of debris.
Regular Lubrication
The application of either oil-based or grease-based lubrication to areas where the tool and die operate is important. It also reduces friction and wear. It ascertains that only long-lasting equipment is in use. Lubrication is done in such a way that metal to metal contact is eliminated as machines is continuously operated.
Material Preservation
Materials used in creating dies and tools are affected by other factors such as temperature variations. These elements can also cause grinding by expanding or cracking them. It can as well be affected by moisture, resulting in corrosion. However, maintaining a consistent environment by using dehumidifiers and HVAC systems and monitoring the temperature can help maintain dies and tools for a longer time. You can also shield them from different weather conditions, such as keeping them under wraps.
Routine Inspection
As for any workplace, integrating a culture of routine tools and die inspection is important. The usage of diagnostic equipment like calipers and micrometers can help identify toscan on dies or perhaps wear on tools before it becomes a drawback. This habituation of maintenance is helpful in its correction and avoidance of long-term equipment damage in addition to ensuring that the tools are effective.
One of the best forms of preventive maintenance is regular inspections of tools and dies. This means checking for any signs of wear. The earlier the wear is identified; the easier it can be remedied. Also, frequent lubrication can be said to be another preventive form of maintenance. Application of lubricants in minimal quantities in tool and die areas where there is a high probability of friction occurrence reduces the chances of wear. This is because lubricants reduce friction between the two surfaces in contact with each other. Another preventive measure is to ensure that dies and tools are made of quality materials that have quality wear resistance properties. Materials such as high carbon steel and high-speed steel have quality wear resistance properties. Lastly, low operating speeds when machining can be an effective prevention method for Tool & Die wear. Reducing feed rates and cutting speeds will reduce the overall impact on the tool and die, leading to a longer life.
A1: Dies are usually manufactured using carbides, high-speed steel (HSS), and plain tool steel. The choice of material is based on the kind of application and the volume of activity. For instance, dies that are going to be used in heavy-duty or wear-intensive applications should be made of carbide as it is a very durable material. However, for less intensive workloads, high-speed steel or simply plain tool steel would be good enough.
A2: Tool and die categories are used to provide the tools or molds needed in the shaping processes like cutting, stamping, or molding for metal and other materials. It ensures the accuracy and consistency of the parts produced during the manufacturing process. In simpler terms, tool and die facilitate the overall production of components.
A3: Both die and mold serve different functions in the forming processes, although they are both shaping tools. A die is used to cut or form metal into desired shapes during processes such as stamping or extrusion. Molds, on the other hand, are the tools used in setting up materials such as liquids, including metals, into hollow structures.
A4: Common warning signs of wear and tear include producing parts with dimples in them or parts that do not have the exact measurements and shape they are supposed to have. Also, when the dies begin to emit metallic dust or particles during operation, this may mean that they are starting to wear out. Moreover, visual signs like chipping or cracks on the die surface are signs that a tool and die have been overused and will need to be replaced.
