Types of electrical circuit breakers

Electrical circuit breakers are one of the main aspects of modern electrical systems. By performing the function of a safety switch, circuit breakers are installed in homes, industrial plants, and commercial systems to provide overcurrent protection, short circuit, and even ground fault protection.

Therefore, selecting the correct type of circuit breaker is important to ensure an electrical installation's reliability, safety, and efficiency. This is especially true since circuit breakers come in many variants, each designed for a specific application.

This guide will help buyers understand the different types of electrical breaker boxes and other features, for that matter, to ensure that bulk orders satisfy the end user's needs.

Differences between automatic and manual circuit breakers

Manual circuit breakers are operated by an individual. The breaker must be switched off or reset after a fault. Automatic circuit breakers do not require manual operation. They reset after a fault was corrected and provide automatic protection.

Differences between MCB, MCCB, and ELCB circuit breakers

• MCB (Miniature Circuit Breaker): This is automatically tripping incase of an overload or short circuit. It is usually designed for low voltage operations.
• MCCB (Molded Case Circuit Breaker): This is a more complex case where it is designed to handle larger currents than an MCB. It also comes with an adjustable trip setting for added flexibility.
• ELCB (Earth Leakage Circuit Breaker): Unlike the other two circuit breakers, this one protects against earth faults or leakages, which is why it is often used in installations with a higher safety concern.

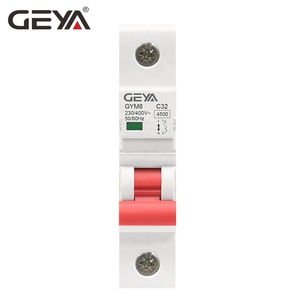

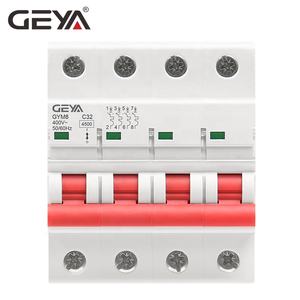

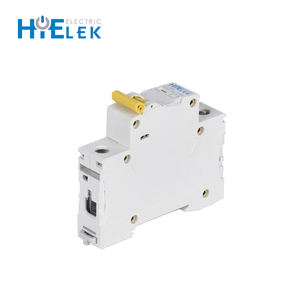

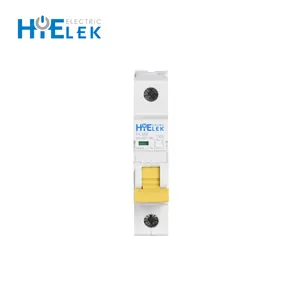

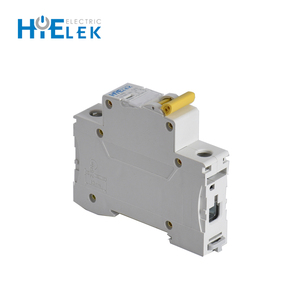

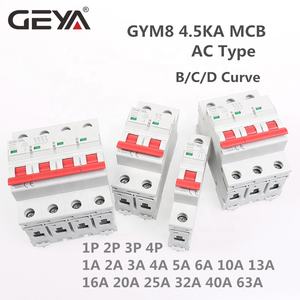

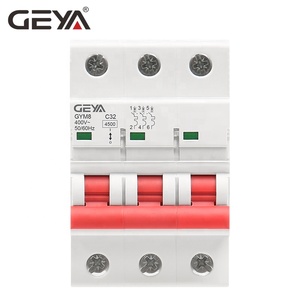

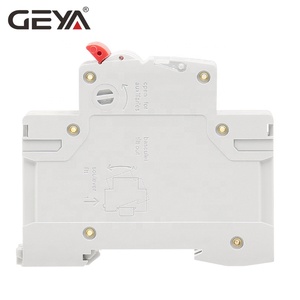

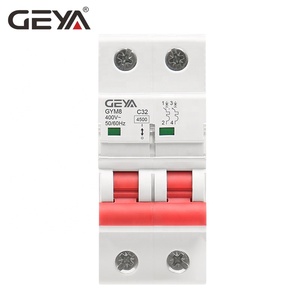

MCB (mini circuit breaker)

Mini circuit breakers are the most common type of circuit breaker. These electrical breaker panels are designed to restore current through automatic means when they sense an overload.

The main functions of the MCB include:

• Overcurrent protection: This protects electrical circuits from exceeding current levels, which may cause damage.
• Automatic disconnection: When this circuit breaker detects a fault, it will automatically disconnect the circuit, which will prevent damage.
• Reset capability: MCB can easily be reset once power is restored.

MCCB (molded case circuit breaker)

The MCCB is designed to protect electrical systems from higher currents. Unlike MCB, which cannot handle large electrical loads, MCCB can provide protection against overcurrent.

Some key features include:

• Adjustable trip settings: Adjusting the trip settings allows flexibility in protecting different load conditions.
• Variable current ratings: MCCB be available in various current ratings for different commercial and industrial applications.
• Thermal-magnetic operation: This allows them to provide both overload and short circuit protection.

ELCB (earth leakage circuit breaker)

This circuit breaker protects against Earth faults and current leaks. It is mostly used in wiring systems where much concern for safety has to be observed, such as hospitals, power stations, and manufacturing plants.

ELCBs are classified into two types:

• Voltage Earth Leakage Circuit Breakers (V ELCBs): They detect voltage and thus disconnect the circuit when they sense a fault condition. They are generally used in older installations.
• Current Earth Leakage Circuit Breakers (C ELCBs): They are more commonly used than VELCB. They detect current fluctuations between live conductors and earth and thus disconnect the circuit when it is unbalanced.

Important features of electrical circuit breakers

Safety and Protection

Safety is the main reason to use circuit breakers since they help prevent electrical fires, equipment damage, and electric shocks. In short, circuit breakers are the first line of defense in electrical safety.

Overcurrent Protection

One important feature of circuit breakers is overcurrent protection. It is meant to prevent situations of overload whereby the current exceeds the maximum capacity of a circuit.

Remember that this overcurrent happens when too much electrical equipment is connected to a single circuit power or when electrical appliances draw more power than the circuit can handle.

Short Circuit Protection

Short circuits are some of the most dangerous electrical faults. This is because they cause explosive sparks and fire. Circuit breakers are designed to protect against this by detecting them quickly and tripping to be safe.

Ground Fault Protection

Another common electrical fault in commercial and residential establishments is ground fault. What makes it dangerous is that it presents the potential for electric shock and fire. However, there are circuit breakers like ELCBs and GFCls that detect grounding faults and interrupt current to the circuit immediately.

Modular Design

This feature of circuit breakers allows their components to be easily replaced, thus saving time and making maintenance cheaper.

Communication Capabilities

Some modern circuit breakers have communication features which enable them to connect to other systems and help monitor their performance and status in real time.

Reliability and Durability

One important factor that affects the performance of circuit breakers is their ability to withstand frequent tripping and resetting. Circuit breakers are designed to be reliable in the protection they provide. Their housing is made from strong materials to protect internal components from damage due to environmental factors. The heat generated from electrical currents also influence the longevity of circuit breakers. This is because high temperatures can destroy not only the materials that make up the breaker but also affect its functionality. In addition, since breakers dip a lot of current, they are designed to sustain mechanical stress. For instance, metal alloys are often used to make the contacts, which wear down with time due to arcing. In essence, the materials selected for circuits aid in its performance and reliability.

Commercial uses of electrical circuit breakers

Protecting Expensive Equipment

In commercial settings, large machinery and equipment are widely used. When an overcurrent situation arises, it can damage such equipment. Fortunately, circuit breakers protect this overcurrent from happening.

Preventing Downtime and Losses

This additionally protects the circuit breakers from electrical fires, equipment damage, and electric shocks, which will totally interrupt business operations.

Ensuring Worker and Customer Safety

They safeguard against electrical hazards, which helps to minimize the risk of electric shocks, thus creating safer working environments for employees and customers.

Maintaining Regulatory Compliance

Most commercial activities must adhere to electrical codes and regulations. These are there to ensure safety standards, for example. Circuit breakers help businesses stay compliant with these regulations.

Supporting Critical Systems

In many commercial settings, really important systems like fire alarms, security systems, and emergency lighting keep working due to circuit breakers. Even a small power interruption can render these systems unreliable. Yet, by having circuit breakers support them, they give a peace of mind that these critical systems are protected and will always work even in an emergency.

Enabling Scalable Electrical Systems

With circuit breakers, it becomes easier for businesses to expand their electrical systems as they grow by simply adding more circuits. This modularity supports future scalability. This is the reason circuit breakers are essential for safeguarding not just the immediate interests of commercial clients but also their long-term operational efficiency, safety, and growth prospects.

How to choose electrical circuit breakers

Assess the electrical system's requirements

The first thing is to understand the voltage levels, current ratings, and overall power needs of the electrical systems. The circuit breakers must be the right size to handle these parameters.

Determine the protection type

Determine what kind of protection the system would need. Remember that MCBs are appropriate for low-voltage applications. On the other hand, MCCBs handle larger currents. Finally, ELCBs provide protection against ground faults and current leaks.

Choose the correct breaking capacity

Make sure the circuit breaker can withstand fault currents without failing. This is because the breaking capacity must be higher than the maximum expected short circuit current in the system at the worst scenario.

Check for regulatory compliance

Ensure the selected circuit breakers meet the necessary industry and national electrical standards. This is because these standards usually have requirements for performance, testing, and installation.

Evaluate the environment conditions

Assess the operating conditions of the environment, like temperatures, humidity levels, and dust. If there is rough operating condition, then go for circuit breakers designed for him, harsh environment to guarantee durability and reliability.

Consider future scalability

If there is a hope for business expansion in the future, ensure there is a modular circuit breaker system to scale easily. Again, the range of circuit breakers must ensure consistent performance during the system growth.

Q&A

Q1: What is the role of circuit breakers, and why are they important?

A1: Circuit breakers protect electrical systems from overcurrent, short circuits, and surge voltage. They help prevent electrical fires, equipment damage, and electric shocks. Basically, they are safety switches that will not allow a system to go beyond its limits.

Q2: How do circuit breakers differ from fuse?

A2: Unlike fuses, which will melt and require replacement, circuit breakers reset once the fault has been cleared. This is why circuit breakers are more efficient than fuses, which need to be replaced every so often.

Q3: How many circuit breakers are there?

A3: The commonly used circuit breakers include MCBs, which protect against overcurrent. While MCCB protects larger currents, ELCBs and RCDs protect against Earth faults and current leaks.

Q4: What factors affect circuit breaker selection?

A4: One main factor here is the operating voltage and current level. Breaking capacity is also another important factor, as well as protection type and environmental condition.

Q5: Do circuit breakers require regular maintenance?

A5: While circuit breakers are designed to be low maintenance, regular inspections and testing are required to ensure they perform effectively. Some circuit breakers may need periodic calibration.
