Using a cnc machine

Types of CNC Machines

A CNC machine is a computer-controlled device that can be used to create, cut, and engrave various types of materials. There are many uses for CNC machines, but the most common ones are:

• CNC routers: As the name implies, a CNC router machine uses a router to cut material, usually wood, but it can also be used on plastics and soft metals. It is designed to create a frosted effect on the surface of the wood on which it is used. CNC machines with routers can also carve and cut out shapes, designs, and patterns from wooden boards and other materials. The material to be cut is usually placed on a flat surface, and the machine's router then moves over the material to create the desired shape or design. A CNC wood machine can be programmed ahead of time using a digital file that contains the design to be created.
• CNC mill machines: The next type of CNC machine after a router is one that uses a mill to work with metals. A CNC mill machine works with metals like steel, aluminum, and titanium. Its work is to drill, cut, and grind the metal to form any shape from it. The machine can easily be used to create parts that have been manufactured earlier, as well as custom parts. Like the router machine, the mill machine can also be programmed using a digital file and is controlled by a computer. This makes it easier to create complex shapes and designs accurately, as well as with a high level of precision.

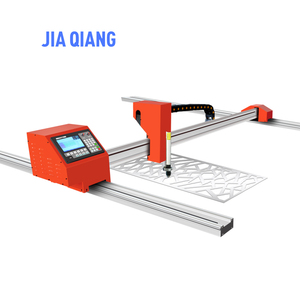

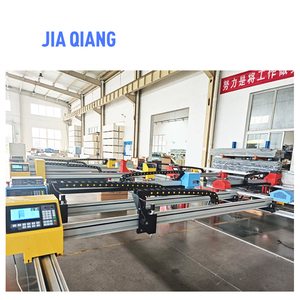

• CNC plasma cutting machines: Plasma cutting is a process that cuts through electrically conducting materials by using a plasma arc. Metal types that can be used with a plasma cutting machine include steel, stainless steel, aluminum, brass, and titanium. The plasma cutting machine works by first ionizing the air and then creating a plasma arc that moves at high speed. This plasma arc then passes over the metal material to be cut, and at a high temperature, it heats and melts the metal until it is cut.
• CNC laser cutting machine: A CNC laser cutter uses a laser to cut and engrave materials with a high level of accuracy and precision. Common materials that a CNC laser cutting machine works with are wood, acrylic, leather, metal, and glass. Like other CNC machines discussed earlier, a CNC laser cutter is controlled through a computer system and works by directing a laser beam onto the material to be cut or engraved. This beam then melts, burns, or vaporizes the material, thus creating the desired shape or design.

Specifications and maintenance of CNC machines

Specifications

• Machine Materials: High-strength cast iron or similar material is frequently used for the bed and column of a CNC machine to provide stability and dampen vibrations during machining processes.

  Control System: The control system typically uses a numerical control (NC) or computer numerical control (CNC) system for machining. Common CNC control systems include FANUC, Siemens, GSK, etc. These systems usually have a user-friendly interface that allows operators to program machining instructions through dialogue or visual programming. GSK CNC system usually has a range of high-speed, precise, and powerful features. They may include optional modules such as avatar module, dialogue module, integrated PLC, etc., for different application needs to achieve intelligent and flexible machine control. The Siemens Control System is mainly used in industrial control. Machinery powered by the Siemens CNC system will be equipped with Siemens servo motors and Siemens integration modules, which have distinctively rationalized Control and drive functions under one roof. FANUC is a world leader in CNC technology and a pioneer in digital servo motors. It offers a full line of reliable, accurate motors and drives."

• Servo System:

  A CNC machine's servo motors and drives are responsible for moving the machine parts at high speed and precision. These may be intergraded directly, like a CNC plasma table machine or via belts, lead screws, or direct drive for a CNC wood router machine where the spindle needs to be light core heavy.

• Spindle:

  The spindle is the part of the CNC machine that holds the cutting tool. It is responsible for cutting, drilling, and milling materials. The spindle's speed and torque are critical factors that determine the machine's ability to handle different materials and cutting operations. The spindle in a CNC machine is a high-speed rotating part. It holds and drives the tool to process the workpiece. CNC spindles are usually installed horizontally or vertically. Vertical CNC spindles are the main parts of CNC machining centers and routers. Many types of spindles are available, such as air-cooled spindles that use air to cool the bearings and water-cooled ones that use water for cooling." An air-cooled spindle is a rotating component whose primary function is to hold and drive the cutting tool. There are both integral motor spindles (which have the motor built into the spindle itself) and direct drive spindles (that directly drive the spindle with no belts or gears in between. The motor and drive unit may be separate or fully integrated).

  • Direct Drive:

    A direct drive spindle means that the motor directly drives the spindle with no belts or gears in between. A direct drive spindle may be belt driven or a direct drive itself. The goal is to provide a lightweight and high-performance rotation for the cutting tool to achieve better accuracy, lower noise, and higher efficiency. This ensures that the spindle can provide more direct power and speed for the machining process to improve machining accuracy and efficiency.

  • Belt driven:

    A belt-driven spindle uses a belt to transfer power and speed from the motor to the spindle. This kind of system may offer higher torque and speeds, giving the technician more flexible choices to meet various machining needs.

• Other Parts:

  A CNC machine also has many other components, like linear guides, carriages, belts, timing pulleys, and lock nuts, that enable the moving parts to move smoothly and precisely regardless of the speed of movement. Other machine parts include the cutting tools used in CNC machining, such as drill bits, milling cutters, saw blades, and more, which are determined by the material being machined.

Maintenance

Like all machines, a CNC machine needs maintenance to keep performing its best.

• Regular software updates:

  Please ensure that the control system software is updated regularly so that the machine can enjoy the newest features and performance.

• Backup data regularly:

  It is essential to back up the machining programs and parameters stored in the system regularly. This can prevent data loss and facilitate restoring the machine to its proper state in case of an emergency.

• Check network connections:

  When a CNC machine is connected to a network, it is necessary to ensure that the network cables and routers are properly connected. Firewall settings should also be checked to ensure that the machine can access the required resources.

• Check tool life:

  When using tool change systems in CNC machining, please ensure that the tools are replaced or maintained per their lifespans. This can ensure machining accuracy and efficiency.

Scenarios of using a CNC machine

Here are some common scenarios that show what people or businesses use a CNC machine for:

• When making products in large amounts

  A wood CNC machine helps meet the demand by producing many identical pieces efficiently. One common example is a furniture CNC machine that can repeat one furniture design thousands of times without making any mistakes. This saves a lot of time and money compared to having people do it by hand.

• When increasing precision is important

  CNC machines have advanced control systems that allow them to create highly detailed and accurate pieces. For example, a wood sign CNC machine can carve signs with lettering and patterns so small only a computer can do it that precisely. This high precision enhances the overall quality of products, making them better for the business to sell.

• When creating complex shapes is needed

  A CNC machine can cut materials in ways that are too complicated for people to do by hand. It can also repeat those cuts exactly every time. This means the machines can carve shapes that have many curves or angles, like intricate decorative patterns or designs with multiple notches. One item a business might create using a CNC is furniture pieces that come with maze-like designs.

• When working with different materials

  CNC machines work with many different kinds of materials, from softwoods to metals like aluminum or even plastics. With all the different things it can manage, companies can use just one machine for all their cutting and carving needs, no matter what material they're using, which makes things easier to set up and run.

• When speeding up production is necessary

  A CNC machine automatically cuts and carves materials. This speeds up product creation considerably compared to hand-making pieces. The automation reduces the time spent on each item. Running a CNC machine is also more efficient than having a lot of workers create the same thing. All this makes for a simpler production process with faster output and fewer people needed to deliver it.

• When increasing product consistency is key

  An'tCNC machine ensures the same quality and level of precision in all pieces it creates. This is still true even if it is set to change its cut patterns or the material is different. So go well beyond what people can usually make and greatly improve all the things made to have.

• When reducing labor costs is crucial

  A CNC machine can do many of the jobs usually done by a large workforce. Smaller teams, or even just one or two people, can run the machine and handle all the materials going through it. Because it uses so few workers and relies on automation and computers, running costs for labor drop significantly compared to methods requiring many people to cut and carve materials.

How to choose a CNC machine

There's no one-size-fits-all approach to choosing a CNC machine. Many factors come into play, such as the business's nature, the designs one hopes to make, and the material one plans to work with. This can range from wood and plastic to metal and glass. Another thing to look into is whether the business requires a laser CNC machine for more precise cutting or a plasma CNC machine for robust materials that may require more significant, more rugged cutting techniques.

The typical things to choose when selecting a CNC machine for sale include the controller, the size, the number of axes, the feedback loop, the drive system and the spindle.

• Controller: CNC machines are typically run using various computer numerated controllers. The controller in question will determine the kind of project that can be successfully completed using the machine in question.
• Size: The physical size and cutting area are also crucial considerations when choosing a CNC machine. Look for a model that offers a cutting area that matches the dimensions of the material to be used for work.
• Number of axes: The most common CNC machines are usually configured with three primary axes—X, Y, and Z. However, more advanced models may feature additional rotary A and B axes as well. These additional axes provide greater flexibility and enable the machine to accomplish more complex tasks, which, in turn, facilitates the creation of intricate designs and cuts that would otherwise be impossible to achieve with a standard three-axis configuration.
• Feedback loop: This ensures the machine's position and helps avoid errors, thereby improving accuracy.
• Drive system: The drive system is what translates the machine's commands into movement. This system is responsible for positioning the CNC machine's cutting tool or workpiece with high levels of accuracy and precision. Several options are available for the drive system, including rack and pinion, lead screw, and linear motor configurations. Each of these choices possesses distinct characteristics that make it suitable for particular applications and use cases.
• Spindle: A spindle is a machine tool that rotates and drives the cutting tool. Selecting the right spindle is crucial because it affects the types of materials and projects one can work on.

Using a cnc machine Q and A

Q1. What materials can be used with a CNC machine?

A1. CNC machines can be used with various materials such as wood,MVC, wood metal, plastic, foam, metal, glass, and composite materials. Nonetheless, the choice of material will depend on the CNC machine's type, design, capabilities, and specifications.

Q2. What is the maximum size a CNC machine can handle?

A2. The maximum size a CNC machine can handle depends on its model and makes. Typically, most CNC machines can handle materials that are about 5 to 6 feet long.

Q3. How thick of a material can a CNC machine cut?

A3. The maximum thickness a CNC machine can cut depends on the machine's type and size and the cutting tool attached to the CNC machine. For instance, laser CNC machines can slice materials up to 12 inches thick. On the other hand, Laser CNC machines are suited for slicing thin materials of about 0.1 to 5 inches.

Q4. Can a CNC machine cut complex shapes and designs?

A4. Yes, one of the main advantages of CNC machines is the ability to cut complex shapes and designs with great precision.
