About variable resistor slide type

Types of variable resistors

Slide variable resistors

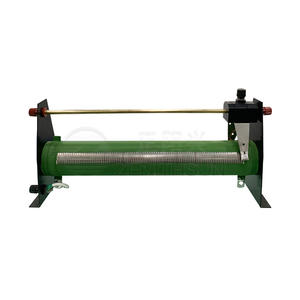

Slide variable resistors, also known as slide rheostats or slide potentiometers, offer a linear control mechanism for adjusting resistance. These resistors enable a variable resistance to be obtained by controlling the position of a conductive slider moving over resistive tracks.

Slide variable resistors are often utilized in audio mixers, control panels, and other equipment where fine control of resistance is necessary. Their linear motion is simple and easy to understand.

Rotary variable resistors

Rotary variable resistors, often known as rotary rheostats or rotary potentiometers, adjust resistance by rotating a knob or shaft. A rotary variable resistor's resistive element is shaped like a circular arc, and the contact arm or wiper makes a rotation along this arc line.

This type of variable resistor is mostly applied in audio equipment, volume controls, tuning circuits, and many other applications requiring smooth and regular resistance changes.

Digital variable resistors

Digital variable resistors, known as digital potentiometers, allow resistance to be adjusted electronically through digital signals. These components are designed to be controlled through communication interfaces like SPI or I2C.

Digital variable resistors are currently applied to modern electronic devices and systems where resistance values need to be adjusted dynamically and precisely, especially with microcontrollers or digital circuits.

What to consider when installing variable resistors

Equipment collaboration

Variable resistors must be compatible with the equipment they will be used with. The resistance range and power ratings should meet the equipment specifications or performance criteria.

Load and power ratings

The variable resistor's power rating must be at least as high as, or higher than, the maximum power that may be dissipated across it in a given application. Excessive power would damage the resistor and other equipment, resulting in safety risks.

Environmental issues

Variable resistors are installed by considering the operating conditions, such as temperature, humidity, and environmental contaminants. These conditions affect resistor type selection for optimal resistance performance over time.

Installation area

The area where variable resistors are installed also matters. Accessibility and available space for installation and maintenance are critical. Some resistors may need to be installed in more difficult areas.

Calibration and adjustment

Many variable resistors require calibration and regular maintenance to ensure desired resistance is achieved. Users must know how to adjust these resistors correctly without damaging them.

Features of variable resistors

Precision

Variable resistors allow detailed and fine adjustment of resistance values for precise applications.

Sensitivity

Variable resistors can detect and respond to very small changes in electrical resistance or other quantities, making them suitable for sensitive measurement systems.

Linearity

Many types of variable resistors, particularly linear potentiometers, have a linear relationship between the adjustment mechanism (like movement or rotation) and resistance change. This means that the resistance changes proportionally and consistently with each slight adjustment of the variable resistor. This property is particularly important in applications where consistent, predictable response is required, such as in audio equipment or precision control systems.

Robustness

Variable resistors are designed to operate reliably in various environmental conditions and under stress. For example, wirewound and carbon variable resistors may be applied in extreme conditions. Also, certain configurations of variable resistors, such as digital ones, are designed to work in extreme operating conditions or environments, offering durability and reliability under harsh conditions, including temperature variations and exposure to dust.

Tolerance

Variable resistors have a specified resistance range (tolerance), indicating deviation from nominal resistance. Lower tolerance corresponds to precision needs. They also have temperature coefficients that determine resistance changes with temperature variations.

How to choose variable resistors

Temperature coefficient

Variable resistor sliders are normally chosen based on their temperature coefficient. The temperature coefficient measures how much resistance changes in response to temperature changes. A lower temperature coefficient means that the resistor will maintain its resistance value even when the temperature changes.

Resistance material

The resistance material used in variable resistors significantly impacts their performance, durability, and cost. Common resistance materials include:

  • Nickel chrome alloy: This alloy is applied where high-temperature resistance is needed. Chrome provides excellent corrosion resistance; nickel gives strength and elasticity at elevated temperatures.
  • Carbon composition: Carbon composition is a cost-effective solution. Carbon patties mixed with a polymer form resistance, used widely in low-power applications where cost is a dominant factor.
  • Wirewound: Wirewound resistors are constructed by winding metal wire, usually nickel or copper, around a ceramic or fiberglass core. They have high precision, stability, and are suitable for high power.

Power rating

The power rating or power dissipation of variable resistors is another important factor to consider. This rating shows how much electrical power a variable resistor can handle before it overheats and gets damaged. For example, in equipment where high power is concentrated, resistor sliders with high power ratings should be used. But, in low-power equipment, low-power variable resistors are fine to use.

Operating range

Operating range is another key factor in selecting the correct variable resistor. This refers to the expected range of resistance values. One must select a variable resistor while considering both the minimum and maximum resistance values it should handle in a given application. Hence, a variable resistor is selected from comparable operating ranges to ensure effective performance throughout the desired range without exceeding limits.

Q&A

Q1: Which factors affect the resistance of variable resistors?

A1: Several factors affect the resistance of variable resistors. These include the type of variable resistor in use—sliding, rotary, or digital, the material used to make the resistance element, and the temperature around the variable resistor.

Q2: What is the role of variable resistors in electronic circuits?

A2: In electronic circuits, variable resistors play a vital role in controlling current flow, voltage distribution, and signal intensity. They adjust resistance to control these parameters within specified ranges, customizing circuit behavior for specific functions and needs.

Q3: Do variable resistors self-correct?

A3: Some variable resistors can self-correct, especially those with feedback mechanisms or smart technologies. These resistors automatically adjust their resistance to maintain desired electrical conditions. For example, digital variable resistors in precision applications often incorporate sensors and control logic that continuously monitor and adjust the resistance to stay within specified targets.

Q4: How do variable resistors affect circuit stability?

A4: Variable resistors impact stability by moderating the fluctuations in current and voltage within the circuit. They serve as dampeners, reducing changes and helping the circuit reach a steady state.

Q5: What are the maintenance requirements for digital variable resistors?

A5: Digital variable resistors require low maintenance compared to analog ones. However, they need proper care and protection from electrical noise, surges, and environmental conditions.
