Vertical dynamic balancing machines are among the most popular balancing equipment because they are highly accurate and can measure the effect of imbalances in rotating elements in two orthogonal motion-shaping planes. There are different types that perform the balancing processes in unique ways.
Some of the main vertical dynamic balancing machine types include the following vertical and Horizontal dynamic balancing machine types:

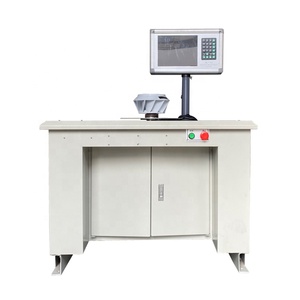

A vertical dynamic balancing machine balances workpieces in a vertical position. The spindle holds the rotating part while it turns to measure vibrations as it spins. Most users prefer the vertical machines for smaller workpieces, as their weights do not require much support.
Horizontal dynamic balancing machines balance workpieces in a horizontal position. The design has the spindle laid out straight, which makes it easier to balance larger and heavier parts. Users prefer horizontal machines for balancing shafts, rotors, and fans because of their huge size.
Hard-bearing dynamic balancing machines use steel or hard ceramic materials for the support bearings. These bearings have very little elasticity, which makes them suitable for precision balancing in factories.
Soft-bearing machines, also known as vibration dynamic balancing machines, use low-friction bearings with more elastic parts. The bearings dampen vibrations, making the machines cheaper and portable. Although they have less precision, users take them to many balancing jobs remotely.
These machines measure imbalances in two planes, usually at 90-degree angles to each other. The two-plane balancing machines offer more precise results for complex parts that need balancing in two directions, such as rotors or fans. In contrast, one-plane machines balance simpler parts that rotate in a fixed orientation, such as pulleys.
Single-plane dynamic balancing machines balance parts in one plane only. These machines are simpler and cheaper. Their balancing results are lower compared to those of two-plane machines. However, for simple parts that do not require precise balancing, users consider single-plane machines an excellent economical option.
Digital dynamic balancing machines use sensors to take readings, then process the data with computers to show results on screens. The digital machines can save data for later checks. They are more accurate than the older analog machines that take balancing readings directly on mechanical dials.
Vertical dynamic balancing machines come with some of the following important features:
Vertical dynamic balancing machines have vibration sensors that measure how much an object shakes when spinning. It then uses the vibration data to figure out where the weight imbalances are located. Most of the new machines have two sensors, one on each side, that can detect vibrations in different directions.
The sensors send the shaking data to a computer processing unit, or DPU. The DPU analyzes the data and shows the balancing results on a screen. It can also store past tests and help the user run the machine. Older machines did not have a DPU and manual math was needed, which took longer and was messier.
This system controls how fast the machine spins the item being balanced. It enables the user to change the speed easily. The system spins the object at different speeds during testing, which helps find very tiny imbalances that may be missed at just one speed. Without speed control, the machine would have to be manually adjusted, which was difficult.
The objects being balanced sit in a vertical position so any shaking rolls more to one side than the other. This makes it easier to see shakes and vibrations compared to if the item was spinning flat.
Vertical dynamic balancing machines have movable supports that hold the item being balanced in the right spots. The supports can slide to different positions to balance long or short parts. The adjustable supports hold the object very still so tiny shakes can be accurately measured.
The measuring shaft spins the object being balanced and sends data to the computer about any vibrations. It has tiny sensors inside that detect movements.
The balancing results appear on a large display screen. The display shows adjustments needed to fix imbalances. The results come up fast, so users do not have to wait long to see them.
Vertical dynamic balancing machines are important industrial tools in many areas. Some of these areas include:
Vertical dynamic balancing machines balance parts like rotors, shafts, fans, and impellers that spin in engines or machines. Balancing these moving parts helps reduce vibrations so they run smoothly and last longer. When parts are unbalanced, they shake more. This causes wear and tear on not just the shaking part but also anything connected to it. Auto experts use these machines to balance parts in cars and planes.
These machines help make equipment work better by keeping rotating parts balanced. This reduces vibrations, which can cause damage over time if not addressed. With smooth spinning parts, dynamic balancing machines help prevent breakdowns and the need for costly repairs down the road. They also aid factories in scheduling maintenance at the right times by helping parts last longer. This machine is key for companies looking to reduce downtime and avoid unexpected equipment failures.
Imbalance parts waste energy by causing excess vibrations. The excess shaking makes motors and other parts work harder than needed. This drains more electricity and fuel, increasing operating costs. Keeping parts balanced means everything uses less power to do the same job. Businesses see lower utility bills as a result, which is important with energy prices. Even small savings on energy add up for large operations.
The machine smooths out how parts move, reducing stress on bearings, gears, and other components. This prevents wear and tear from excess shaking. With less strain on all the moving parts, entire systems last much longer. Factories see a return on investment just in how many fewer replacements are needed over time. It takes decades for some systems to pay for themselves in extended life.
The mass production of larger quantities of industrial items makes it require large and efficient machines to do the product balancing quickly. Vertical dynamic balancing machines can do this balancing work fast and reliably, helping to make many balanced parts without slowing down other factory tasks.
Users also do balancing in maintenance routines to keep machines from vibrating too much and causing damage. It is cheaper and easier to fix balanced parts than repairing or replacing worn-out parts. In machine maintenance, they use dynamic balancing machines to check for imbalance and fix any problems, making the machines last longer and work best.
Following a certain strategy when selecting vertical dynamic balancing machines can help business owners source strategy machine and enjoy various benefits.
Here are criteria owners can use to select vertical dynamic balancing machines:
People should first consider the types of products the machines will be balancing. Since vertical machines perform product balancing while in a vertical position, they are most suited for small and cylindrical products. Vertical dynamic balancing machines are ideal for balanced products with a small diameter. Hence, people using these machines for shafts, rotors, and large impellers may have to use horizontal or special dynamic balancing machines for their products.
Users should consider what precision their products require. Sensor precision, measurement error, and speed accuracy determine how precise the product balance results will be. Choosing a machine with good sensors can provide the required precision. Large displays also help to balance precise products.
People should consider the allowable range of rotational speeds and the maximum load that can be balanced in the machine. Those balancing shafts with much power require machines that can give high speeds and are built to carry heavy loads.
Businesses should consider whether they require one-plane or two-plane balancing. Machines that balance in two planes give more detailed and precise results and are more suitable for complicated products. One-plane balancing is simpler and cheaper. Only use one-plane or two-plane balancing according to the complexity of the product to be balanced.
People should check the data processing capabilities of the machine. Machines with advanced data processing units are more accurate and can store results for future reference. Real-time result displays are also very helpful to the users. They enable them to make corrections immediately.
Portability and installation depend on the space and facilities available. Some machines are compact and easy to move around. Others are bigger and more complicated. Consider installing them in new spaces. Practical transportation and installation methods affect the final decision.
People should consider if they need extra features such as different speed settings, automated correction, or wireless data transfer. Extra features improve balancing accuracy and efficiency but may raise the cost. Choose only the add-ons that are necessary for the balancing needs of the business.
A1: The main aim of vertical dynamic balancing machines is to eliminate vibrations in rotating products. When tasks are performed smoothly, customers derive satisfaction. Balanced products also wear less, reducing the cost of repairs and increasing the lifespan of the products. Customers benefit from less noise and energy usage as there are fewer vibrations.
A2: Vertical dynamic balancing is done during manufacturing, normal machine maintenance, and after an accident. One of the common mistakes people make is choosing machines without fully understanding their balancing needs and the features of the machine. Balancing what the machine was not built for will yield disastrous results. Ignoring practicality is another mistake. Machines that functionally balance are often larger. So, it is practical to ignore the space necessary for the machines. This leads to many inconveniences.
A3: Vertical dynamic balancing machines do not have many maintenance requirements, but the user must be vigilant and consistent. Daily checks can eliminate many problems. Care must be taken not to damage the sensitive sensors. Lubrication of the bearings and regular cleaning enhances the motion. Software updates also help the machines to be more efficient. Watching out for worn parts in normal working conditions extends the life of many vertical dynamic balancing machines.
A4: Vertical dynamic balancing machines do not require a lot of maintenance, so people likened them to cats. Cats are independent creatures that do not require a lot of work from their owners, yet they require a little work and care. Cows are another low-maintenance machinery analogy. Cows don't require many routines, but the owners must be consistent and vigilant.
