Types of VVT (Variable Valve Timing) Solenoids

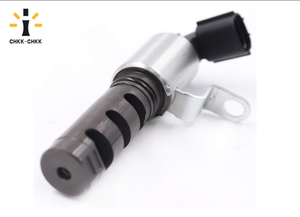

A VVT variable valve timing solenoid is a vital component in the Variable Valve Timing system found in modern internal combustion engines. This technology allows for dynamic adjustment of the engine's intake and exhaust valve timing to improve performance, fuel efficiency, and emissions control. The solenoid operates by regulating the flow of engine oil to the camshaft phaser or actuator, enabling precise adjustments based on real-time driving conditions and ECU inputs.
The VVT solenoid comes in various configurations depending on the manufacturer and specific system design. Below are some of the most common types used across different automotive brands:
VVTi (Variable Valve Timing Intelligent)
Developed by Toyota and Lexus, the VVTi system employs an electromagnetic coil-driven solenoid that controls oil flow to the camshaft phaser. It adjusts valve timing dynamically based on driving conditions such as engine speed, load, and temperature.
Advantages
- Improved fuel economy
- Enhanced low-end torque
- Smaller emissions footprint
- Smooth operation across RPM range
Limitations
- Susceptible to oil sludge buildup
- Potential for failure if oil maintenance is neglected
- Limited adjustability compared to more advanced systems
Best for: Daily commuting, hybrid applications, and vehicles prioritizing fuel efficiency
VTEC (Variable Valve Timing and Lift Electronic Control)
Honda’s VTEC system is renowned for its dual-purpose functionality, offering both fuel efficiency at low RPM and high-performance output at higher RPMs through hydraulic actuation of additional rocker arms.
Advantages
- Exceptional power delivery at high RPMs
- Balanced fuel efficiency and performance
- Reliable mechanical design
- Well-suited for sporty driving dynamics
Limitations
- Noticeable shift in engine behavior during VTEC engagement
- More complex maintenance procedures
- Higher sensitivity to oil quality and pressure
Best for: Enthusiast drivers, sports cars, and those seeking a responsive driving experience
MultiAir
Fiat's MultiAir system represents a more advanced approach to variable valve timing by using electro-hydraulic actuators to precisely control intake valve lift and timing independently of the exhaust valves. This provides greater flexibility in managing the air-fuel mixture.
Advantages
- Highly responsive throttle
- Superior fuel efficiency and emissions reduction
- Independent control over intake valve timing and lift
- Optimized combustion efficiency
Limitations
- Complex system architecture increases repair costs
- Requires specialized diagnostic tools
- Less widespread adoption than VVTi or VTEC
Best for: Turbocharged engines, downsized powerplants, and eco-friendly performance vehicles
| Type | Technology | Primary Benefit | Typical Application | Maintenance Consideration |
|---|---|---|---|---|
| VVTi | Electromagnetic Oil-Control Solenoid | Fuel Efficiency & Smooth Operation | Toyota, Lexus, Hybrid Vehicles | Regular oil changes critical |
| VTEC | Hydraulic Rocker Arm Engagement | Performance at High RPM | Honda Civic Si, S2000, Integra | Oil pressure and quality monitoring important |
| MultiAir | Electro-Hydraulic Valve Actuation | Throttle Response & Emissions Reduction | Fiat, Alfa Romeo, Mopar Engines | Specialized diagnostics required |
Expert Tip: Regular maintenance, especially timely oil changes with OEM-approved fluids, significantly extends the life of VVT solenoids. Faulty solenoids often trigger check engine lights or cause reduced fuel efficiency and poor engine response – early diagnosis can prevent costly repairs.
Specifications and Maintenance of VVT (Variable Valve Timing) Solenoid
Key Specifications of the VVT Solenoid
The VVT solenoid is a critical component in modern engine systems that allows for dynamic adjustment of valve timing to improve performance, fuel efficiency, and emissions control. Understanding its specifications ensures proper operation and compatibility with your vehicle’s engine system.
Flow Capacity
The flow capacity determines how much oil or hydraulic fluid can pass through the solenoid at a given time. A higher flow capacity enables more efficient pressure regulation, which is crucial for maintaining precise valve timing under varying engine loads.
Insufficient flow can lead to delayed or inconsistent valve adjustments, negatively affecting engine responsiveness and fuel economy.
Voltage Requirements
VVT solenoids are electromechanical components that rely on electrical signals from the Engine Control Unit (ECU). Most vehicles operate their VVT solenoids on a standard 12-volt system, although some heavy-duty or high-performance engines may require 24 volts for optimal actuation.
Ensuring the correct voltage supply is essential for consistent solenoid performance and preventing premature failure due to under- or over-voltage conditions.
Pressure Rating
VVT solenoids regulate oil pressure to control the phaser mechanism that adjusts camshaft timing. The pressure rating—typically measured in PSI or bar—determines the solenoid's ability to manage the required hydraulic force without leaking or failing.
Exceeding or falling short of the specified pressure range can result in improper valve timing, reduced engine efficiency, or mechanical damage to the cam phaser system.
Temperature Tolerance
VVT solenoids must function reliably across a wide temperature range, typically from -40°C to 150°C (-40°F to 302°F), depending on the manufacturer and application.
This specification reflects the solenoid’s durability in extreme operating environments, such as cold starts or prolonged high-speed driving, where thermal stress is common.
| Specification | Importance | Selection Tips |
|---|---|---|
| Flow Capacity | High | Choose a solenoid with matching or slightly higher flow rate than OEM specs to ensure smooth operation under all driving conditions. |
| Voltage Compatibility | High | Always verify the electrical system voltage of your vehicle before replacing the VVT solenoid to avoid compatibility issues. |
| Pressure Rating | Medium-High | Select a solenoid rated for the specific pressure requirements of your engine’s VVT system to prevent leakage or inefficiency. |
| Operating Temperature Range | Medium | Opt for solenoids designed for extended temperature ranges if your vehicle operates in extreme climates or under heavy load conditions. |
Essential Maintenance Practices for the VVT Solenoid
Proper maintenance of the VVT solenoid ensures long-term reliability, optimal engine performance, and compliance with emission standards:
Important: Always replace the VVT solenoid with an OEM or high-quality aftermarket part that meets or exceeds original equipment specifications. Using substandard parts can compromise engine performance and void warranties.
How to Choose a VVT (Variable Valve Timing) Solenoid
Selecting the right Variable Valve Timing (VVT) solenoid is crucial for ensuring optimal engine performance, fuel efficiency, and compatibility with modern automotive technologies. Whether you're a parts supplier or technician, understanding key selection criteria will help you make informed decisions that satisfy customer needs and maintain vehicle reliability.
Understand Customer Needs
Every customer has unique expectations from their vehicle's performance. Some may seek improved acceleration and responsiveness, while others prioritize fuel economy and emissions reduction. Identifying these priorities helps in selecting the appropriate VVT solenoid tailored to the desired outcome.
- Performance-focused drivers: May benefit from high-response VVT solenoids that allow precise timing adjustments under load.
- Fuel-conscious users: Require solenoids optimized for steady-state timing control to enhance combustion efficiency.
- Urban commuters: Might prefer durable solenoids designed for frequent stop-start cycles.
Insight: Ask specific questions about driving habits and vehicle usage before recommending a part.
Consider Vehicle Make and Model
VVT systems vary significantly across manufacturers and engine types. Toyota’s VVT-i system functions differently from Honda’s i-VTEC or BMW’s Valvetronic. Choosing a solenoid that matches the vehicle’s specific VVT architecture is essential for proper operation and longevity.
- Diesel engines often use different timing strategies than gasoline engines
- High-performance engines require faster-acting solenoids with tighter tolerances
- Compact cars typically use simpler VVT systems requiring cost-effective replacements
Recommendation: Always cross-reference OEM part numbers and vehicle specifications before purchase.
Quality and Reliability
VVT solenoids are precision-engineered components exposed to heat, oil, and electrical stress. Investing in quality ensures long-term reliability and reduces comebacks. Reputable brands adhere to strict manufacturing standards and offer better warranty coverage.
- Look for OE-quality construction materials and sealing
- Check for resistance to oil degradation and thermal cycling
- Verify compliance with industry certifications (e.g., ISO 9001)
- Review customer feedback and field performance data
Warning: Cheap imitations can cause check engine lights, poor idle, and reduced fuel economy.
Pricing Strategy
While price matters to customers, it shouldn't be the sole deciding factor. Balance affordability with value by offering multiple tiers of VVT solenoids—economy, standard, and premium—each clearly labeled with features and expected service life.
- Economy options: Suitable for budget-conscious customers needing short-term fixes
- Standard replacements: Match factory specs at reasonable prices
- Premium units: Offer extended warranties and enhanced durability
- Kit bundles: Include gaskets or related parts for added convenience
Tip: Educate customers on total cost of ownership vs. upfront savings.
Future-Proofing Insight: As hybrid and electric vehicles become more prevalent, consider stocking VVT solenoids compatible with hybrid engine platforms. Many modern hybrids still use internal combustion engines in conjunction with electric motors, maintaining relevance for VVT technology in the evolving automotive landscape.
| Customer Type | Ideal VVT Solenoid Features | Recommended Brand Tier | Expected Lifespan |
|---|---|---|---|
| Casual commuter | Factory-spec replacement | Standard | 50,000–80,000 miles |
| Performance enthusiast | High-flow, quick-response design | Premium | 60,000–100,000 miles |
| Commercial fleet operator | Durable seals, corrosion-resistant housing | Premium/Industrial | 70,000–120,000 miles |
| Budget-focused buyer | Basic functionality, simplified design | Economy | 30,000–50,000 miles |
DIY Guide to Replacing a VVT (Variable Valve Timing) Solenoid
The Variable Valve Timing (VVT) solenoid plays a crucial role in optimizing engine performance by controlling the timing of the intake and exhaust valves. A faulty VVT solenoid can lead to poor fuel economy, rough idling, or even check engine light warnings. Fortunately, replacing this component is often a straightforward DIY task for most modern vehicles.
VVT solenoids are typically located on the top of the engine or near the air intake manifold, making them relatively accessible without requiring major disassembly. However, it's always wise to consult your vehicle’s service manual before beginning work, as specific models may have unique configurations or torque specifications.
Safety Warning: Always disconnect the battery before working on electrical components. Ensure the engine is cool before starting, and wear protective gloves and eyewear to avoid injury from hot surfaces or fluid contact.
Essential Tools and Materials
- Screwdriver set (both flathead and Phillips)
- Metric socket wrench set
- Ratchet with extension
- Torque wrench (for precise bolt tightening)
- Shop or repair manual specific to your vehicle model
- New OEM or high-quality aftermarket VVT solenoid
- Clean rag or cloth for wiping connections
- Penetrating oil (if bolts are stuck due to corrosion)
Pro Tip: Before purchasing a new solenoid, double-check part compatibility using your vehicle identification number (VIN). Some VVT systems use different solenoids for intake and exhaust sides, so ensure you're getting the correct one for your application.
Step-by-Step Replacement Procedure
- Locate the VVT Solenoid
Refer to your vehicle manual to find the exact location of the VVT solenoid. Most commonly, it will be mounted directly on the cylinder head or camshaft housing. Look for a small cylindrical or rectangular unit with an electrical connector attached.
- Disconnect the Battery
To prevent any electrical shorts or damage to the ECU, disconnect the negative terminal of the battery before proceeding with the replacement.
- Remove the Electrical Connector
Gently press the release tab and pull the connector straight off. If it feels stuck, use a small flathead screwdriver to carefully depress the locking clip. Avoid pulling on the wires themselves.
- Unbolt the Old Solenoid
Use a socket wrench to remove the mounting bolts securing the solenoid. These are usually Torx or standard hex-head bolts. Keep track of all hardware, and consider applying a small amount of anti-seize compound to the threads of the new bolts during reinstallation.
- Install the New VVT Solenoid
Clean the mounting area thoroughly with a dry cloth to remove dirt or debris. Align the new solenoid and hand-tighten the bolts first. Then, use a torque wrench to tighten to the manufacturer’s specification—typically between 8–12 Nm depending on the make and model.
- Reconnect the Electrical Harness
Ensure the connector clicks into place securely. Double-check that all pins are properly seated and there are no bent terminals or moisture inside the connector housing.
- Test the System
Reconnect the battery and start the engine. Allow it to idle for several minutes while monitoring for unusual noises or warning lights. Use an OBD-II scanner to clear any existing codes and verify that the VVT system is functioning correctly.
| Common Symptoms of a Faulty VVT Solenoid | Possible Cause | Diagnostic Code | Recommended Fix |
|---|---|---|---|
| Rough idling or stalling at low RPMs | Improper valve timing due to solenoid failure | P0011, P0014 | Replace VVT solenoid and reset ECU |
| Decreased fuel efficiency | Inefficient combustion caused by incorrect valve timing | P0016, P0019 | Inspect VVT system and replace faulty components |
| Check Engine Light illuminated | ECU detects abnormal signal from VVT solenoid | P0021, P0024 | Scan for codes and address accordingly |
Maintenance Tip: Regularly inspecting and cleaning the VVT solenoid during routine maintenance can help extend its life. Also, using high-quality engine oil and changing it at recommended intervals helps prevent sludge buildup that can affect solenoid operation.
Variable Valve Timing (VVT) System - Frequently Asked Questions
The VVT (Variable Valve Timing) system is an advanced engine technology designed to enhance performance, fuel economy, and emissions control. This system dynamically adjusts the timing of the intake and exhaust valves based on real-time driving conditions such as engine speed, load, and temperature. By optimizing valve timing, VVT improves airflow efficiency into and out of the combustion chamber, resulting in smoother power delivery, increased fuel efficiency, and reduced harmful emissions.
Modern VVT systems can also work in conjunction with other technologies like variable valve lift (VVL) and direct fuel injection to further refine engine behavior across a wide range of operating conditions.
A malfunctioning VVT solenoid can significantly impact engine operation. Common indicators include:
- Check Engine Light (CEL): Often the first sign, the CEL illuminates when the vehicle's onboard diagnostic system detects an issue with the VVT system.
- Rough Idle or Hesitation: The engine may idle unevenly or hesitate during acceleration due to improper valve timing.
- Loss of Power: Reduced throttle response and overall engine performance are typical when the VVT solenoid isn't functioning correctly.
- Engine Noise: A ticking or rattling sound from the engine compartment may occur, especially at idle or low RPMs.
- Poor Fuel Economy: Inefficient valve timing leads to higher fuel consumption and decreased miles per gallon.
- Emissions Failures: Increased emissions levels may result in failing smog tests or triggering related diagnostic trouble codes.
- Error Codes: Modern vehicles often display specific VVT-related codes such as P0011, P0014, or similar.
While it is technically possible to operate a vehicle with a faulty VVT solenoid, doing so is not recommended for extended periods. Driving with this issue can lead to:
- Reduced engine responsiveness and drivability
- Increased fuel consumption and emissions output
- Potential damage to other engine components over time
- Failure to pass mandatory emissions inspections in regulated areas
If you experience any symptoms associated with a failing VVT solenoid, it’s best to have the system diagnosed and repaired promptly to avoid compounding issues and costly repairs down the road.
The cost of replacing a VVT solenoid depends on several variables including the vehicle make, model, whether you choose OEM or aftermarket parts, and labor rates in your area. Here's a general breakdown:
| Component | Estimated Cost Range | Notes |
|---|---|---|
| VVT Solenoid (OEM) | $100 – $500+ | Higher quality but more expensive than aftermarket options |
| VVT Solenoid (Aftermarket) | $50 – $200 | Cost-effective alternative with varying reliability |
| Labor Charges | $50 – $200 | Depends on vehicle complexity and shop hourly rate |
| VVT Sensor Replacement | $75 – $300 | Sometimes replaced alongside the solenoid |
Total replacement costs typically fall between $150 and $700, though high-end models or luxury vehicles may exceed these figures. Always request a detailed quote before approving repairs.
Replacing a VVT solenoid is considered a moderate to advanced-level DIY repair. Success largely depends on your mechanical skill level, familiarity with engine components, and access to proper tools. Key considerations include:
- Proper safety precautions when working around hot engines and fluids
- Draining engine oil (in some cases) to access the solenoid
- Correct torque specifications for reinstalling the new solenoid
- Clearing diagnostic codes after installation using an OBD-II scanner
It's highly recommended to consult the vehicle-specific service manual and follow manufacturer guidelines closely. If unsure about any step, seek assistance from a qualified mechanic to prevent potential engine damage or misdiagnosis.
