Xk7136c cnc milling machine

Types of XK7136C CNC Milling Machines

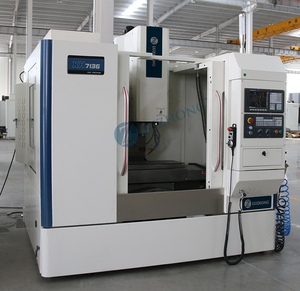

The Percy CNC milling machine XK7136C is a vertical CNC machine tool in which the spindle axis is vertical. When used for metal cutting, it is sometimes simply named CNC vertical milling machine or vertical CNC milling machine.

The XK CNC machine's frame is made of a cast iron box structure. The longitudinal displacement of the worktable is driven by a servo motor and a reduction box, achieving the functions of processing holes of different lengths. The cross feed is moved by a hand wheel, and its feed distance can be set by a dial. The vertical feeding is moved by its feeding plate, which can also be set its vertical distance appropriately. The 3-axis processing of this CNC milling machine for metal enables it to achieve complex cutting tasks with high precision. The notches can be customized for users to choose from according to the needs of different products in a fast and convenient way.

By installing additional devices on the machine, the XK7136C CNC milling machine can achieve more functions. For example, raster plates or T-slots can be machined by indentation and reverse grooves, gaskets, and flat plates by the face milling method, and T-slots by slotting. The operating frequency is an essential factor affecting the processing efficiency of CNC machines. The higher the frequency, the more functions it can process simultaneously. The CNC machine has a rigid spindle system that can clamp objects firmly, thus reducing the vibration of the workpiece when in operation and improving the accuracy of the final product and surface finish.

The feed speed can be as fast as 8000/min, and the spindle speed can be as fast as 40~3000r/min, which increases processing productivity.

There are also some mobile types of milling machines as part of the category, such as a 5-axis cnc milling machine, that are not just vertical but also other models. 7136 Horizontal CNC milling machines are more efficient and modern than the old-fashioned ways of milling. They also create a higher degree of accuracy and precision when it comes to cutting.

When XF7136ST CNC milling machines, gold CNC milling machines, and aluminum CNC milling machines are all included in the general definition of CNC milling machines, the distinctions between them are more significant.

Generally, CNC milling machines have an automatic tool change system.

From the early simple mechanical devices to the more modern, intelligent use of computers and technology, CNC Milling Machines have come a long way in the past.

Business buyers of machine tools look to invest in products that are durable, strong, technologically advanced, and intelligent. Those who are looking to buy should look for products that have quality standards corresponding to their special and exact needs, such as strength, precision, speed, and efficiency.

Specification & Maintenance

For the XK7136 CNC milling machine, the specifications will differ for the 7136A, B, and C versions. The following are general specifications when applying to all three kinds of models.

• Machine size: 1900/2000/1500
• Axis travel (X/Y/Z): The maximum axis travel may differ based on different machines from 900-1130 on the machine's X-axis, 360-1030 on the C axis, and 760-880 on the Z axis.
• Speed control: The spindle speed can vary according to models and versions. The spindle motor's speed is typically 1.5-2.2 kW, which the machine's control can determine.
• Bed T-slots: The diameter of the slots can vary by machine. For most models, the diameter is around 18 mm, with slot spacing of 150 mm and a depth of 50 mm.

Specific models of the CNC milling machine will be further explained below.

Specifications of the XK7136-A CNC Machining Center

• Overall size: 2500/1330/1400
• Main motor power: 3/3.75/4.5/5.5/7.5
• Spindle speed: variable speed 50-3000/6000

Specifications of the XK7136-B CNC Machining Center

• Overall size: 1900/1140/1700
• Main motor power: 3/3.75/4.5/5.5/7.5
• Spindle speed: variable speed 50-6000

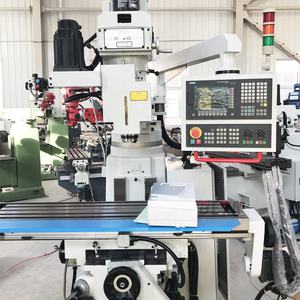

XK7136C CNC Milling Machine

XK7136C machine CNC has more modern specifications. It has a Siemens controller that may include the following more advanced specifications.

• Overall machine size: 2000/1250/1750
• Axis: The axis has the following maximum travel--X-axis: 1130, Y-axis: 380, Z-axis: 880.
• Spindle motor power: It is around 15 Hp with a speed of 50-6000. Motor: 15Hp/11kW Spindle speed: 50-6000r/min Torque : 6.46N.m
• Weight: Around 1400-1600 Kg

Maintenance

It is essential to keep the machine well-maintained so it will have a long life, be durable, and continue to perform well. The following parts of the 3D CNC machine need to be well-serviced with regular maintenance.

• Guides and Ball Screws: These two parts must be cleaned well and then oiled. The grease can be applied through a grease gun. The guides and ball screws must be kept free of any dust or debris. A small brush or lint-free clean towel can be used to remove any debris before applying the lube.
• Lubrication: Lubricate any components as required by the CNC machine manual instructions. The frictionless lube should be used on parts specified by the machine manufacturer. Usually, the oil will be specified when discussing the maintenance schedule and oil change intervals.
• Air Filter: The air filter needs to be inspected and cleaned based on the manufacturer's maintenance schedule. Usually, the filter can be cleaned with air pressure and a brush.
• Run Diagnostic Test: A diagnostic test should be performed on the CNC machine to ensure everything is working well. Double-check the operating settings and correct any errors that may have occurred in the machine's system.
• Check all fastenings: Before the machine is used, it is essential to check all screw fastenings and ensure the safety covers are well fastened. Any blocks, fixtures, or clamps must be checked for secure fastenings before use.

Scenarios of XK7136C CNC Milling Machines

CNC milling machines of varying types are quite popular in different industries. The scenarios where a CNC machine—either an XK7136C or any other model—can be useful are innumerable.

• Machinery Industry: CNC milling machines are used to make a wide range of parts for different types of machines. Everything from basic parts to complex portions with intricate features is made using CNC milling machines. Those parts are then used in gas and hydraulic pumps, lathes, press brakes, and even textile machinery.
• Automobile Industry: The automobile industry is very fond of CNC milling machines. They are extensively used in the CNC processing of frames, wheels, carburetors, engine covers, and many other auto components made of aluminum, steel, copper, plastic, etc.
• Spaces and Aircrafts: Components for the aerospace industry—aircrafts and spaceships—need to be made with the utmost precision. This is where CNC milling machines shine. The XK CNC machine can create lightweight yet super sturdy parts for aircraft and spacecraft, such as the wings, and other body parts.
• Medical Field: Custom parts like surgical instruments, prosthetics, and orthopedic devices can be made easily and quickly using CNC milling machines. The precise nature of a CNC machine means orthopedic devices are not only customized but are also made quickly and without any human error.
• Furniture Industry: The furniture industry uses CNC milling machines to make a variety of wooden, plastic, and metal furniture. Designs are created easily, curves are cut, and holes are drilled—CNC machines do all this with precision and perfect quality.
• Gift and Craft Industry: CNC machines are popular in the craft and gift industry. Jewelers use mini CNC machines to create intricate jewelry with detailed work that cannot be achieved with the human hand alone. Not only this, but the machine can also make clocks, customized gifts, trophies, etc.
• Packaging Industry: The packaging industry uses CNC to make different types of customized boxes. The machine cuts the cardboard and prints all the required details with precision. Furthermore, it does all this quickly very little manual effort.
• Electronics Industry: CNC milling machines are extensively employed in the realm of electronics for the purpose of fabricating intricate circuit boards and enclosures. These machines possess the capability to execute precision drilling and routing with exceptional accuracy, making it possible to create components equipped with minute apertures and elaborate topographies.

How to choose xk7136c cnc milling machine

Here's a brief guide for buyers on how to choose the right CNC milling machine for their projects.

• Project Requirements Analysis

  First, buyers should consider their project requirements. They should identify the types of materials they'll be working with and their maximum size and weight. Also, they should determine the level of precision and complexity of the parts they need to mill. Once buyers define their project requirements, it will be easier for them to choose a CNC milling machine that matches their needs.

• Control System

  The control system is what controls the machine's movements and operations. Buyers should choose a machine with an easy-to-use control system. They should also ensure that the system has the necessary features and capabilities to handle their specific milling tasks. A modern CNC milling machine will likely have a numerical control system with programmable software for automated precision machining.

• Spindle Power and Speed

  The spindle is the part of the machine that rotates the cutting tool. It is responsible for cutting the material of the workpiece. It needs to have enough power and speed to handle different milling operations. So, buyers should choose a CNC milling machine with sufficient spindle power and adjustable spindle speed to accommodate a variety of milling applications.

• Machine Size and Weight

  For those who have limited space in the workshop, it is ideal to select a machine with a compact design that will fit into the available space. However, despite being compact, the machine should have a sturdy build to ensure stability during operation. Additionally, if your project requires the milling of large and heavy workpieces, it is necessary to choose a machine with a larger size and weight capacity to support such materials.

• Budget Consideration

  ADecs buyers' needs and priorities have been established. It's time to consider their budget and what they can afford. Numerous configurations and price ranges of the CNC milling machine are available. Buyers should take the time to do research on different models to find the one that best matches their needs while remaining within their budget. They may also consider additional costs such as installation, maintenance, and operational expenses in the long run.

Cnc milling machine xk7136c Q & A

Q1: What benefits does a CNC milling machine have?

A1: CNC milling machines have many great advantages. They can accomplish many tasks like drilling, tapping, and boring simultaneously, saving time. The machines have computerised controls, ensuring efficient repeatability with excellent precision. Some advanced models come with automatic tool changers that allow for lasting production runs without stopping to change tools manually.

Q2: How long can a CNC machine mill continuously?

A2: CNC milling machines can operate continuously for 8 to 24 hours a day, depending on the model, because they have automated processes. Long continuous operation is possible. However, it is essential to consider tool wear, workpiece cooling, and machine limits. Most CNC machines can mill continuously for at least 8 to 12 hours without needing to shut down.

Q3: Can a CNC machine create complex shapes and designs?

A3: One of the main advantages of a CNC milling machine is its ability to create complex shapes and designs. The machine has computerised controls that allow it to create pieces with intricate patterns, precisely cut outlines, and complicated engravings with a high degree of precision and accuracy.

Q4: What are the most common materials used with a CNC milling machine?

A4: The most common materials used with a CNC milling machine are metals like aluminium, steel, brass, and copper; foam; wood; plastic; and composite materials.
